ag profile rollformer
Product Name:
ag profile rollformer
No. :
:
:

Product Description:

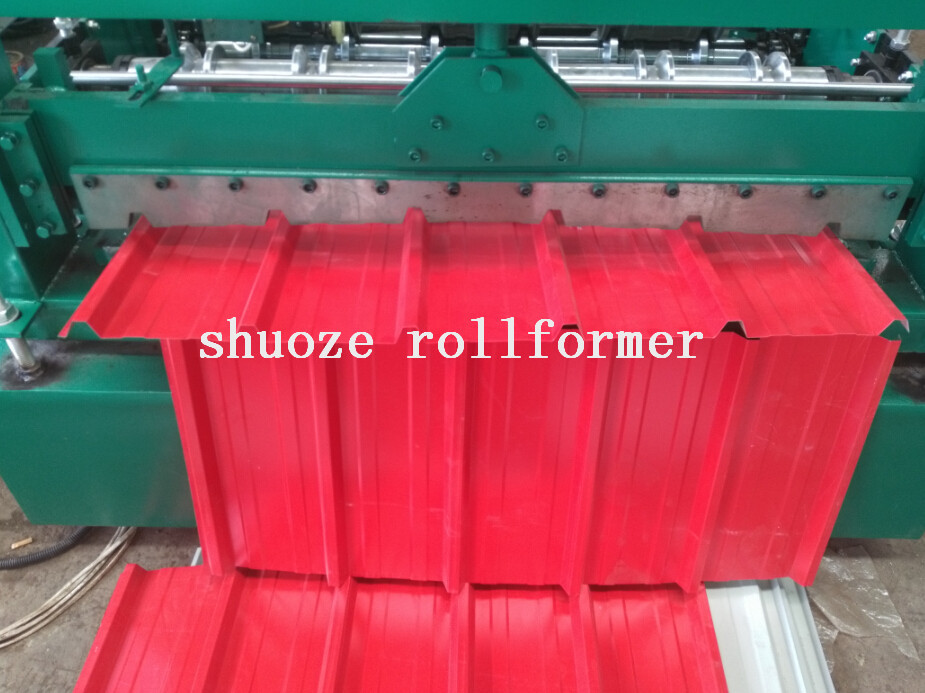

AG PROFILE ROLLFORMER



Performances

Parameters



Suitable material

galvanized coil/ colored coil

Material size and thickness

Raw material width:1220mm

Thickness:0.35-0.7mm

Productivity

8-12m/min

Roller forming steps

16 steps

Roller material

45# after heating treatment and with chromium

Diameter of active shaft

Φ80mm

Main machine structure

350H

Wall plate

16mm

Power

5.5KW main motor,cycloidal reducer work stable and no noise

Shear

Hydraulic shear, blade material CR12

Transmission

1’’ chain hanging inside of main structure

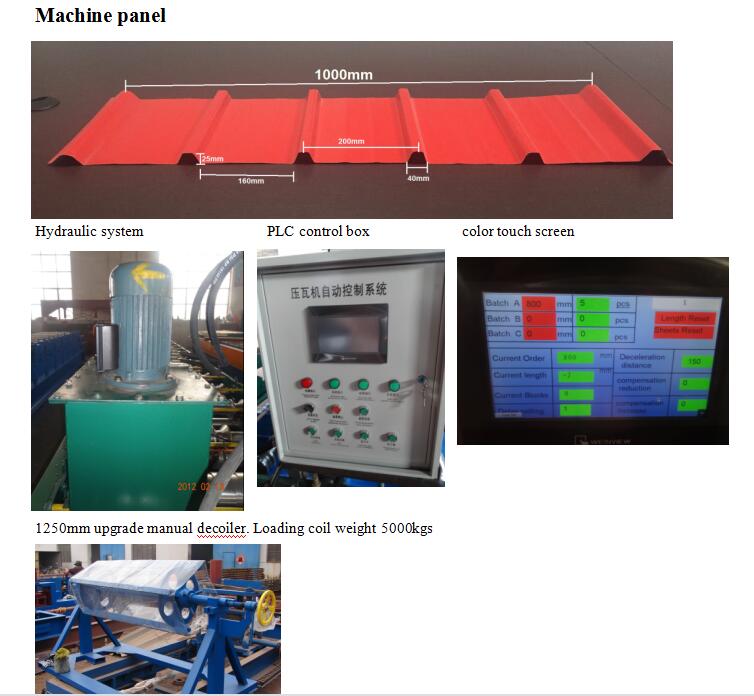

Control system

Delta PLC computer control system with Delta inverter to ensure precision; Winwen color touch screen.

Program is made by English, working mode: automatic and manual

Hydraulic system

3kw hydraulic motor and large oil pump

Voltage

440V/3 phase/60hz

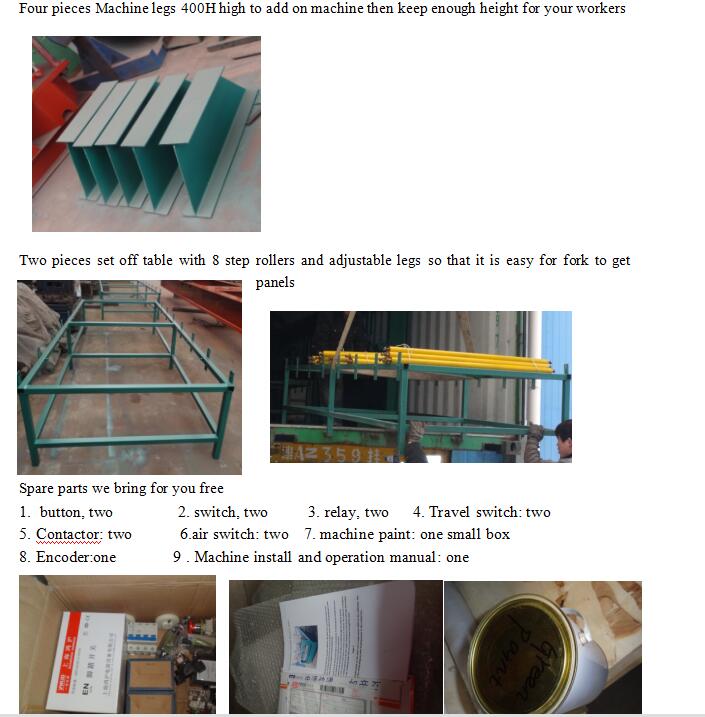

Set off table

Two pcs, 5 step roller and adjustable screw, each is 3000mm long

Size(length*width*height)

7500*1400*1500MM

Weight

4000kgs

Component

Upgrade manual decoiler-forming part-shear blade device--hydraulic system-PLC computer control cabinet-set off table
