536 corrugated door roll former
Product Name:
536 corrugated door roll former
No. :
:
:

Product Description:

536 corrugated door roll former

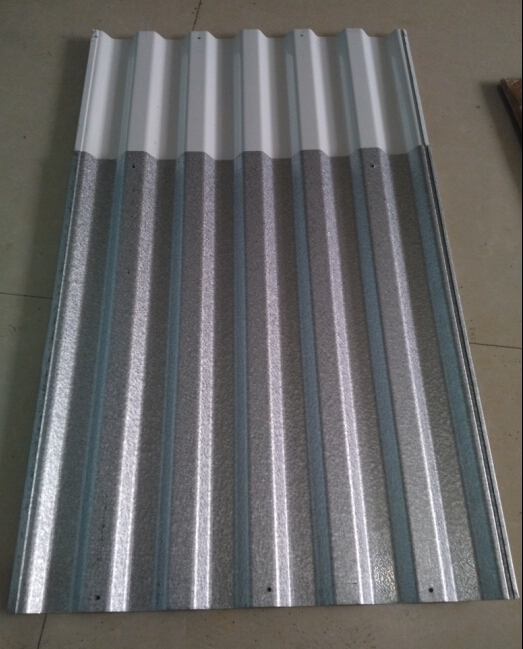

1. profile with size    (we are factory and do any size profile rollformer as customer need )



2. Detailed rollformer parameters

Performances
Parameters

Suitable material
 Galvalume or prepainted Steel
Suitable material
Raw material width:23.75"
thickness 28ga to 24 ga , max0.7mm
Productivity
6-10m/min
Roller forming steps
16 steps
Roller material
45# after heating treatment and with chromium
Diameter of active shaft
Φ76mm Out diameter of roller: 118mm
Main machine structure
300H
Wall plate
18mm
Power
3KW main motor,cycloidal reducer work stable and no noise
Shear
Hydraulic shear, blade material CR12
Transmission
1.2’’ gear chain
Control system
Delta PLC computer control system with Chrizi inverter to ensure precision; Winwen color touch screen.
Program is made by English, working mode: automatic and manual
Hydraulic system
3kw hydraulic motor and large oil pump
Voltage
AC220V/60HZ/3 phase
Size(length*width*height)
7000mm*900mm*1500mm
Weight
4500kgs
Component
forming part-shear blade device--hydraulic system-PLC computer control cabinet-set off table-seaming machine

3. rollformer pictures


4.  corrugated door panel seaming
