M Panel Roll Former
Product Name:
M Panel Roll Former
No. :
:
:

Product Description:

 36''(6*6'') M panel rollformer for US market

1. CE and ISO
2. 15 year experience
3. export to USA market

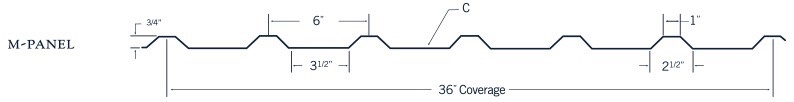

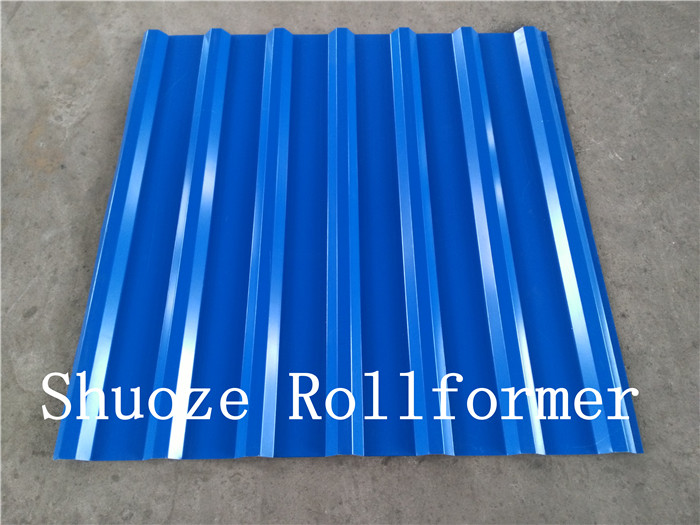

Panel size:



Raw material width: 43’’

Material thickness:26-29 guage

Rib height:3/4’’

Rib distance:6’’

Effective panel width:36’’

Machine specification

Performances

Parameters



Suitable material

 Galvalume or pre painted Steel

Suitable material

Raw material width:40.875"

thickness 29ga to 24 ga

Productivity

6-10m/min

Roller forming steps

13 steps

Roller material

45# after heating treatment and with chromium

Diameter of active shaft

Φ75mm

Main machine structure

300H

Wall plate

14mm

Power

3KW main motor,cycloidal reducer work stable and no noise

Shear

Hydraulic shear, blade material CR12

Transmission

1’’ gear chain

Control system

Delta PLC computer control system with Chrizi inverter to ensure precision; Winwen color touch screen.

Program is made by English, working mode: automatic and manual

Hydraulic system

3kw hydraulic motor and large oil pump

Voltage

AC220V/60HZ/3 phase

Size(length*width*height)

7000mm*900mm*1500mm

Weight

4500kgs

Component

Decoiler-forming part-shear blade device--hydraulic system-PLC computer control cabinet-set off table-seaming machine

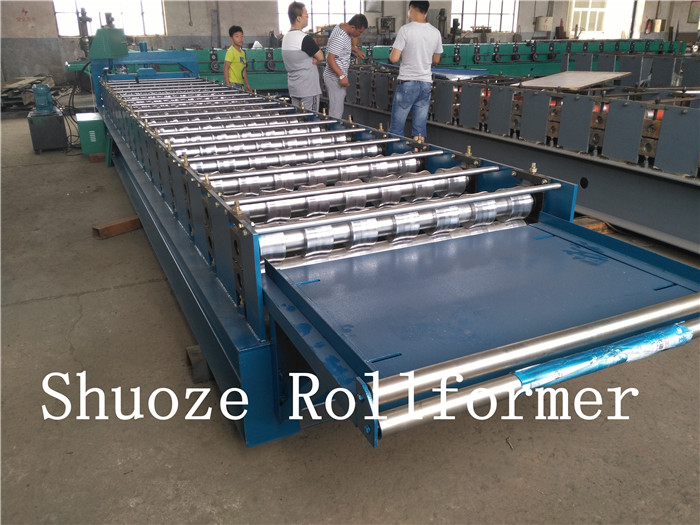

Machine detailed pics

Spare parts we bring for you free

1. button, two        2. switch, two   3. relay, two

4. Travel switch: two  5. Contactor: two 7.air switch: two  6. machine paint: one small box

7. Machine install and operation manual: one
