U Channel RollFormer
Product Name:
U Channel RollFormer
No. :
:
:

Product Description:

 U Channel RollFormer For  US market

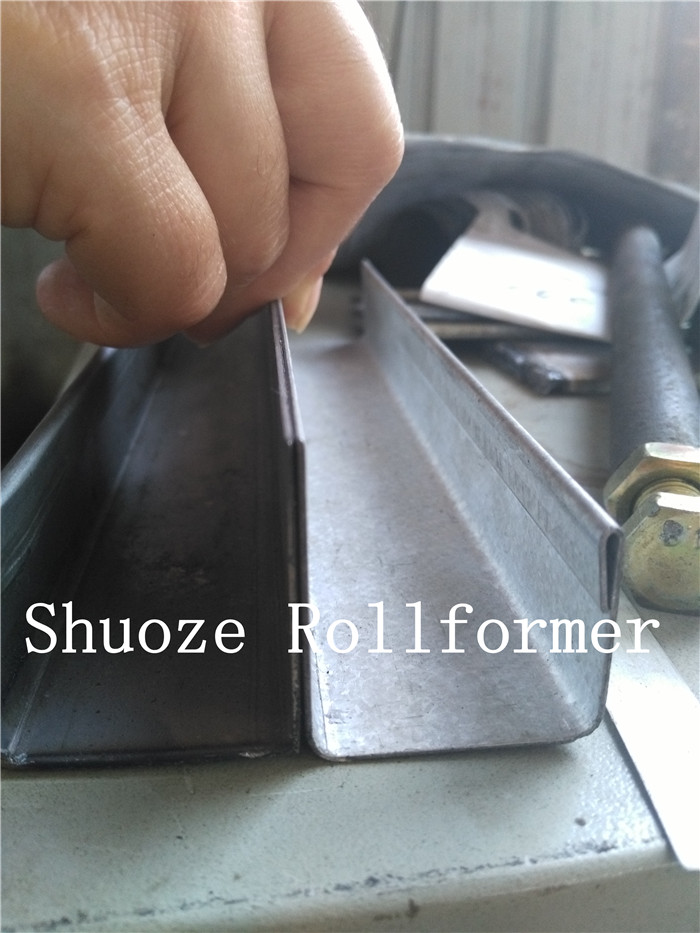

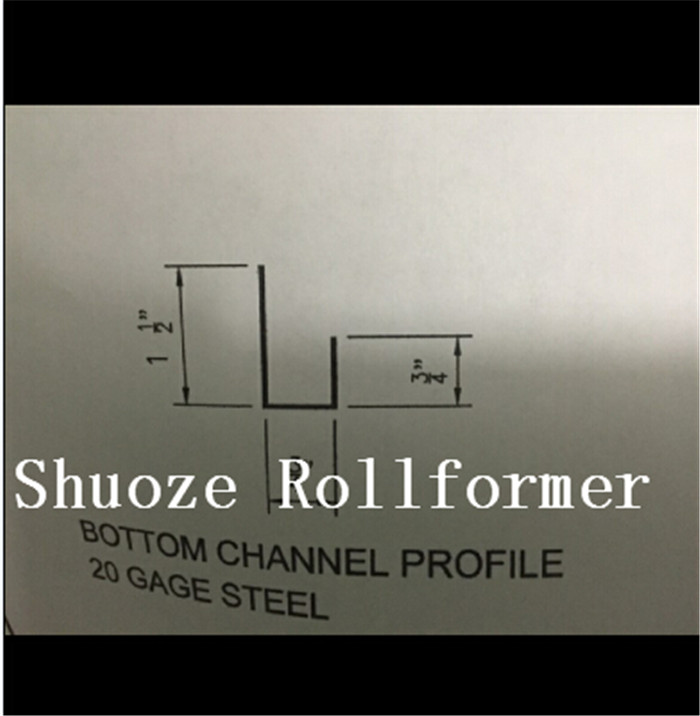

1. Prifile with size




2. U Channel roll former parameters

Performances

Parameters



Suitable material

galvanized coil/ colored coil/prepaint panel

Suitable material

Max Raw material width: 2’’*2’’

Max thickness: 20 guage

Productivity

8-12m/min

Roller forming steps

8 pairs steps

Roller material

45# after heating treatment and with chromium

Diameter of active shaft

Φ40mm

Main machine structure

steel welded into frame and put whole piece steel on structure.

Wall plate

40 and 35 mm

Power

3KW main motor,cycloidal reducer work stable and no noise

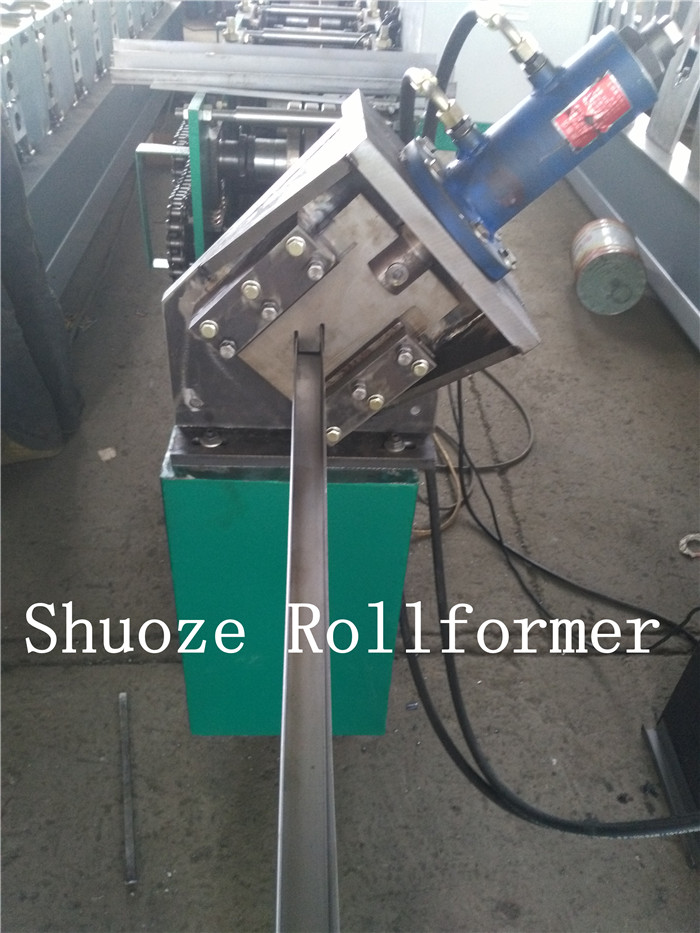

Cutting mode

Hydraulic mould cutting.  blade material CR12

Transmission

1.5’’ gear chain

Control system

Delta PLC computer control system with Chrizi inverter to ensure precision; Winwen color touch screen.

Program is made by English, working mode: automatic and manual

Hydraulic system

3 kw hydraulic motor and large oil pump

Voltage

AC220V/60HZ/3 phase or as your need

Size(length*width*height)

3000*500*1000MM

Weight

3000kgs

Component

Decoiler- forming part-shear blade device--hydraulic system- Electric control cabinet-reception table

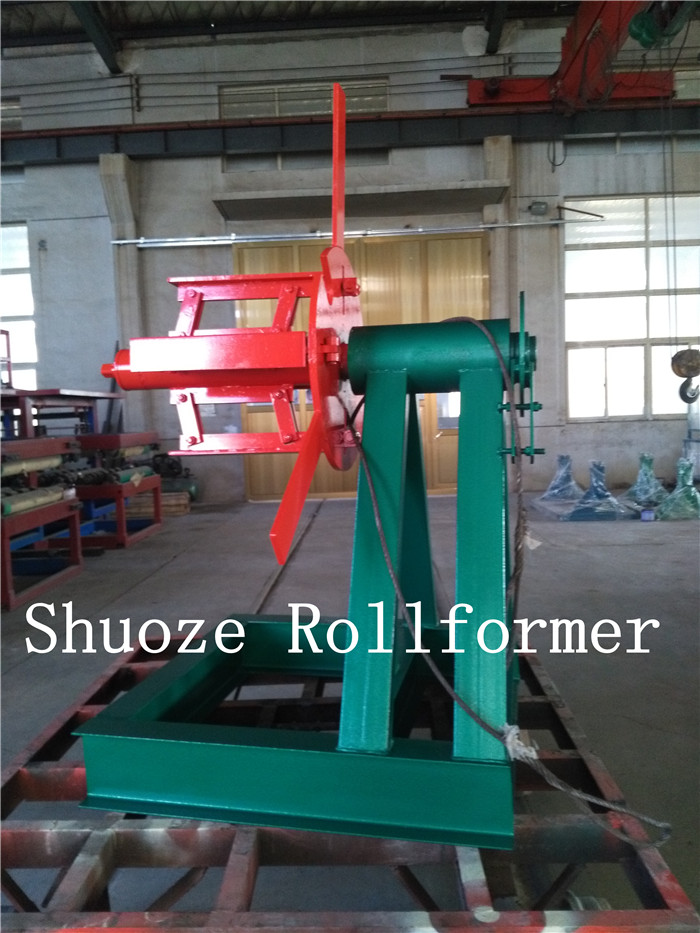

4. Upgarde manual decoiler can load Max 6000kgs coil


5. Automatic PLC electric control system to ensure machine working




6. after-sale service: we are 24 hours on line to serve you. If you need to send person to your country to
teach your workers how to run machine. it is ok.

If you are tired of looking for good quality machine, pls contact us!!!!
