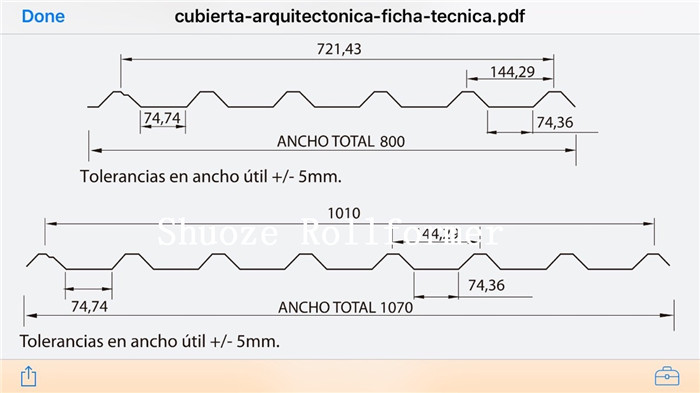

Raw material width:48’’
Thickness 24- 29 guage
2. 1010 Rollformer paramters
|
Performances |
Parameters |
|
|
Suitable material |
galvanized coil/ colored coil |
|
|
Material size and thickness |
Raw material width:48’’ Thickness 24- 29 guage |
|
|
Productivity |
8-12m/min |
|
|
Roller forming steps |
17 steps synchronous forming |
|
|
Roller material |
45# after heating treatment and with chromium |
|
|
Spacer, balance bar, screw |
All do chromium to ensure beautiful appearance |
|
|
Diameter of active shaft |
Φ74mm |
|
|
Main machine structure |
350H |
|
|
Wall plate |
16mm |
|
|
Power |
3KW main motor,cycloidal reducer work stable and no noise |
|
|

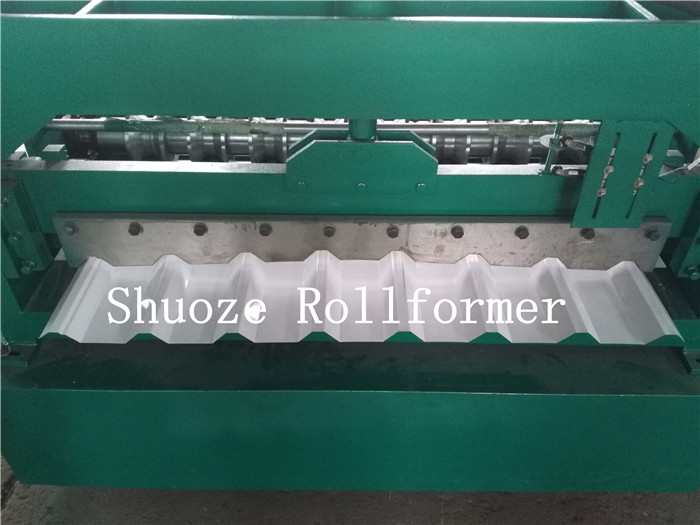

Shear |
Hydraulic shear, blade material CR12 |
|
|
Transmission |
1’’ gear chain |
|
|
Control system |
Delta PLC computer control system with Delta inverter to ensure precision; Winwen color touch screen. Program is made by English, working mode: automatic and manual |
|
|
Hydraulic system |
3kw hydraulic motor and large oil pump |
|
|
Voltage |
AC220V/60HZ/3 phase |
|
|
Set off table |
Two pcs, 8 step roller and adjustable screw, each is 3000mm long |
|
|
Size(length*width*height) |
7300*1400*1500MM |
|
|
Weight |
4700kgs |
|
|
Component |
Uncoiler -forming part-shear blade device--hydraulic system-PLC computer control cabinet-set off table |
|
