175mm Slate Rolling Strip Shutter Door Forming Machine
Product Name:
175mm Slate Rolling Strip Shutter Door Forming Machine
No. :
:
:

Product Description:

 175mm Slate Rolling Strip Shutter Door Forming Machine

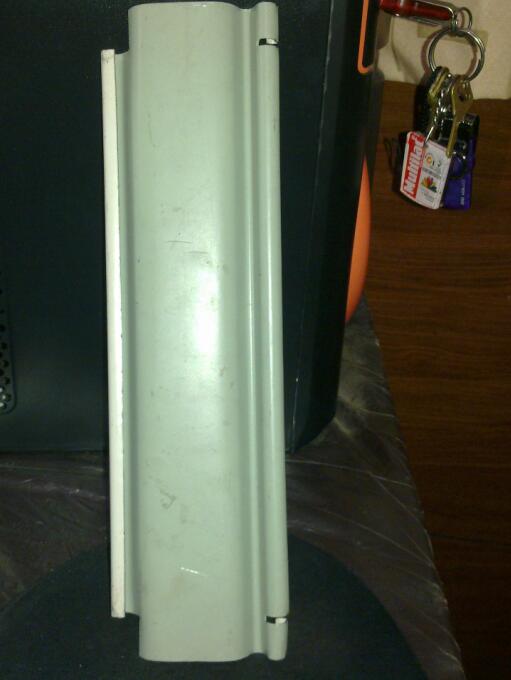

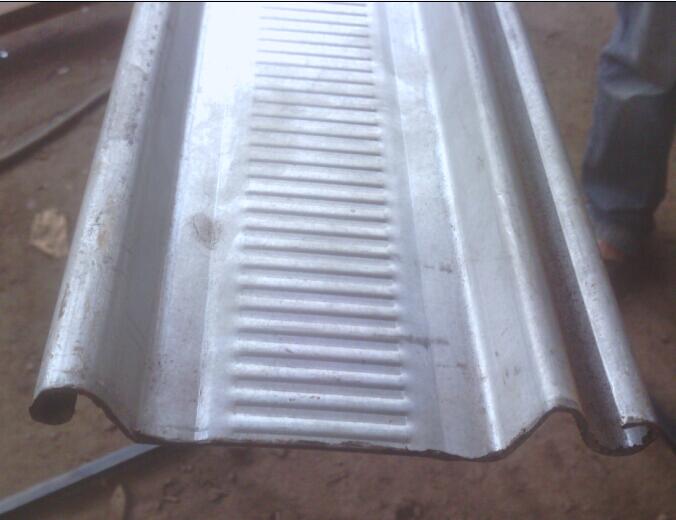

1. profile with size
profile size after forming:175mm
profile thickness:0.7-1.25mm

we could add key and lock cutter on the hydraulic mould device. panel cutting and key cutting finish together

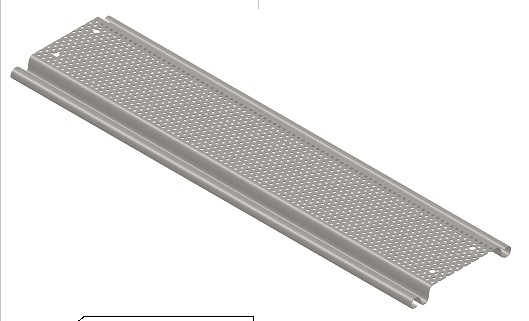

it is ok to punch different type holes on the slate panel

2. Slate Rolling Strip Shutter Door Forming Machine parameters

No.

        main parameter

1

Suitable to process

Color steel plate

2

Width of the plate

175mm

3

Rollers

10+5 rows

4

Dimensions

4000mm*450mm*1200mm

5

Power

3+3kw

6

Thickness of the plate

0.5-1.0mm can be thickner as your need

7

Productivity

8-12m/min

8

Diameter of the roller

Φ40mm

9

Weight

About 1500kgs

10

Voltage

380V 50Hz 3phase

11

Material of the cutting plate

Cr12

12

Hydraulic

40# oil

13

Processing precision

Within 1.00mm

14

Control system

 Panasonnic PLC control

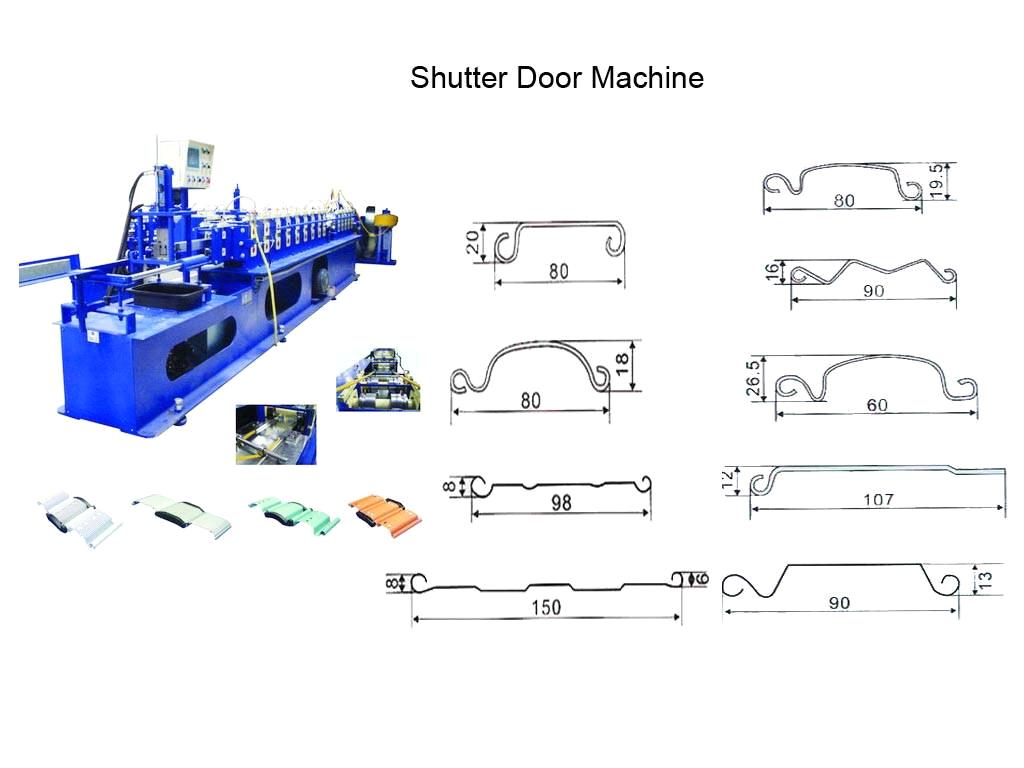

3. whole machine working line

Components of  175mm Slate Rolling Strip Shutter Door Forming Machine



Components of Machine

Main Description

1.

Uncoiler upgrade uncoiler;

auto decoiler with car

 loading capacity:5000kgs



2.

Feeding Section with guide

Easily for the raw material entry

3.

Main forming machine

Forming the panel according your requirement

4.

 PLC control system

Automatically control the quantity of sheet, cutting length.

5.

Cutting blade

Cutting the panel automatically

6.

Set off table

used to get the formed panel



7.

Coverage

Put on chain to escape damage to workers


we are factory and can do any size slat strip panel machine as your need
