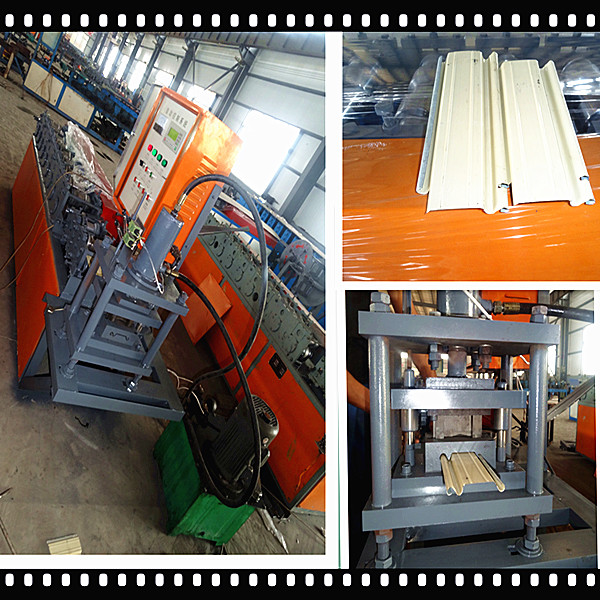

Slate Rolling Strip Shutter Door Forming Machine

Product Name:

Slate Rolling Strip Shutter Door Forming Machine

No. :

Product Description:

Slate Rolling Strip Shutter Door Forming Machine

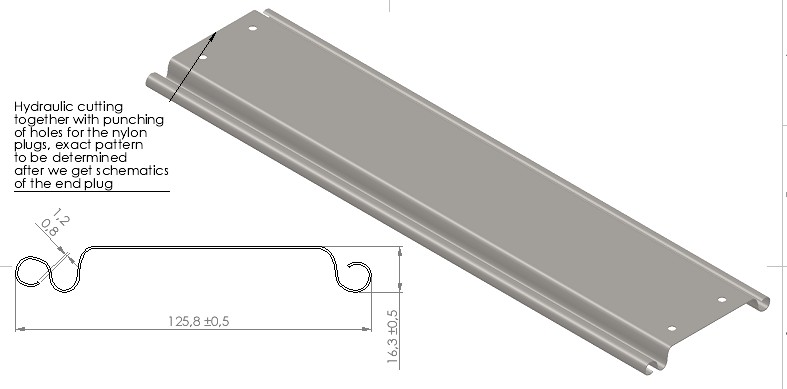

1. profile with size
Slat strip width:127mm

Thickness:0.5-1.0 or thicker as your need

2. Slate rolling strip machine parameters

Power(W):3KW

Voltage:220V or 380V

Dimension(L*W*H):4000*550*1000mm

Weight:1500kgs

Certification:CE,BV,ISO

Warranty:12 month

After-sales Service Provided:Engineers available to service machinery overseas

working type:fully automatic

Roller stands:10+5 steps

Roller material:GCr 45 with Chrome plated

Shearing:hydraulic mould cutting

working mode:fully automatically

Program language:English, Chinese, Russian or as your need

PLC Control system:Delta or Panasonic or Mitsubishi

Encode:Omron

Cutting blade:CR12 material

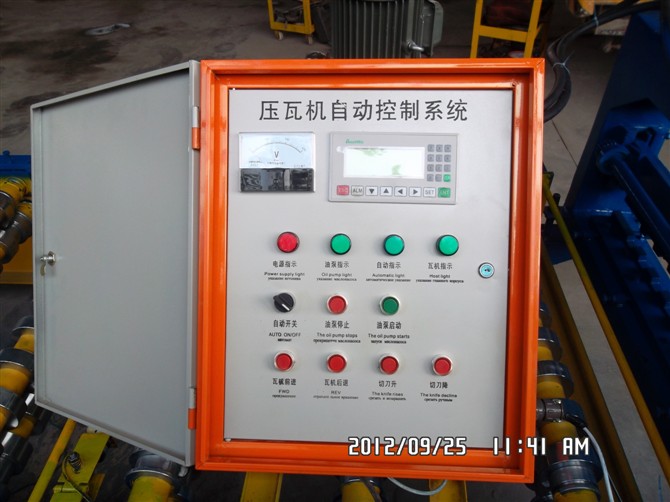

3. Machine is controlled by PLC eletric box. then machine can work automatically from forming to cutting
