6 rib roll forming machine for Guinea
Product Name:
6 rib roll forming machine for Guinea
No. :
Product Description:

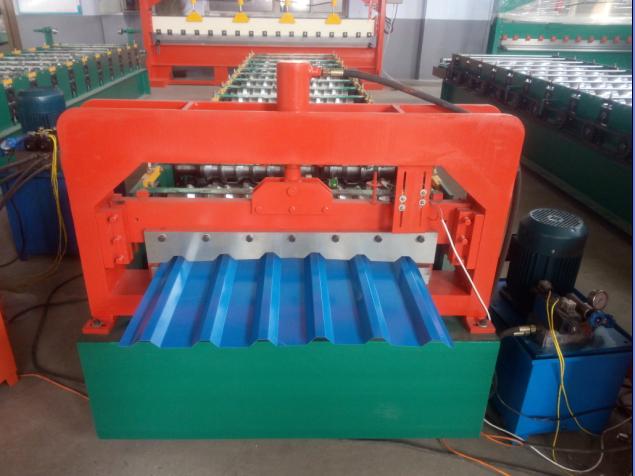

6 rib roll foming machine for Guinea
This profile is most popular in Africa market.

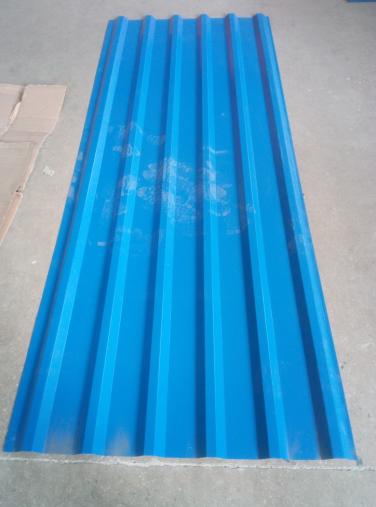

1. Profile
2. machine parameters

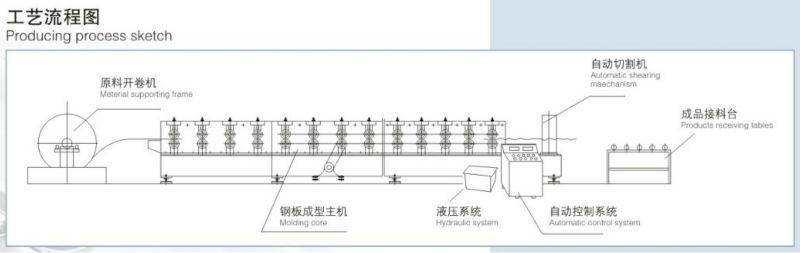

3. flow chart of the roll forming machine
4. components of the roll forming machine
This profile is most popular in Africa market.
1. Profile
2. machine parameters
|
Performances
|
Parameters
|
 |
|
Suitable material
|
galvanized coil/ colored coil
|
|
|
Material size and thickness
|
Raw material width:1220mm
Thickness:0.3-0.8mm
|
|
|
Productivity
|
8-12m/min. fast speed 25m/min
|
|
|
Roller forming steps
|
16 steps
|
|
|
Roller material
|
45# after heating treatment and with chromium
|
|
|
Diameter of active shaft
|
Φ80mm
|
|
|
Main machine structure
|
350H
|
|
|
Wall plate
|
16mm
|
|
|
Power
|
5.5KW main motor,cycloidal reducer work stable and no noise
|
|
|
Shear
|
Hydraulic shear, blade material CR12
|
|
|
Transmission
|
1’’ chain hanging inside of main structure
|
|
|
Control system
|
Delta PLC computer control system with Delta inverter to ensure precision; Winwen color touch screen.
Program is made by English, working mode: automatic and manual
|
|
|
Hydraulic system
|
3kw hydraulic motor and large oil pump
|
|
|
Voltage
|
380V/3 phase/50hz
|
|
|
Set off table
|
Two pcs, 5 step roller and adjustable screw, each is 3000mm long
|
|
|
Size(length*width*height)
|
7500*1400*1500MM
|
|
|
Weight
|
4000kgs
|
|
|
Component
|
Upgrade manual decoiler-forming part-shear blade device--hydraulic system-PLC computer control cabinet-set off table
|
|
4. components of the roll forming machine
|
Machine components
|
||||
|
No.
|
Name
|
Note
|
Set
|
|
|
1
|
Decoiler
|
Manual (Hydraulic for optional)
Loading weight: 5 -10 Ton
Max suitable coil width:1250mm
|
1
|
|
|
2
|
Feeding device
|
To guide coil into machine
|
1
|
|
|
3
|
Main roll forming
|
13 steps to form the desired profile
|
1
|
|
|
4
|
Hydraulic cut
|
Cut the desired length automatically
|
1
|
|
|
5
|
Hydraulic system
|
Provide power to cutting
|
1
|
|
|
6
|
PLC control box
|
All program is setted in it and it control the whole machine working automatically
|
1
|
|
|
7
|
Set off table
|
Get the formed panel which come out of the machine
|
6 meters
|
|
|
8
|
Machine legs
|
Added on machine to increase machine height for tall workers
|
4
|
|
