Automatic C purlin machine
Product Name:
Automatic C purlin machine
No. :
:
:

Product Description:

Automatic C purlin machine
it do not need to change mould size for different C purlin size. It finished on PLC control system with few minites

1. profile with size

C Purlin Dimensions Table
Model
Section Sizes(mm)
Hole Distance(mm)
h
b
c
t
C80
80
40
15
2.0-3.0
No Hole
C100
100
50
20
2.0-3.0
40
C120
120
50
20
2.0-3.0
Changable
C140
140
50
20
2.0-3.0
Changable
C160
160
60
20
2.0-3.0
Changable
C180
180
60
20
2.0-3.0
Changable
C200
200
60
20
2.0-3.0
Changable
C220
220
70
20
2.0-3.0
Changable
C250
250
70
20
2.0-3.0
Changable
C300
300
80
20
2.0-3.0
Changable


2. C purlin machine components

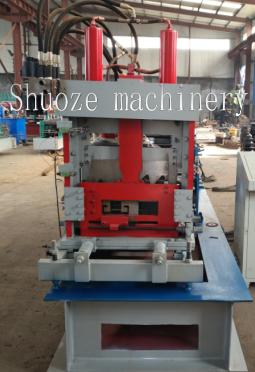

First part: main machine forming part

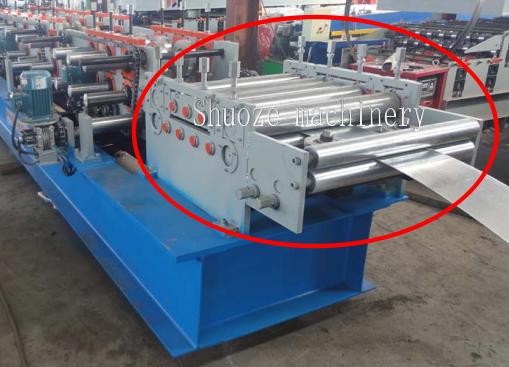

Flatterning shaft and wheel

Auxiliary Side rollers: 6 steps

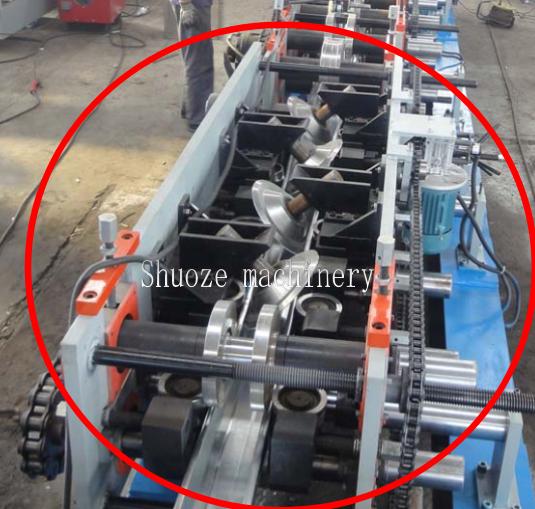

Main forming steps

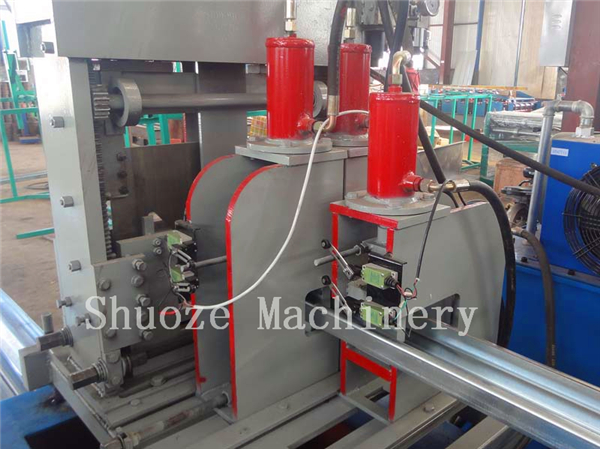

Second part: hole making and cutting part

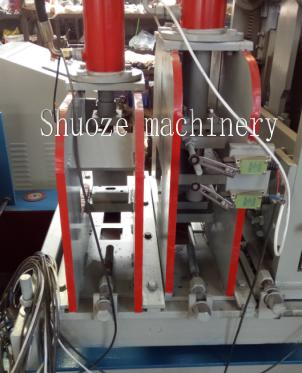

Shear mould do not need to change mould size. It finished on PLC control system.

Tell us the hole size you need to make

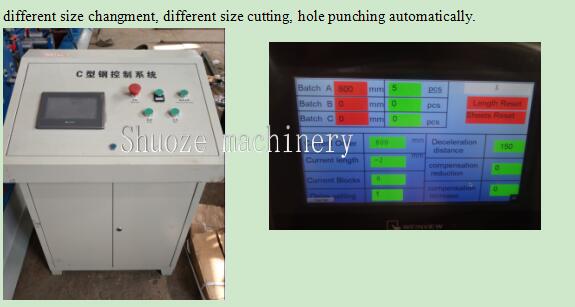

C purlin size change just on the PLC program. and then machine rollers change automatically in few minites.

Third part:  Hydraulic hose motor system

Power 22kW, ensure work stable and high speed of 20m/min

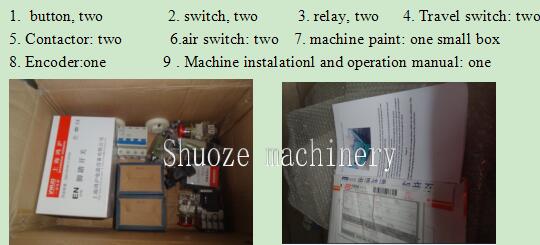

 Spare parts we bring for you free

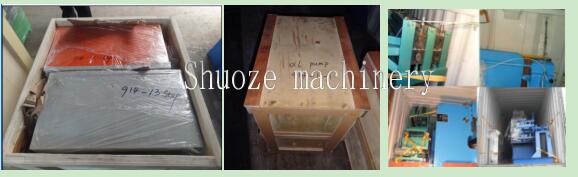

Machine package and fix in container well escape any damage during shipment
