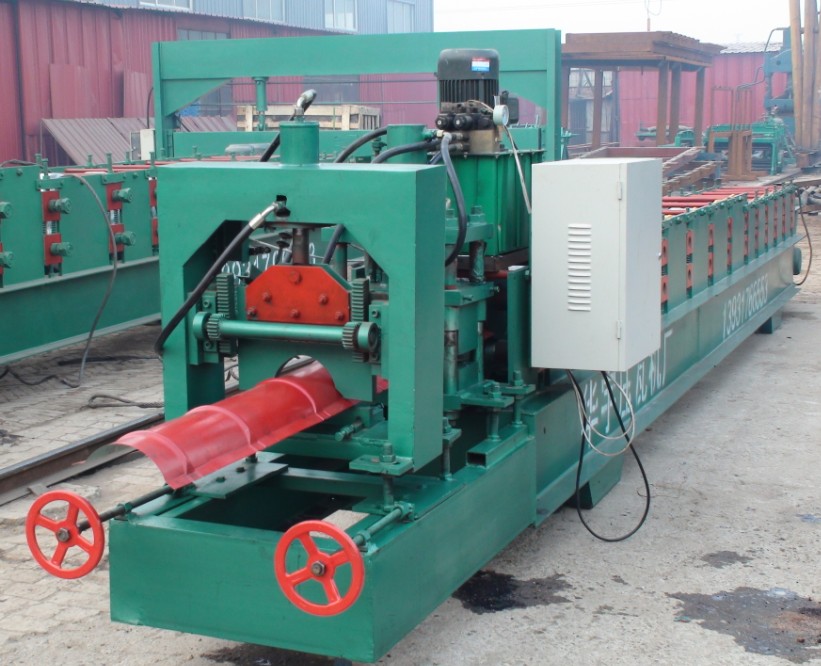

1 Fully Automatic Ridge cap rollformer can roll forming metal panel which is mostly used with colorful roofing tile sheets.
After roll formed by this roll forming machine, the surface will be very smooth and beautiful without any scratch on surface.
2 we also can do a custom roll forming machine, We can design the machine according to your specification and profile drawing.
3 One ridge cap rollformer only can produce one profile.

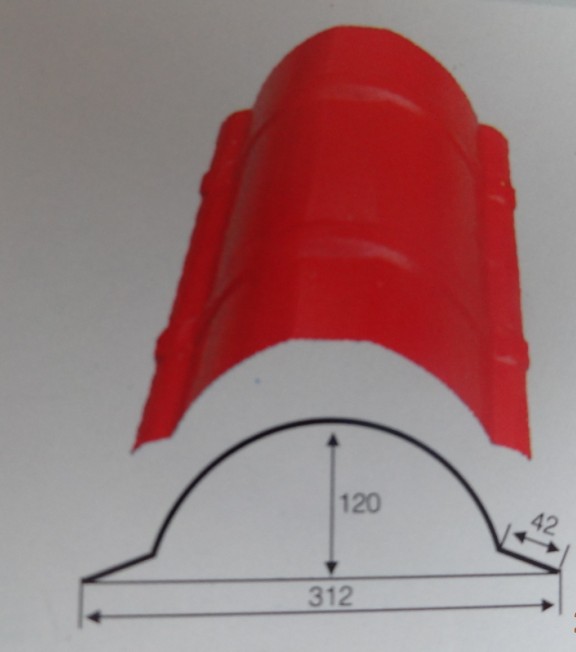

The following profile drawing are some examples for your reference.
parameters
|
No. |
main parameter of Roof Ridge Cap Forming Machine |
|
|
1 |
Suitable to process |
Color steel plate/galvanized sheet |
|
2 |
Width of the plate |
475mm |
|
3 |
Rollers |
13 rows |
|
4 |
Dimensions |
7000mm*1550mm*1510mm |
|
5 |
Power |
3+3kw |
|
6 |
Thickness of the plate |
0.3-0.8mm |
|
7 |
Productivity |
8-12m/min |
|
8 |
Diameter of the roller |
Φ70mm |
|
9 |
Weight |
About 4000kgs |
|
10 |
Voltage |
220V 60Hz single phase or 380V |
|
11 |
Material of the cutting plate |
Cr12 |
|
12 |
Hydraulic |
40# oil |
|
13 |
Processing precision |
Within 1.00mm |
|
14 |
Control system |
Panasonnic PLC control |
