688 Floor deck roll forming machine
Product Name:
688 Floor deck roll forming machine
No. :
:
:

Product Description:

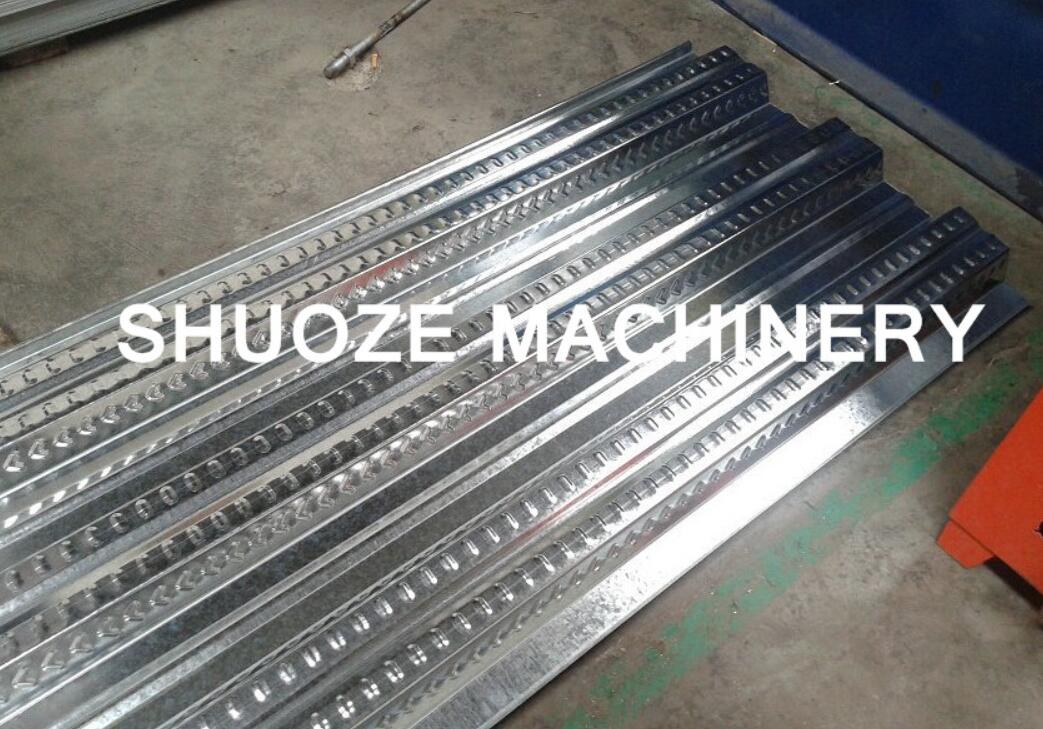

 688 Floor deck roll forming machine

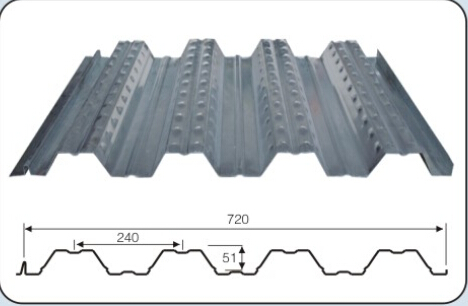

profile with size




 Technique parameters of the processing line

 (1) Suitable material: aluzinc/galvanized steel/colored coil

(2) Thickness of the plate : 0.75-1.5mm

(3) Productivity :8-12m/min

(4) Roller steps :24 rows

(5) Roller material: 45# steel heating treatment and with chromium

(6) Diameter of active shaft: 90mm

(7) Wall thickness of the main forming machine: 20mm steel plate

(8)Main forming machine body : 400mm工 steel

(9) Transmission chain is 1.5’’;

Reducer is 18.5kw Xingxing Cycloid which works stably and no noise.

(10) Cutting hydraulic systerm adpats CDF-10 gear pump,the motor power is 7.5kw, no noise, work stably, long life expentancy.

(11) Taida PLC control systerm, easy to operate, high precision and work stably.

(12) Cutting blade material : CR 12

(13) PLC control system(English): Taida brand

Inverter is Taida brand

Voltage: 3phase/380V/50Hz

(14) Dimensions of major structure:14500mm*1200mm*1000mm

(15) Weight: about 16 ton.

Note: the machine dimensions and weight are an approximation and that in reality there may be a slight difference
