768 Glazed Tile Corrugated sheet roll forming machines
Product Name:
768 Glazed Tile Corrugated sheet roll forming machines
No. :
:
:

Product Description:

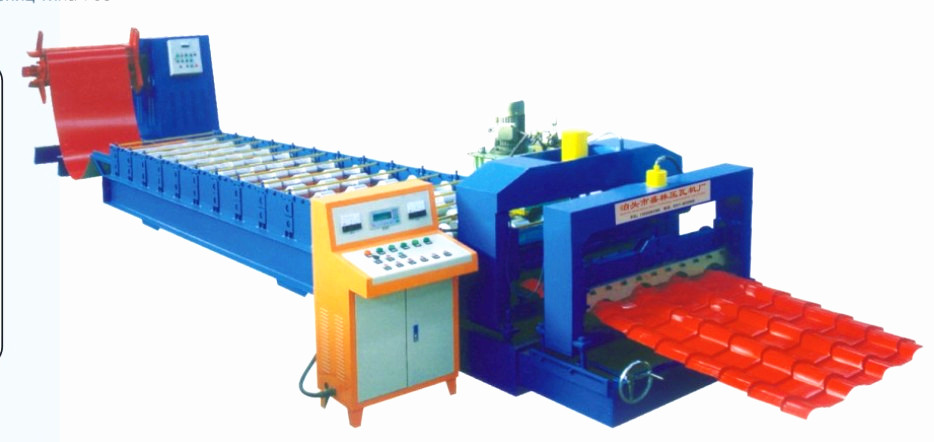

 768 Glazed Tile Corrugated sheet roll forming machines
This profile is very popular in Russia market.
we are factory and cooperate with Russia customer for many years and familar with your market need.

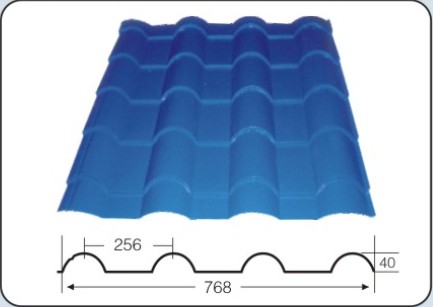

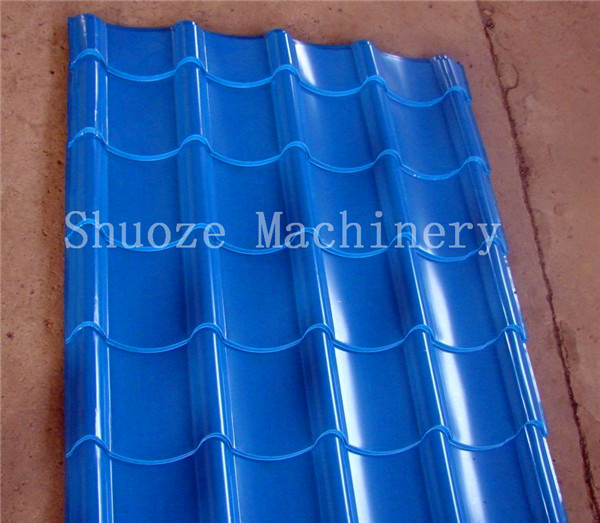

panel with size:

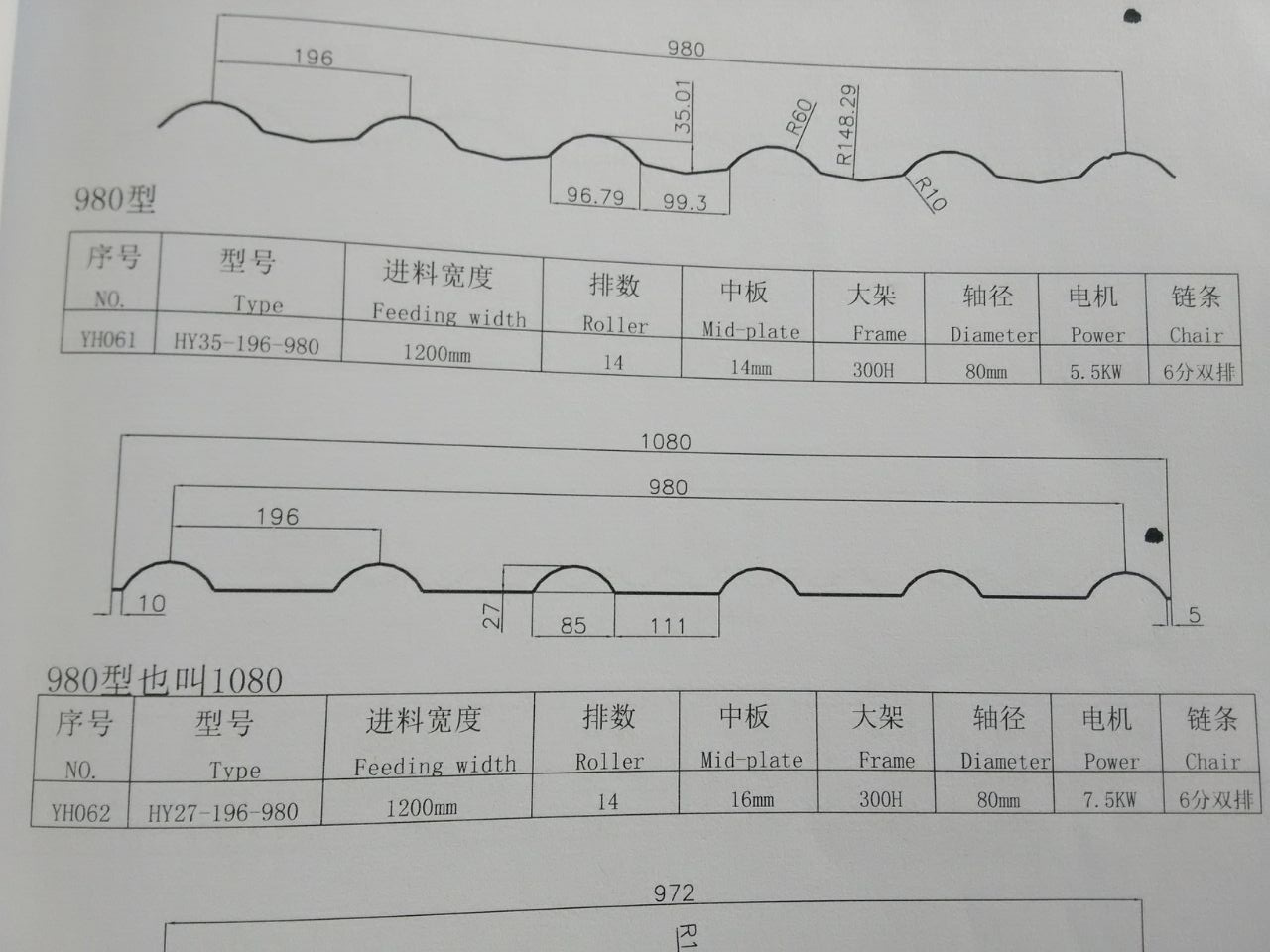

more size panel


Performances

Parameters



Suitable material

galvanized coil/ colored coil

Material size and thickness

Raw material width:1220mm

Thickness:0.35-0.7mm

Productivity

8-12m/min

Roller forming steps

14 steps

Roller material

45# after heating treatment and with chromium

Diameter of active shaft

Φ80mm

Main machine structure

350H

Wall plate

16mm

Power

5.5KW main motor,cycloidal reducer work stable and no noise

Shear

Hydraulic shear, blade material CR12

Transmission

1’’ chain hanging inside of main structure

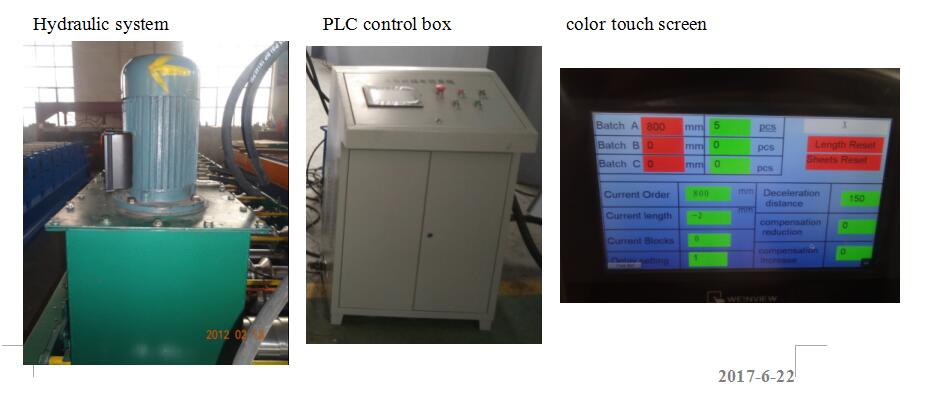

Control system

Delta PLC computer control system with Delta inverter to ensure precision; Winwen color touch screen.

Program is made by English, working mode: automatic and manual

Hydraulic system

3kw hydraulic motor and large oil pump

Voltage

380V/3 phase/60hz or as your need

Set off table

Two pcs, 5 step roller and adjustable screw, each is 3000mm long

Size(length*width*height)

7500*1400*1500MM

Weight

4000kgs

Component

Upgrade manual decoiler-forming part-shear blade device--hydraulic system-PLC computer control cabinet-set off table

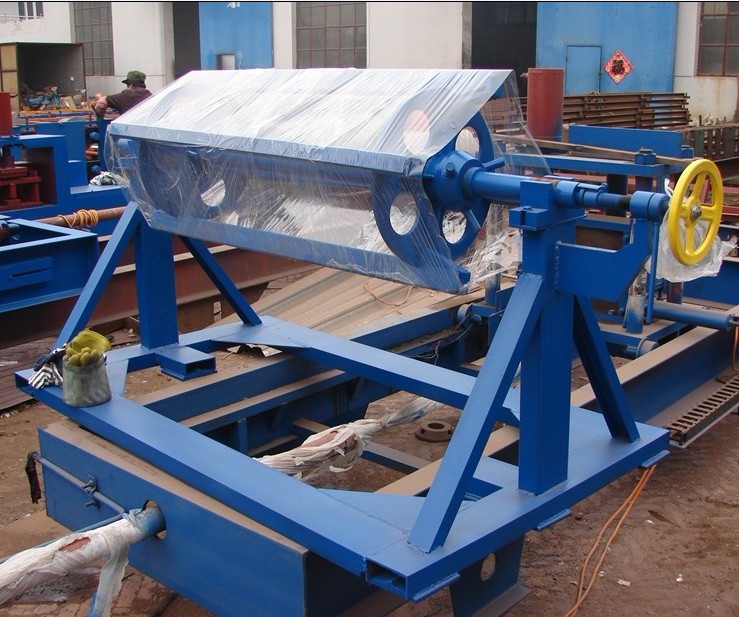

Manual Decoiler load 5 ton. Max width 1250mm

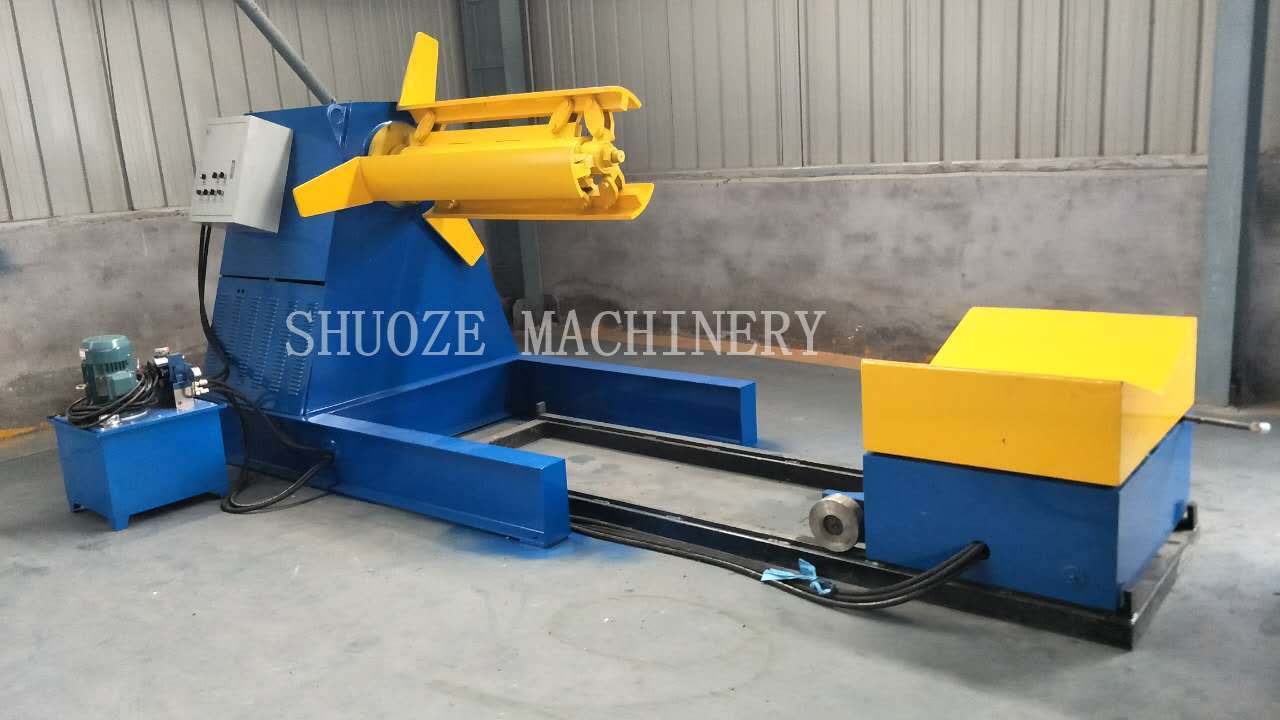

5 to 10 Ton auto decoiler with carriage for optional
