tris rollformer
Product Name:
tris rollformer
No. :
:
:

Product Description:

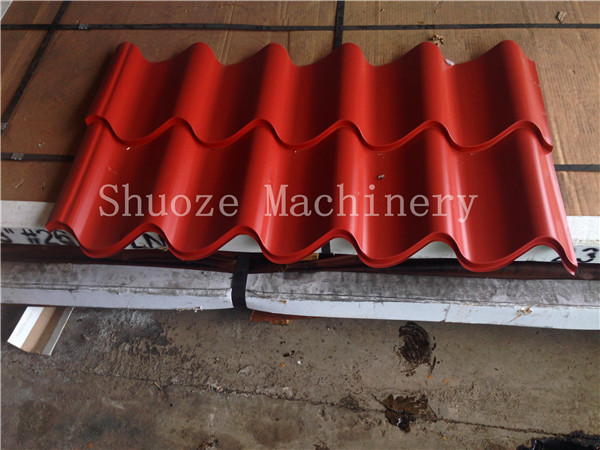

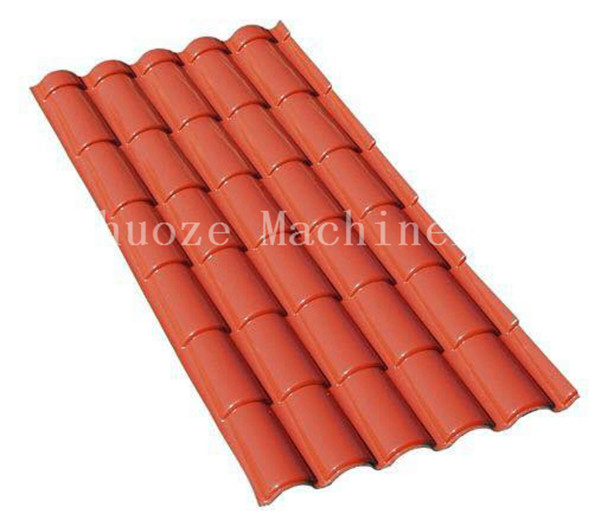

 Tris rollformer for Colombia market

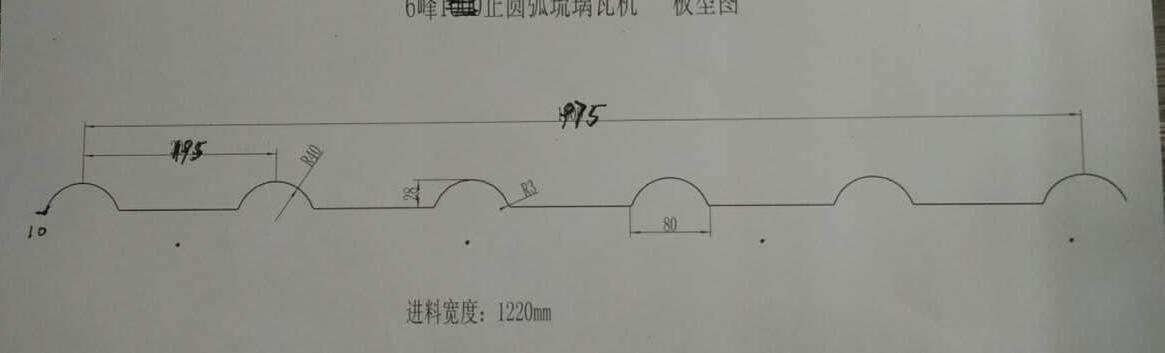

we are factory and capable of designing different size panel as your need





Performances

Parameters



Suitable material

galvanized coil/ colored coil

Material size and thickness

Raw material width:1220mm

Thickness:0.3-0.8mm

Productivity

1.5-2m/min

Roller forming steps

14 steps

Roller material

45# steel after heating treatment and with chromium

Diameter of active shaft

Φ75mm

Main machine structure

350H

Wall plate

18mm

Power

4KW main motor

Hydraulic system

5.5KW Hydraulic motor, blade material CR12

Transmission

1’’ chain hanging inside of main structure

Control system

Delta PLC computer control system with Delta inverter to ensure precision; Winwen color touch screen.

Program is made by English, working mode: automatic and manual

Voltage

440V/3 phase/60hz

Size(length*width*height)

7000*1400*1500MM

Weight

4000kgs

Component

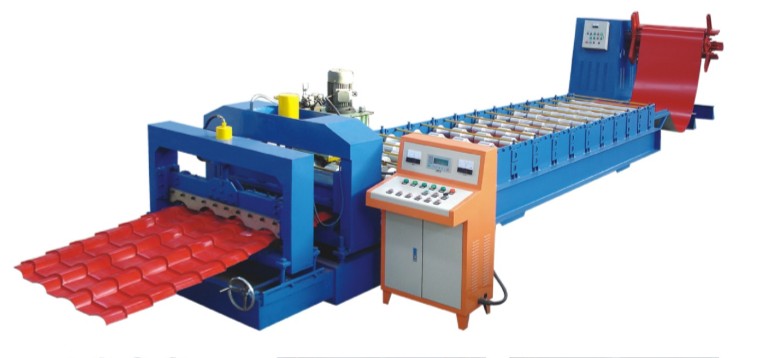

Manual decoiler-forming part-shear blade device--hydraulic system-PLC computer control cabinet

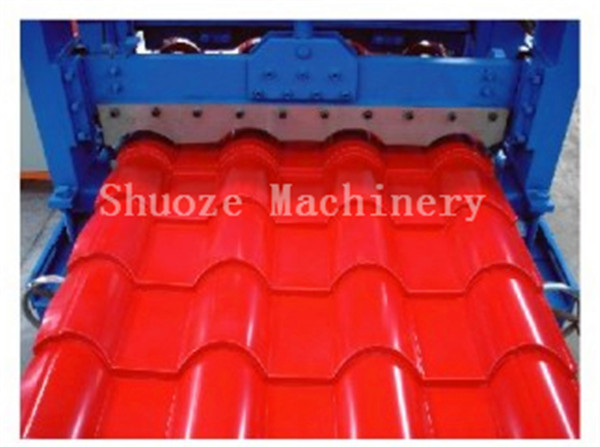

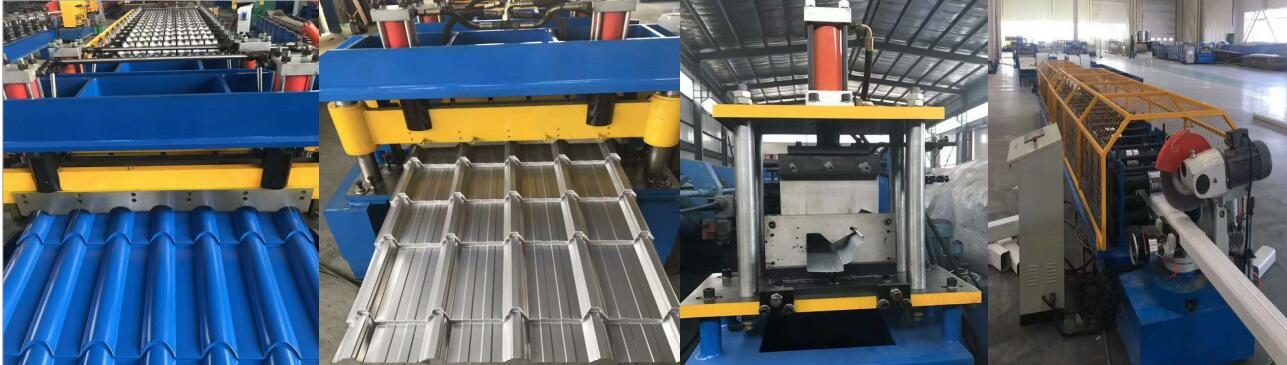

more machine pics

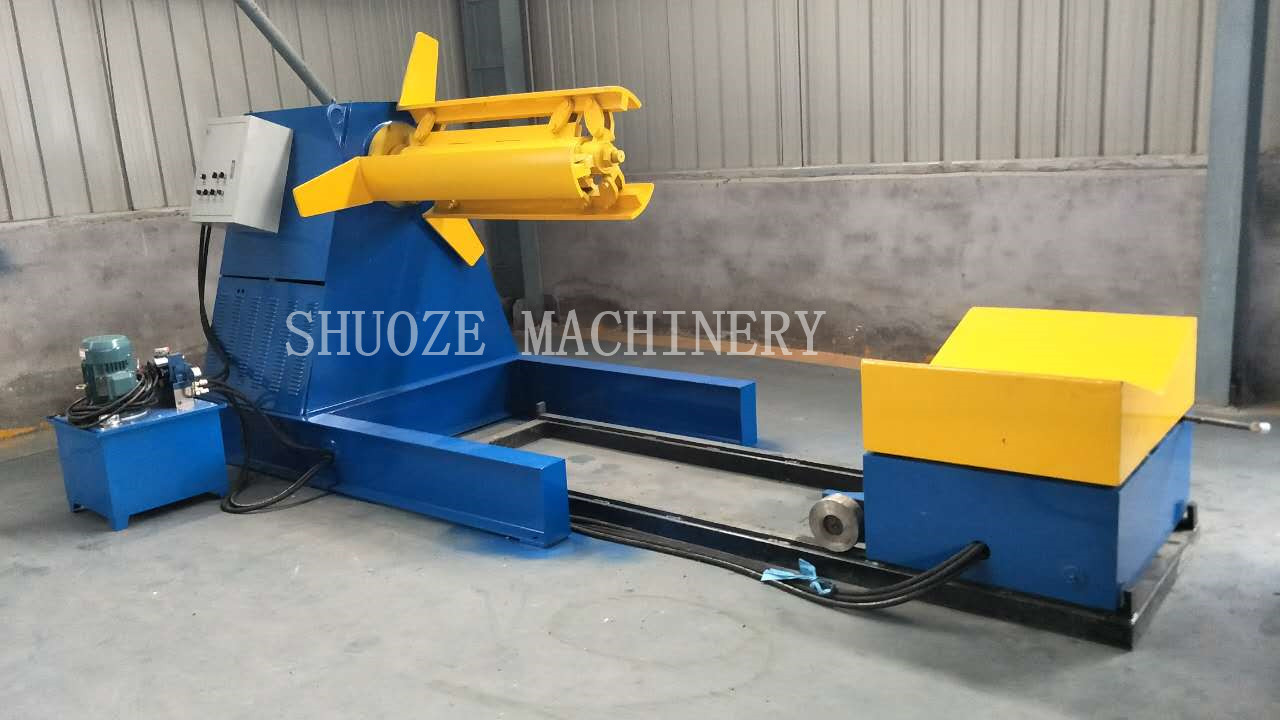

5-10 auto decoiler with car for optional
