840 Glazed tile roll forming machine
Product Name:
840 Glazed tile roll forming machine
No. :
:
:

Product Description:

 840 Glazed tile roll forming machine

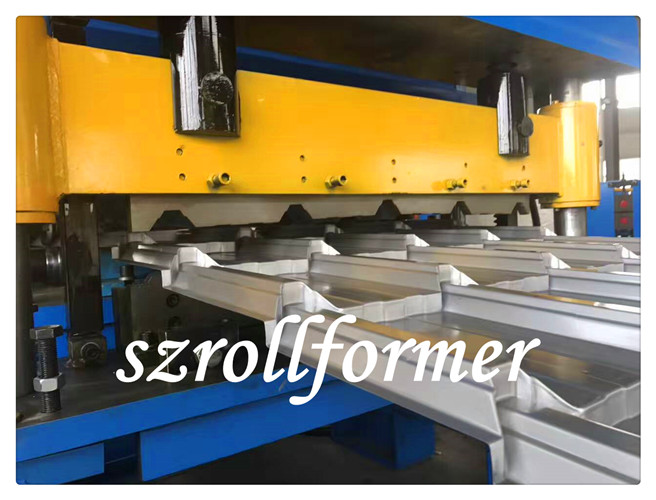

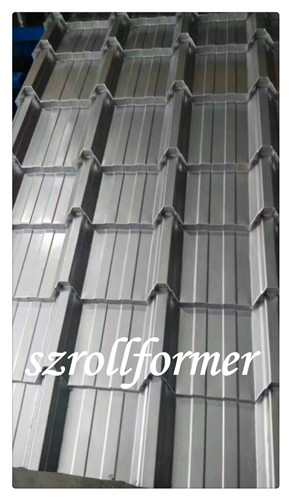

1 This roll forming machine can roll forming metal panel which is mostly used with colorful roofing tile sheets. After roll formed by this roll forming machine,
the surface will be very smooth and beautiful without any scratch on surface.

2 we also can do a custom roll forming machine, We can design the machine according to your specification and profile

drawing.

3 This roll forming machine only can produce two type profile and can work with two types width coil 1000 and 1200mm

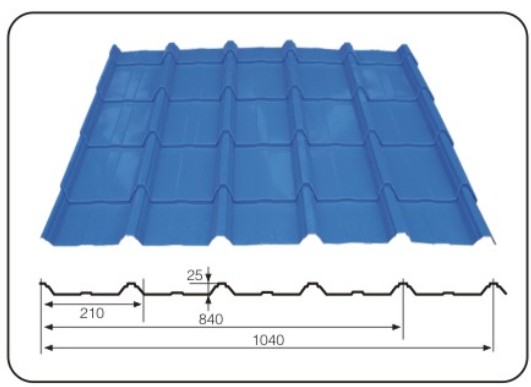

Profile with size

this machine can work on two types width coil 1000mm and 1200mm.

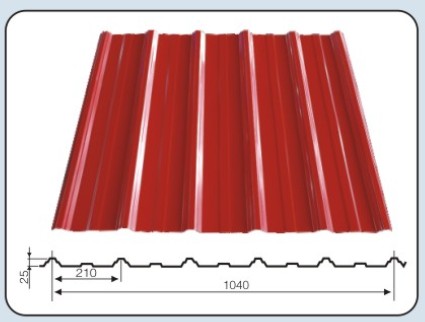

this machine can get two type panels



Wave height

 25mm

Wave length

210mm

Cover width

 840/1040mm

Coil width

 1000/1200mm

Thickness of material plate

0.3-0.8mm


Parameter

No.

        main parameter of roll forming machine

1

Suitable to process

Color steel plate/PPGI/galvanized sheet

2

Width of the plate

1000/1200mm

3

Rollers

13 rows

4

Dimensions

7000mm*1550mm*1510mm

5

Power

3+3kw

6

Thickness of the plate

0.3-0.8mm

7

Productivity

10-20m/min

8

Diameter of the roller

Φ70mm

9

Weight

About 4000kgs

10

Voltage

220V 60Hz single phase/380v 50hz 3phase

11

Material of the cutting plate

Cr12

12

Hydraulic

40# oil

13

Processing precision

Within 1.00mm

14

Control system

Delta PLC control

15

Whole machine work line

Uncoiler-roll forming machine part-hydraulic press part-hydraulic cutting device-set off table

machine components

No.

Name

Note

Set

1

Decoiler

Manual (Hydraulic for optional)

Loading weight: 5 -10 Ton

Max suitable coil width:1250mm



1

2

Feeding device

To guide coil into machine

1

3

Main roll forming

13 steps to form the desired profile

1

4

Hydraulic cut

Cut the desired length automatically

1

5

Hydraulic system

Provide power to cutting

1

6

PLC control box

All program is setted in it and it control the whole machine working automatically

1

7

Set off table

Get the formed panel which come out of the machine

6 meters

8

Machine legs

Added on machine to increase machine height for tall workers

4
