Structure Deck Roll Forming Machine
Product Name:
Structure Deck Roll Forming Machine
No. :
:
:

Product Description:

 Structure Deck Roll Forming Machine
We are factory and capable of designing machine as your need.

The countries we export to: France, Poland, Hungary, Russia, Kazakstan, America, Chili,

Brazil, Australia, Philippines, Singapore, Indonesia, India, Sri Lanka, Saudi Arabia, Turkey,

Iran, Nigeria, Ethiopia and so on.

1. Detailed profile

2.Specification for main components

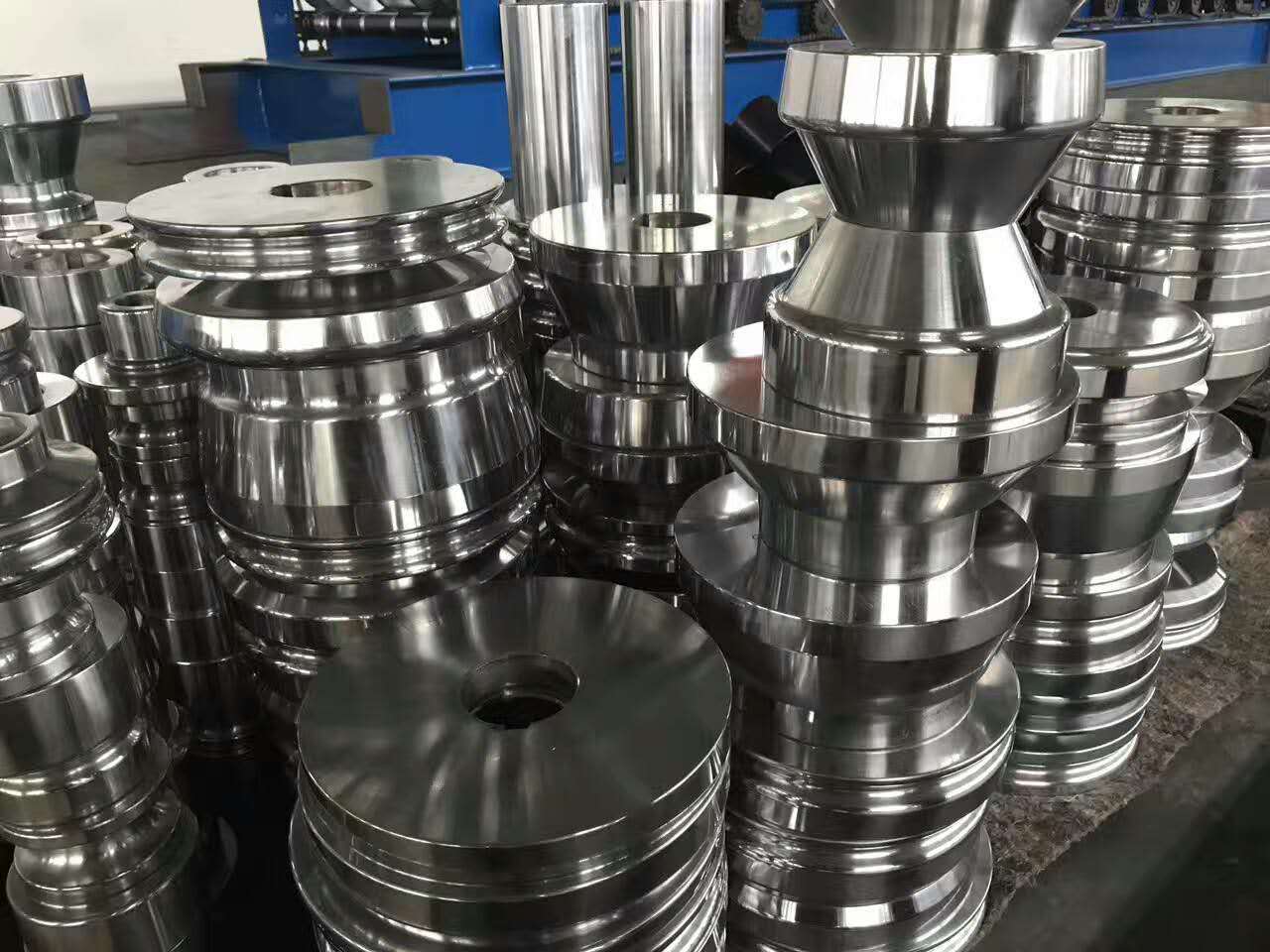

Roller material

No.45 forged steel, plated hard chrome on the surface of roller with thickness 0.05mm

Active shaft material

45#steel with high frequency surface treatment and grinding process

Cutter blade

Cr12 mould steel with quenched treatment at 62--65°C

Transmission type

Chains and gears

Controlling system

Computer automatic control

PLC

computer adopt Mitsubishi PLC

Computer operating board



Touching screen, Delta



3. other detailed info

No.

Name

Note

1

Delivery date

20-30 days after get deposit

2

Mini order

1 set

3

Loading container

20 or 40GP

4

Payment term

30% deposit by TT, balance finish before shipment

Fob, CNF, CIF all ok

5

Loading Port

Tianjin port ,China. (Other port optional)

6

Certification

CE,ISO,CIQ, C.O or other certification you need.

7

Exporting countries

Global

8

Exporting years

From 1998


4.Machine components

No.

Name

Note

Set

1

Decoiler

Manual (Hydraulic for optional)

Loading weight: 5 -10 Ton

Max suitable coil width:1250mm



1

2

Feeding device

To guide coil into machine

1

3

Main roll forming

13 steps to form the desired profile

1

4

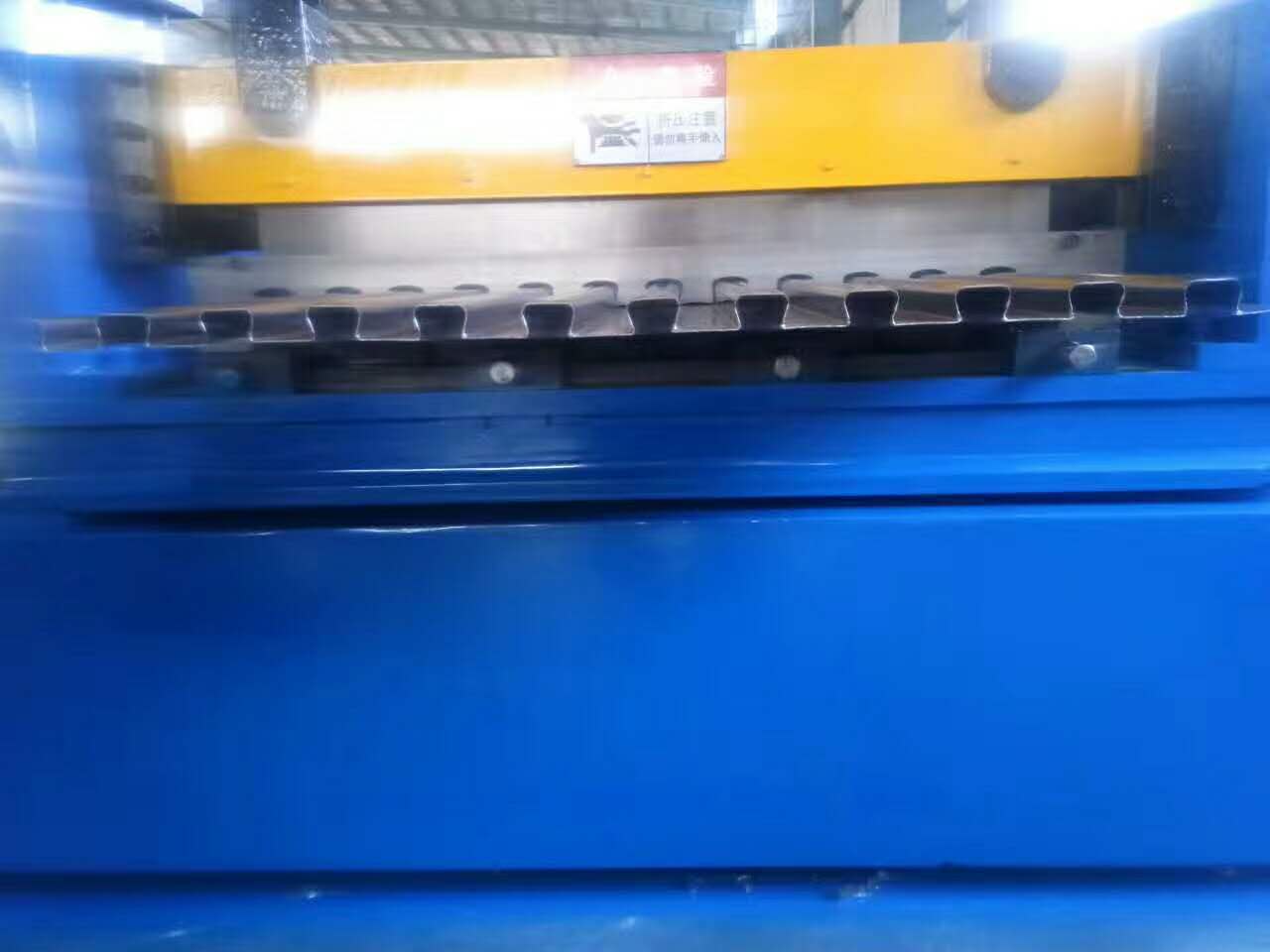

Hydraulic cut

Cut the desired length automatically

1

5

Hydraulic system

Provide power to cutting

1

6

PLC control box

All program is setted in it and it control the whole machine working automatically

1

7

Set off table

Get the formed panel which come out of the machine

6 meters

8

Machine legs

Added on machine to increase machine height for tall workers

4
