automatic crimple curving machine
Product Name:
automatic crimple curving machine
No. :
:
:

Product Description:

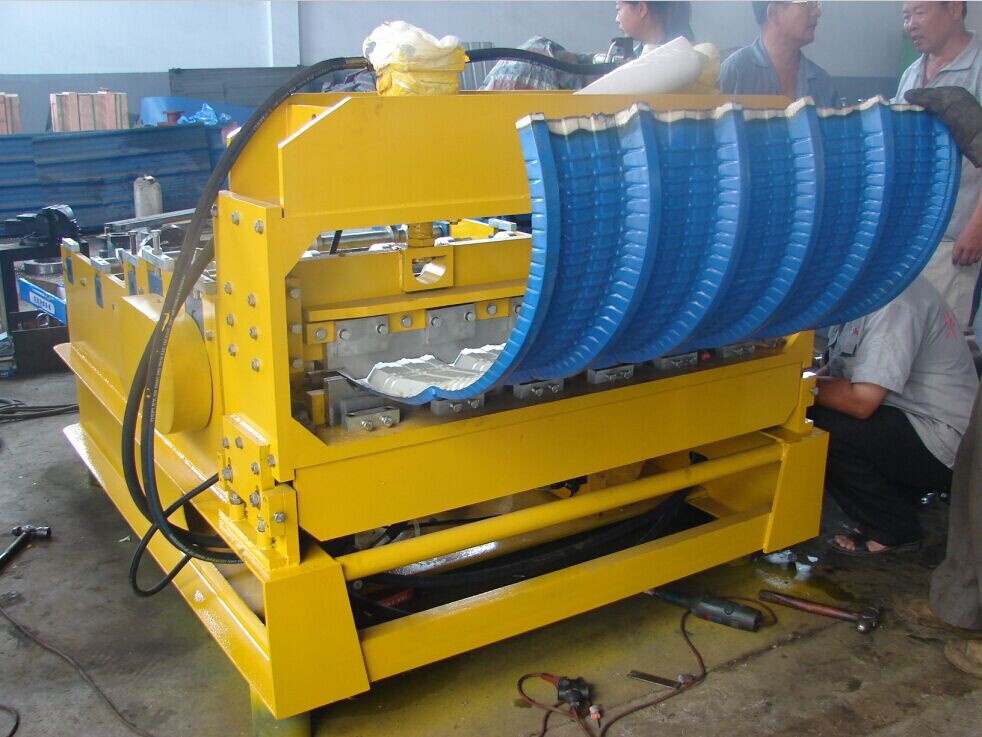

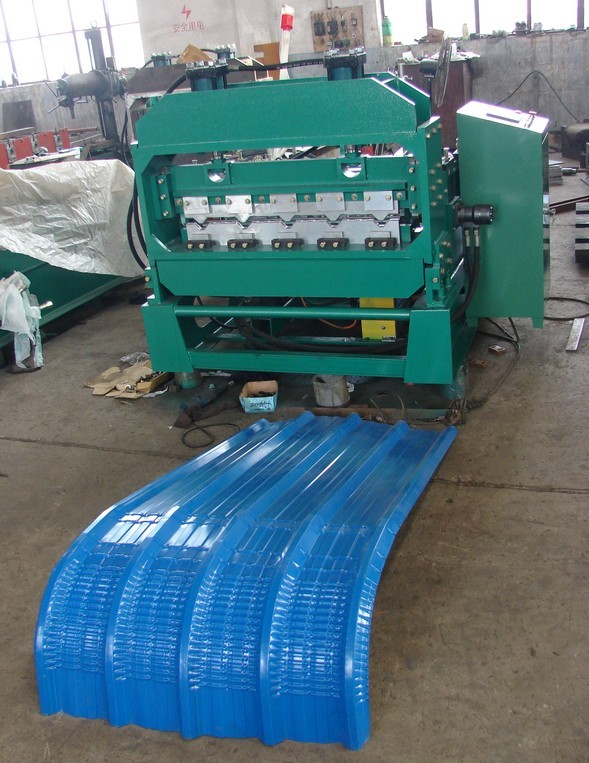

 Automatic crimple curving machine

Technical specification

1. Hydraulic Motor power:4KW

2. Voltage: 3 phase 380v 50hz

3. Roller steps:5

4. Shaft diameter: two steps are 75mm, other three steps are 50mm

5. Suitable material thickness:0.28-0.8mm

6. Suitable material: colored coil. Galvanized is also ok, but it can not get so nice shape as colored coil since galvanized coil is too fragile.

7. Drived by hydraulic hose system

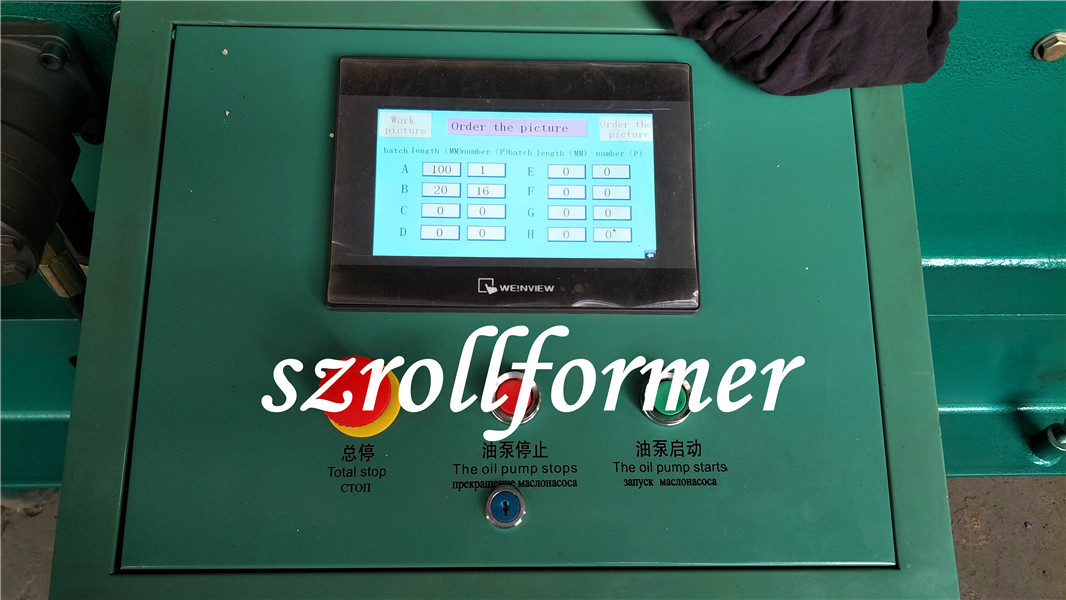

8. PLC control box: Delta PLC, WEINVIEW touch screen.

9. Thickness:0.28-0.8mm

10. Sheet width max:1250mm

11. Weight: 1800kgs


electric control system
