falling water rollformer for Colombia market
Product Name:
falling water rollformer for Colombia market
No. :
:
:

Product Description:

 falling water rollformer for Colombia market

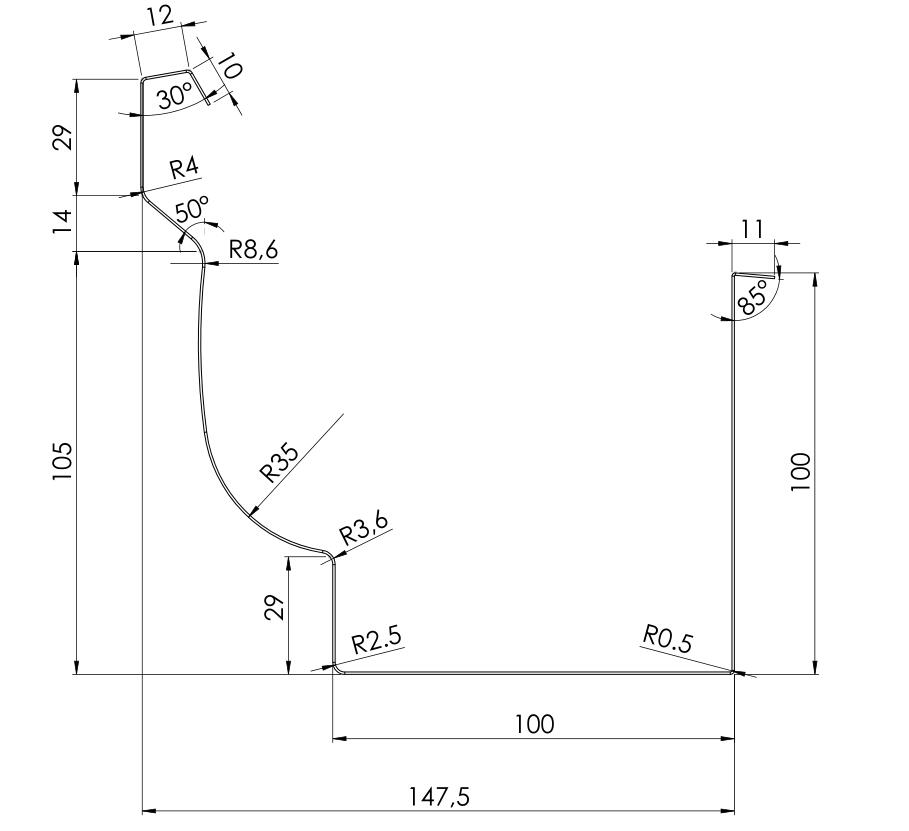

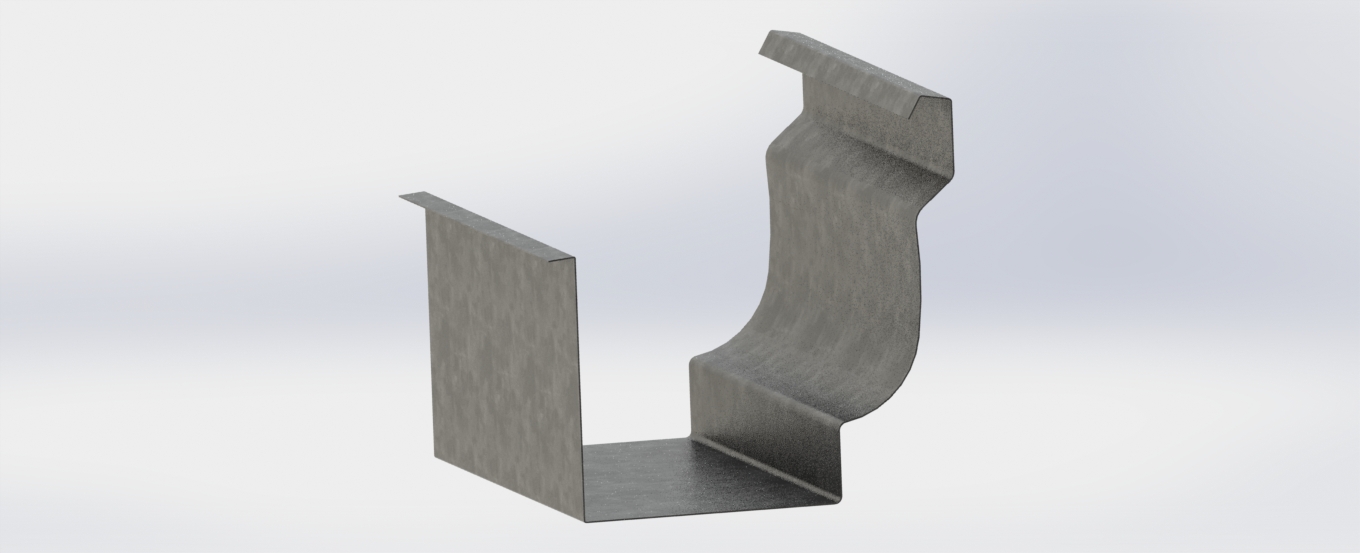

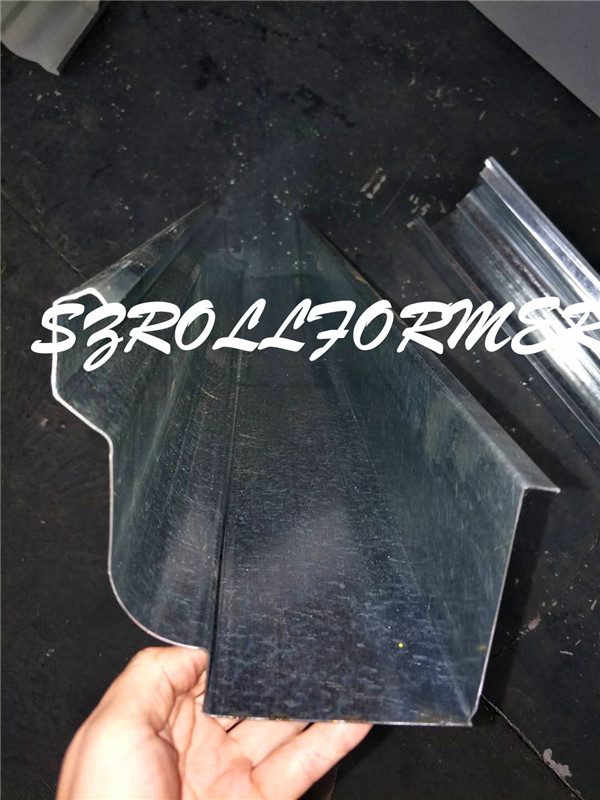

1. profile




2. rollformer parameters

Performances

Parameters



Suitable material

Galvanized coil

Material size and thickness

Thickness:0.55-0.9mm

Raw material width:395mm

Productivity

Up to 15m/min

Roller forming steps

19 steps forming rollers

Roller material

No.45# steel after quenching and with chromium.

Diameter of active shaft

Φ65mm

Main machine structure

350H

Wall plate

14mm

Power

5.5KW main motor,cycloidal reducer work stable and no noise

Shear

Hydraulic shear,

cutting automatically,

blade material CR12,

Blade will not damage the profile, before machine leave factory, we test the machine and rolling the panel many times.

Transmission

1’’ chain hanging inside of main structure

Control system

Delta PLC computer control system with Delta inverter to ensure precision;

Winwen color touch screen.

Program is made by English.

working mode: automatic and manual .

We insert the program into the PLC already . We will test machine with the Control system here before machine leave factory.

Hydraulic system

3kw hydraulic motor and large oil pump

Voltage

440V/3 phase/60hz

Set off table

Two pcs, 5 step roller and adjustable screw, each is 3000mm long

Size(length*width*height)

9000*800*900MM

Weight

4500kgs

Component

Upgrade manual decoiler-forming part-shear blade device--hydraulic system-PLC computer control cabinet-set off table



Note: this machine is ok to make thickess from 0.35mm-1.2MM
