Another type 10 Ton Lateral moving hydraulic auto decoiler
Product Name:
Another type 10 Ton Lateral moving hydraulic auto decoiler
No. :
:
:

Product Description:

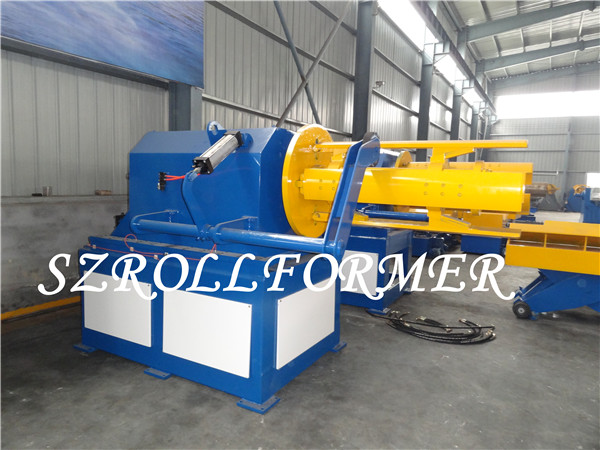

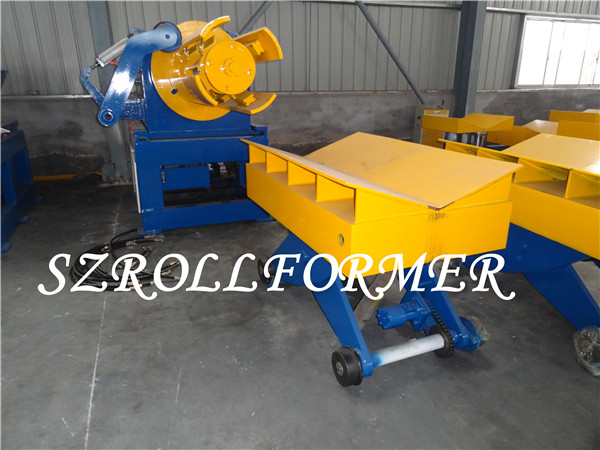

 Another type 10 Ton Lateral moving hydraulic auto decoiler
This is our another type laterial moving hydraulilc auto decoiler.
it is easy for you to match the roll forming machine center. moving size is
 left and right 250mm or as your need.


Machine parameters:

1. suitable coil width ≤1300mm

2. uncoiler Size: up cabinet box:L*W*H:2300*1500*500mm

         bottom cabinet box: L*W*H:2300*1800*850mm

3. Main motor power:5.5kw

4. Hydraulic system : pump motor is 4 kw

5. Tolerate weight≤10T

6. Inner diameter:480-560mm

7. Carriage life oil cylinder diameter: 125mm

8. Up and down strok cylinder:250mm

9. Max working speed :30m/min

10.Weight About: 4000kgs

11.working mode: automatically

12. Voltage: 3phase 440v 60hz

13. main uncoiler move size: left and right 250mm

14. Auto uncoiler with carriage components:

   uncoiler-hydraulic system--electric box with inverter- carriage

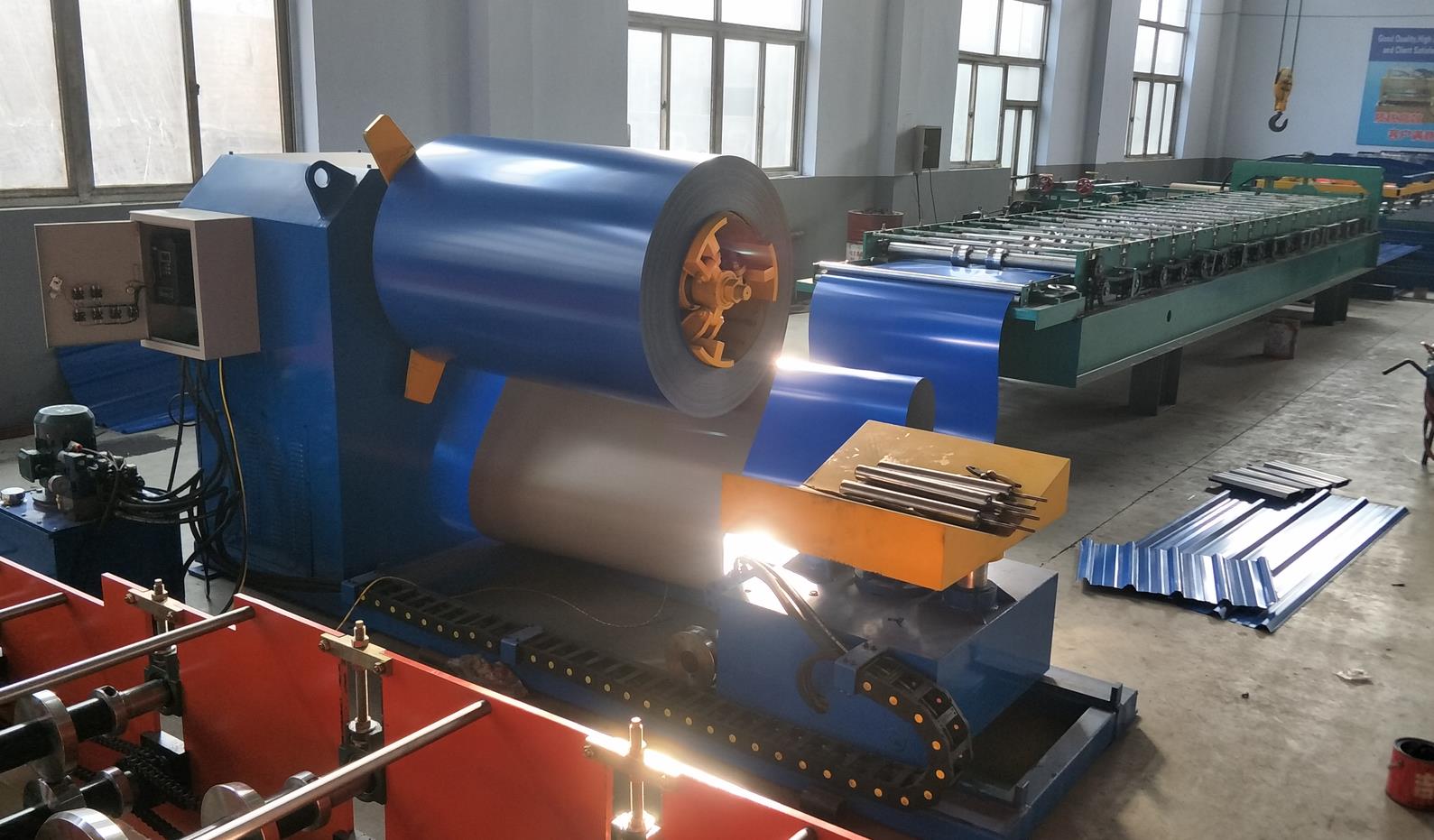

how auto decoiler working with rollforming machine
