Fulling automatic rolling Shutter door bending machine for Europe market
Product Name:
Fulling automatic rolling Shutter door bending machine for Europe market
No. :
:
:

Product Description:

 Fulling automatic rolling Shutter door bending machine for Europe market

we are factory and professional with different size shutter door machine.

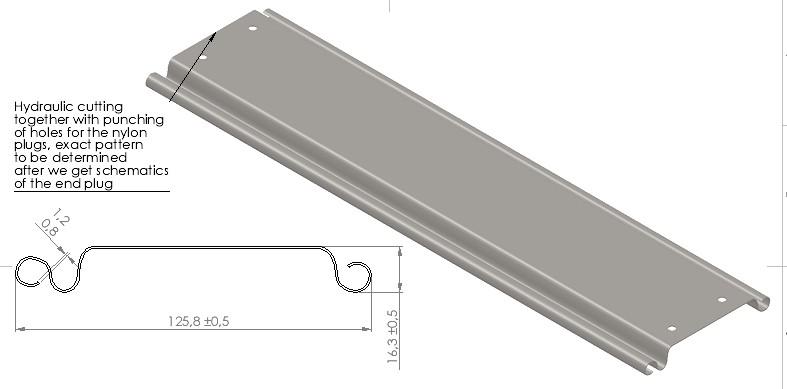

1. profile with size(you can provide you size and we can make total same machine)

2. machine detailed parameters

Performances

Parameters

we sell machines to Europe market from 2010 year.

Suitable material

galvanized coil or colored coil

Suitable material

Effective width after forming:165mm or 175mm

thickness 0.8-1.2mm

Productivity

9-10m/min

Roller forming steps

13 steps main forming+ 5 steps straight rollers

Roller material

45# steel with quenched treatment , polishing and do thick chromium

Diameter of active shaft

φ42mm, roller out dia. 108-118mm

Main machine body

Wall plate thickness 16mm . main structure 10# thick groove steel welded structure

Power

3KW main motor, cycloidal gear speed reducer work stable and no noise

Shear part

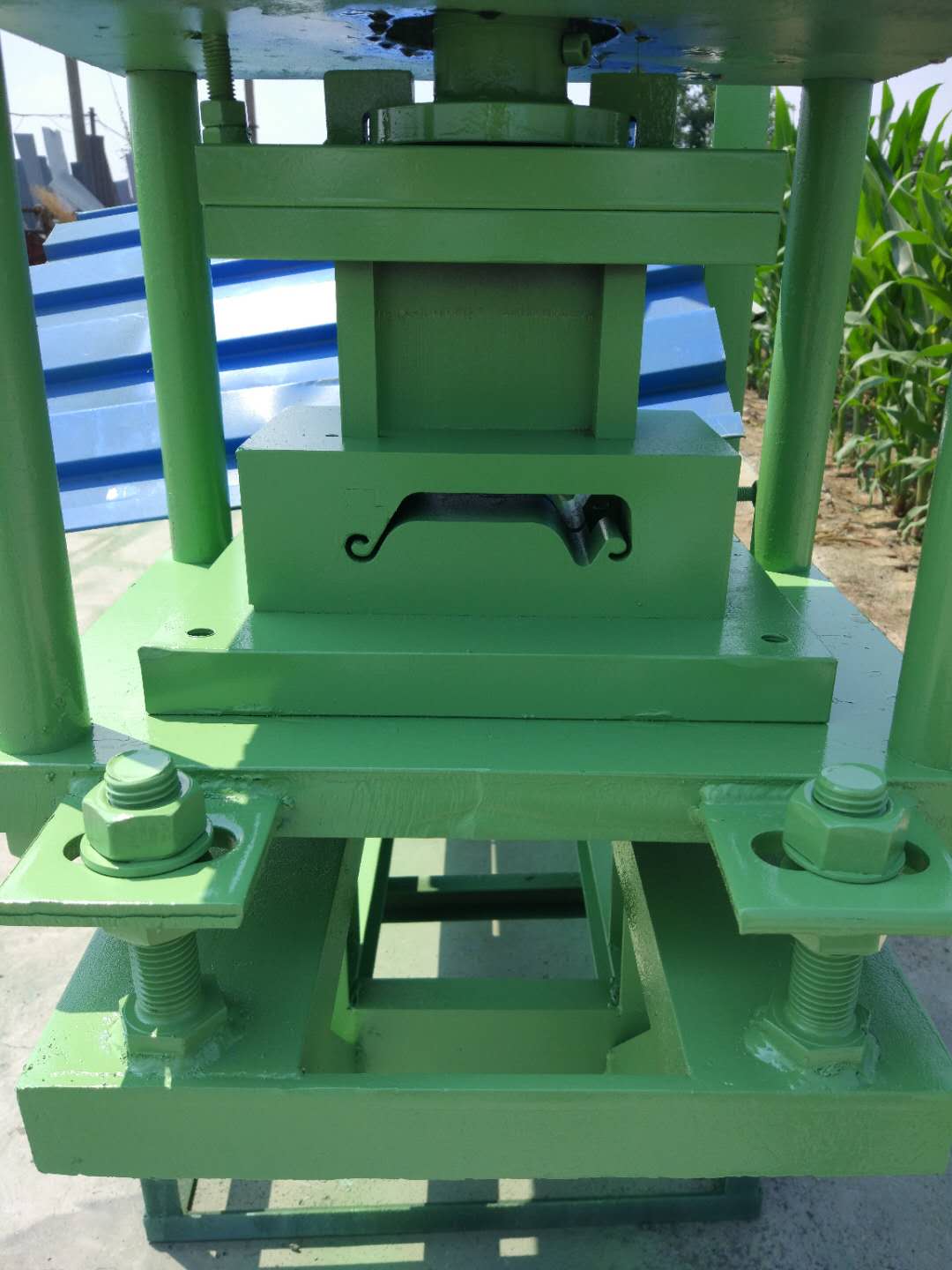

hydraulic mould cutting device, control by program and work automatically

Hole and key&lock cut all finish by mould cutting device.

Cutting blade material CR12

Hydraulic system

4kw hydraulic motor with oil pump

Control system

Delta PLC computer control system with 4KW Delta inverter to ensure precision; Winwen color touch screen.

Program is made by English or your local language,

working mode: automatic and manual

Transmission

Gear and chain 1’’

Voltage

AC380V/50HZ/3 phase or as your local power

Size(length*width*height)

4370*800*1500mm

Component

Uncoiler-forming part-hydraulic mould cutting device-hydraulic system-PLC control box- reception table

Machine color

As your need

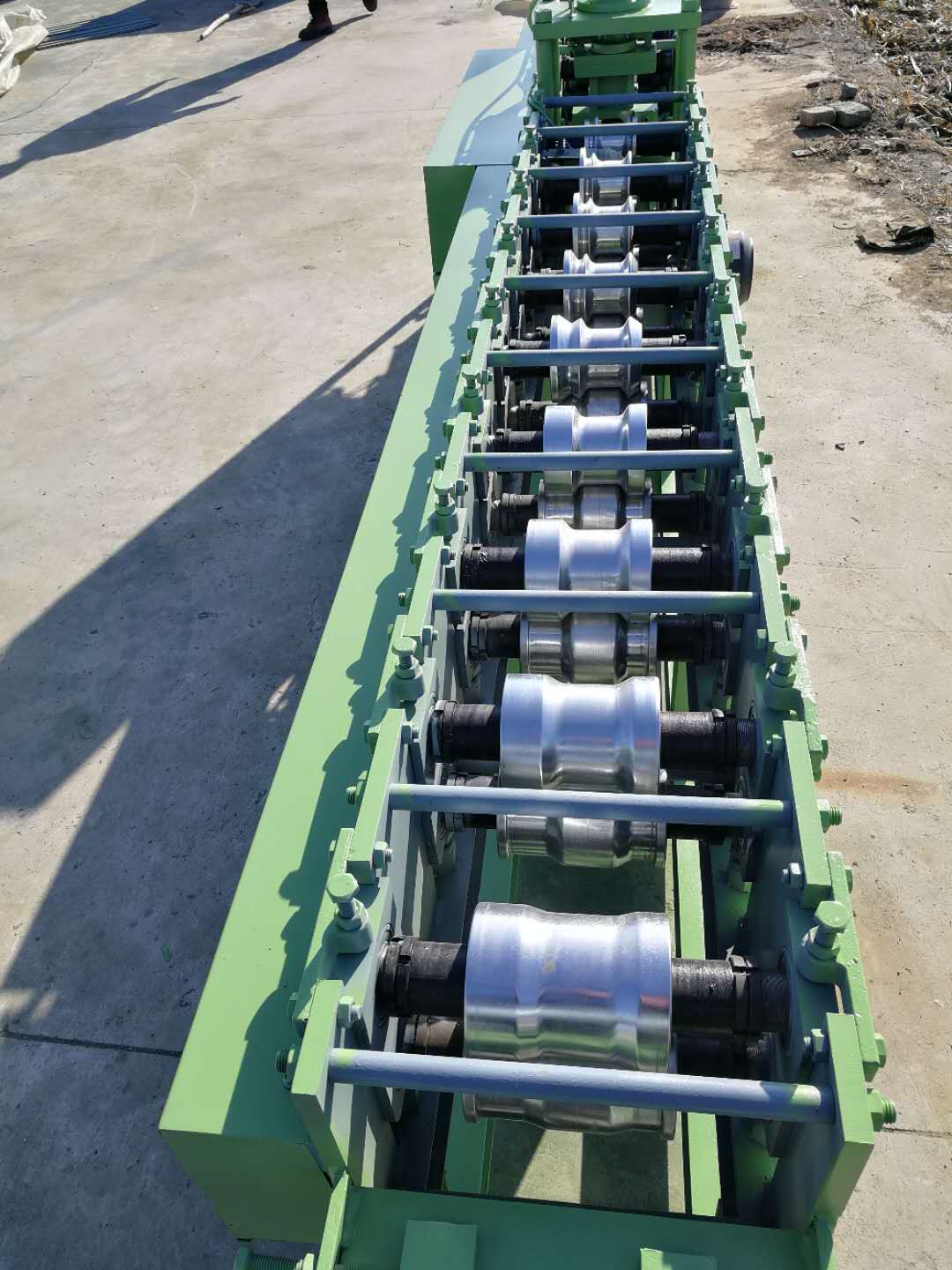

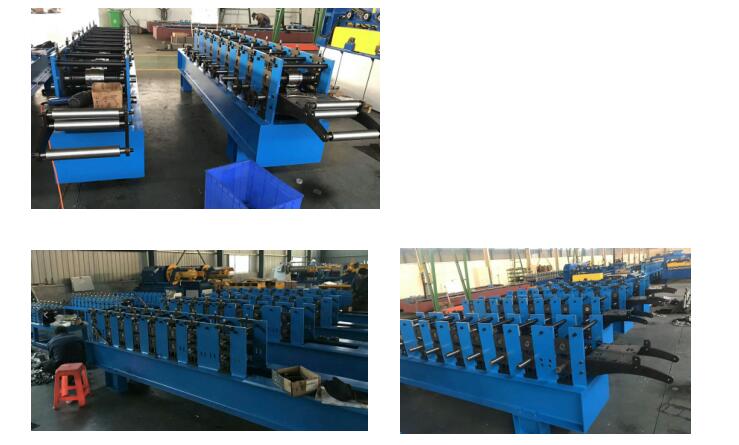

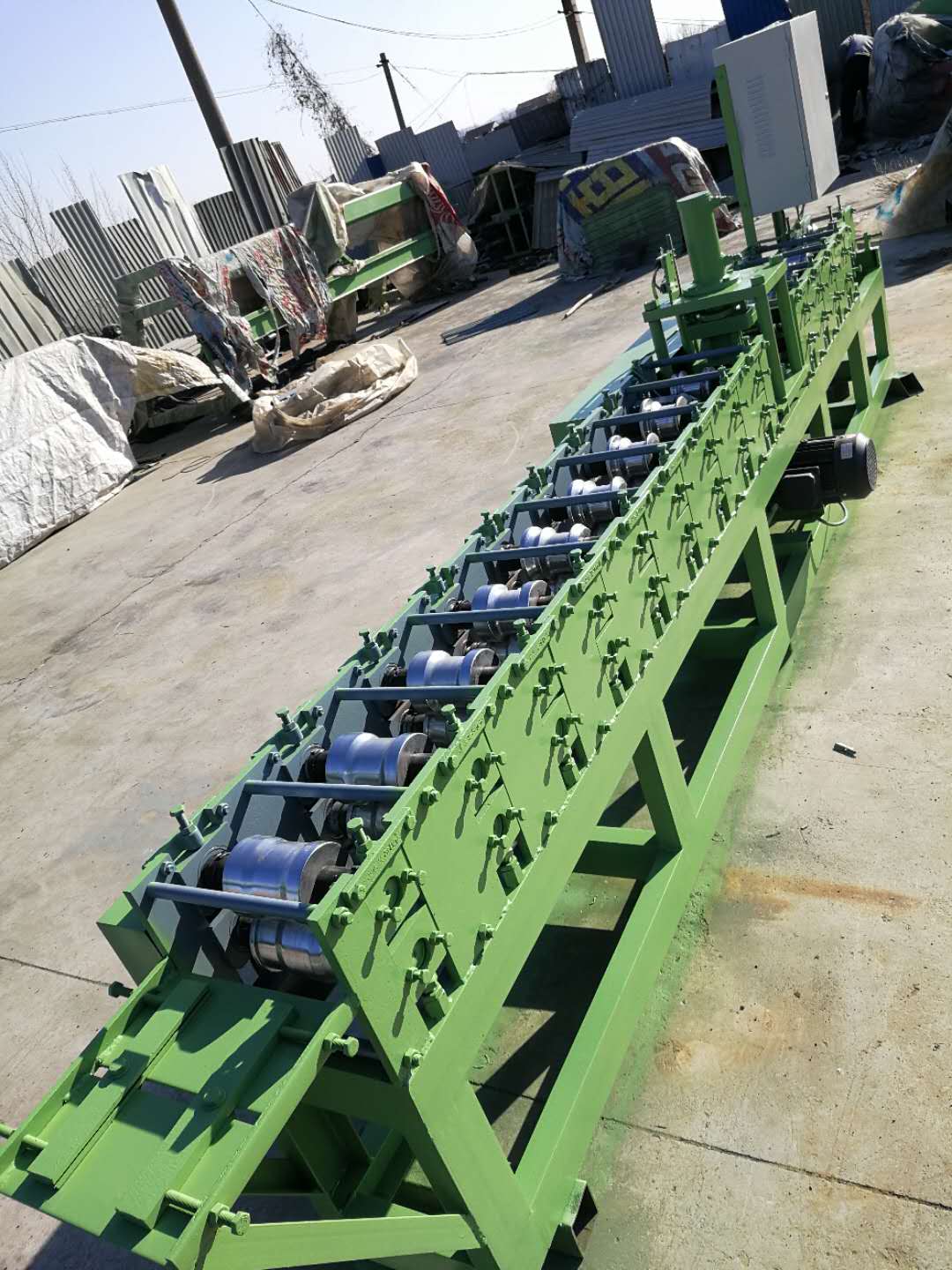

3. machine pictures

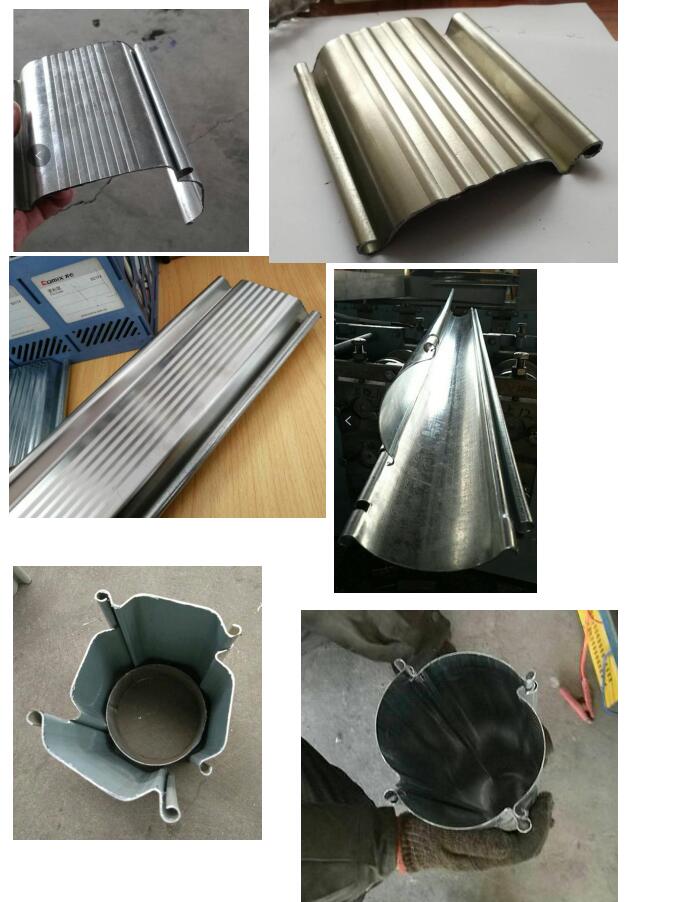

4. shutter door panel made by our machine
