5-10 Ton auto uncoiler with carriage and lateral move
Product Name:
5-10 Ton auto uncoiler with carriage and lateral move
No. :
:
:

Product Description:

 5-10 Ton auto uncoiler with carriage and lateral move

Machine parameters:

1. suitable coil width ≤1300mm

2. uncoiler Size: up cabinet box:L*W*H:2300*1500*500mm

              bottom cabinet box: L*W*H:2300*1800*850mm

3. Main motor power:4kw ,use better quality motor brand GUOMAO

4. Hydraulic system : pump motor is 4 kw

5. Tolerate weight:5-10 Ton or as your need

6. Max inner diameter:610mm or as your need

7. Carriage life oil cylinder diameter: 125mm

8. Up and down strok cylinder:250mm

9. Max working speed :0-20m/min

10.Weight About: 3000kgs

11.working mode: automatically

12. Voltage: 3phase 440v 60hz

13. main uncoiler move size: left and right 250mm

14. Auto uncoiler with carriage components:

   uncoiler-hydraulic system--electric box with inverter- carriage

Spare parts we bring for you free

1. button, two        2. switch, two     3. limit switch: two

4. Electrical insurance: two      5.air switch: two  6. machine paint: one small box

7. Solenoid valve:two       8 . Machine install and operation manual: one

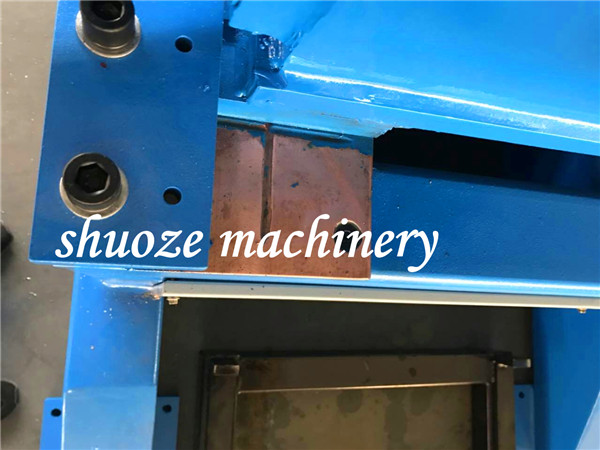

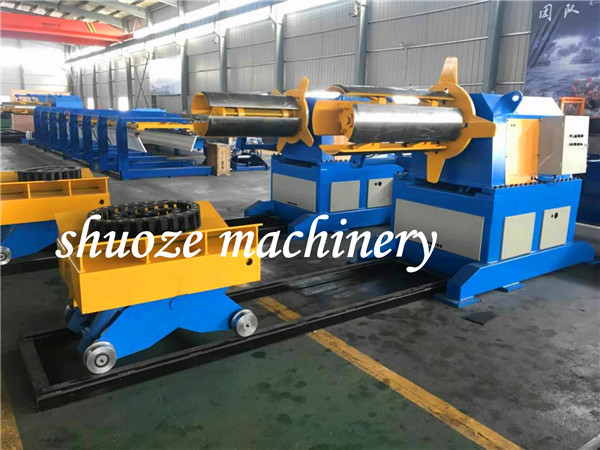

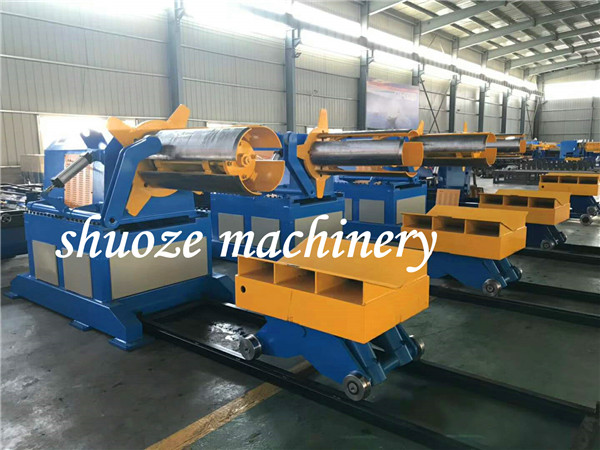

uncoiler photo
