This PBR machine is customized for USA market, we have been manufacuting machines for USA from 2009 year and better know their popular appearance and design.

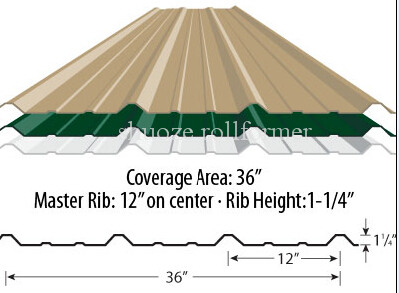

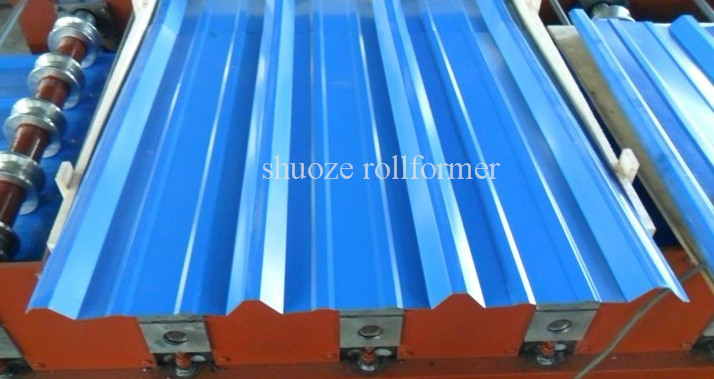

A profile with size
|
Wave height |
1.25'' |
|
Wave length |
12'' |
|
Cover width |
36'' |
|
Coil width |
43'' |
|
Thickness of material plate |
22 or 26guage |
B parameters
|
No. |
main parameter of PBR metal roofing Rolling Machinery |
|
|
1 |
Suitable to process |
Color steel plate/Galvanized coil |
|
2 |
Width of the plate |
43'' |
|
3 |
Rollers |
17 rows |
|
4 |
Dimensions |
8000mm*1550mm*1510mm |
|
5 |
Power |
3+3kw |
|
6 |
Thickness of the plate |
0.3-0.8mm |
|
7 |
Productivity |
8-12m/min |
|
8 |
Diameter of the roller |
Φ70mm |
|
9 |
Weight |
About 5500kgs |
|
10 |
Voltage |
220V 60Hz single phase/3 phase |
|
11 |
Material of the cutting plate |
Cr12 |
|
12 |
Hydraulic |
40# oil |
|
13 |
Processing precision |
Within 1.00mm |
|
14 |
Control system |
Delta PLC control |

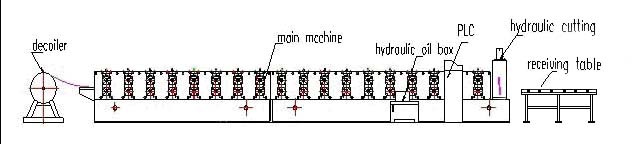

C. flow chart of PBRmetal rollformer Machine
D machine components
|
Machine components |
||||
|
No. |
Name |
Note |
Set |
|
|
1 |

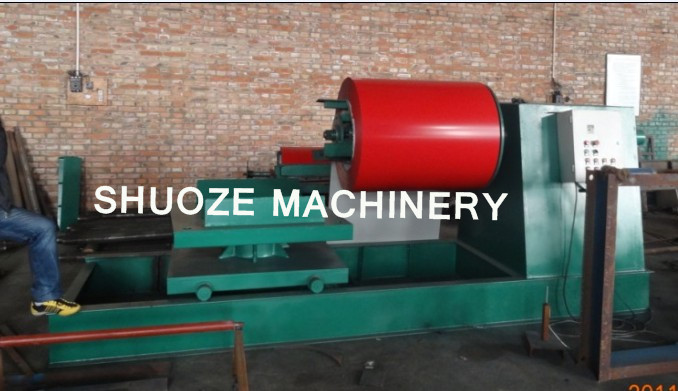

Decoiler |
Manual (Hydraulic decoiler with carriage for optional) Loading weight: 5 -10 Ton Max suitable coil width:1250mm |
1 |
|
|
2 |
Feeding device |
To guide coil into machine |
1 |
|
|
3 |

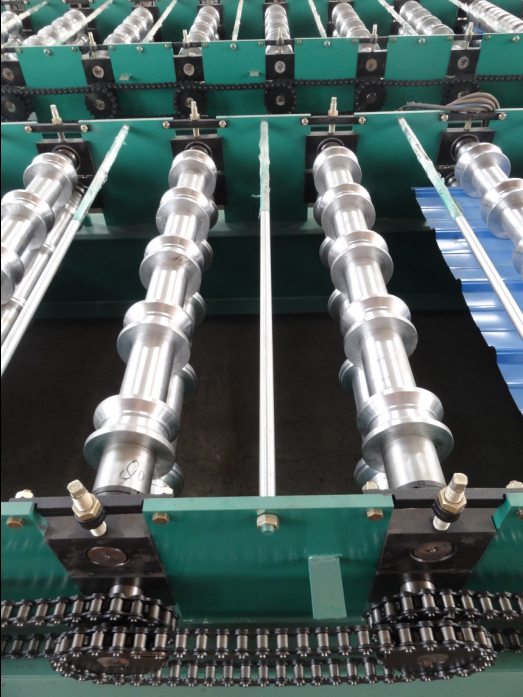

Main roll forming |
17 steps to form the desired profile |
1 |
|
|
4 |

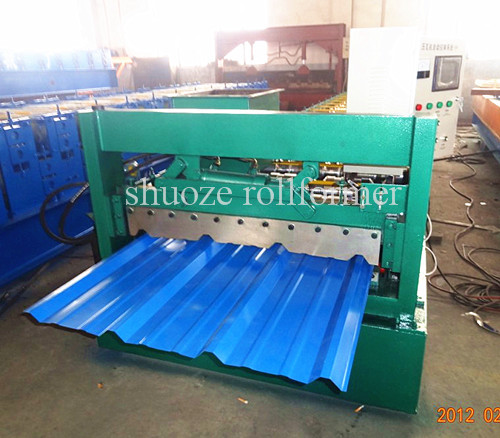

Hydraulic cut |
Cut the desired length automatically |
1 |
|
|
5 |

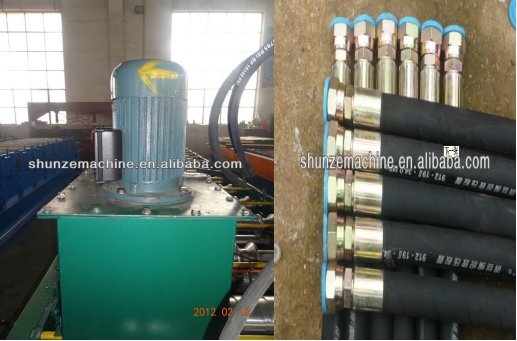

Hydraulic system |
Provide power to cutting |
1 |
|
|
6 |
PLC control box |
All program is setted in it and it control the whole machine working automatically |
1 |
|
|
7 |
Set off table |
Get the formed panel which come out of the machine |
6 meters |
|
|
8 |
Machine legs |
Added on machine to increase machine height for tall workers |
4 |
|
decoiler(5 ton auto decoiler with carriage for optional)
machine rollers, spacers, balance bar and screw all do Chromium
hydraulic system with best quality hose and big tank
set off table with height adjustable legs and 8 rollers to make it easy for fork to work on panels
