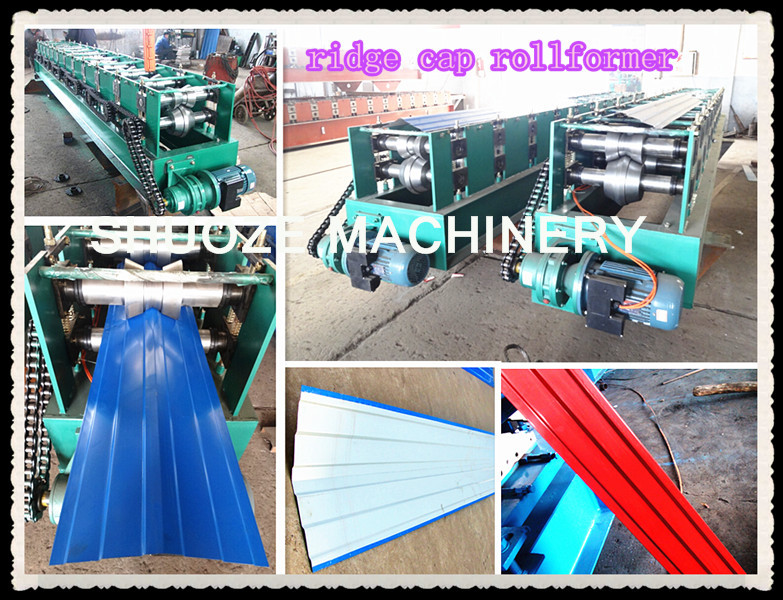

RIDGE CAP ROLLFORMER
Product Name:
RIDGE CAP ROLLFORMER
No. :
Product Description:
RIDGE CAP ROLLFORMER
Quick Details
Condition:New
Type:Tile Forming Machine
Tile Type:Colored Steel
Use:Roof
Production Capacity:8-12m/min or 25m/min
Model Number:457mm
Power(W):3KW
Voltage:220V or 380V
Dimension(L*W*H):7000*1250*1300mm
Weight:4000kgs
Certification:CE,BV,ISO
Warranty:12 month
After-sales Service Provided:Engineers available to service machinery overseas

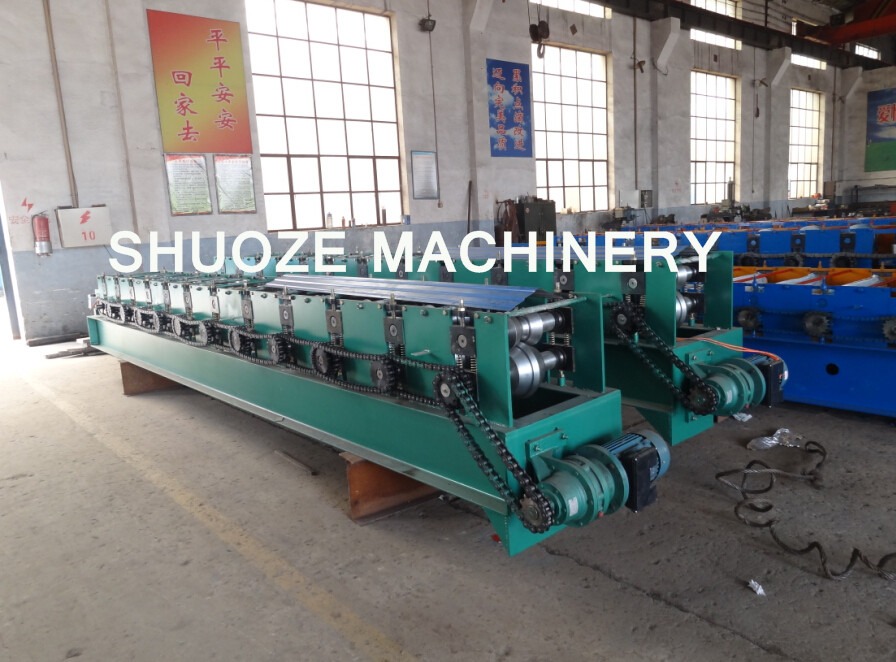

1 Fully Automatic Ridge cap rollformer can roll forming metal panel which is mostly used with colorful roofing tile sheets. After roll formed by this roll forming machine, the surface will be very smooth and beautiful without any scratch on surface.
2 we also can do a custom roll forming machine, We can design the machine according to your specification and profile drawing.
3 One ridge cap rollformer only can produce one profile.

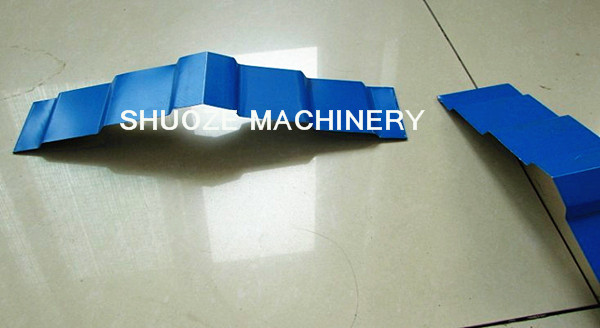

The following profile drawing are some examples for your reference.
parameters
|
No.
|
main parameter of Roof Ridge Cap Forming Machine
|
|
|
1
|
Suitable to process
|
Color steel plate/galvanized sheet
|
|
2
|
Width of the plate
|
475mm
|
|
3
|
Rollers
|
13 rows
|
|
4
|
Dimensions
|
7000mm*1550mm*1510mm
|
|
5
|
Power
|
3+3kw
|
|
6
|
Thickness of the plate
|
0.3-0.8mm
|
|
7
|
Productivity
|
8-12m/min
|
|
8
|
Diameter of the roller
|
Φ70mm
|
|
9
|
Weight
|
About 4000kgs
|
|
10
|
Voltage
|
220V 60Hz single phase or 380V
|
|
11
|
Material of the cutting plate
|
Cr12
|
|
12
|
Hydraulic
|
40# oil
|
|
13
|
Processing precision
|
Within 1.00mm
|
|
14
|
Control system
|
Panasonnic PLC control
|
1. Suitable to process：Color steel plate/galvanized sheet
2. Thickness of raw material: 0.3-0.8mm (22-29 guage)
3. Width of raw material: 370mm
4. Forming rollers steps: 12
5. Diameter of main shaft: 70mm
6. Main power: 3KW brand is Shanghai Lichao
7. Voltage: 220V 60Hz single phase or 3 phase/ 380V 50Hz 3 phase
8. Weight: 3000kgs
9. Machine size(length*width*height): 6000*600*1000mm
10.manual decoiler:Max loading weight:5000kgs, loading coils width 500mm
11. Set off table: one pcs, 6 step roller, each is 3000mm long
12. Component: Upgrade manual decoiler-guide feeding-forming part--set off table
