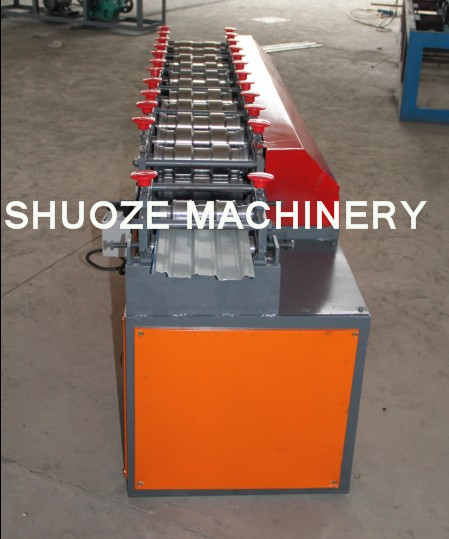

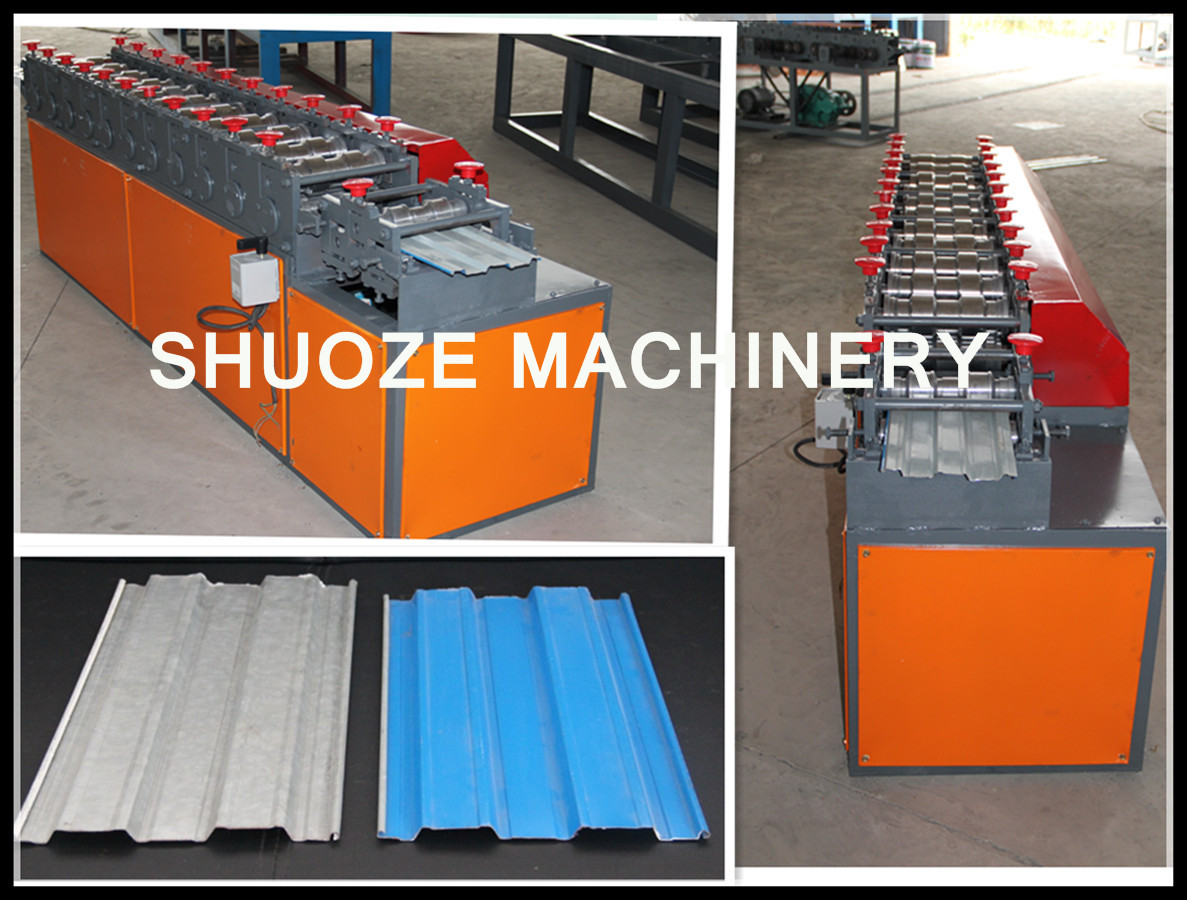

250 Australia type shutter door machine
Product Name:
250 Australia type shutter door machine
No. :
Product Description:
250 Australia type shutter door machine
1. CE and ISO certification
2. fully automatic
3. we are factory
2. fully automatic
3. we are factory
Raw material width:250mm

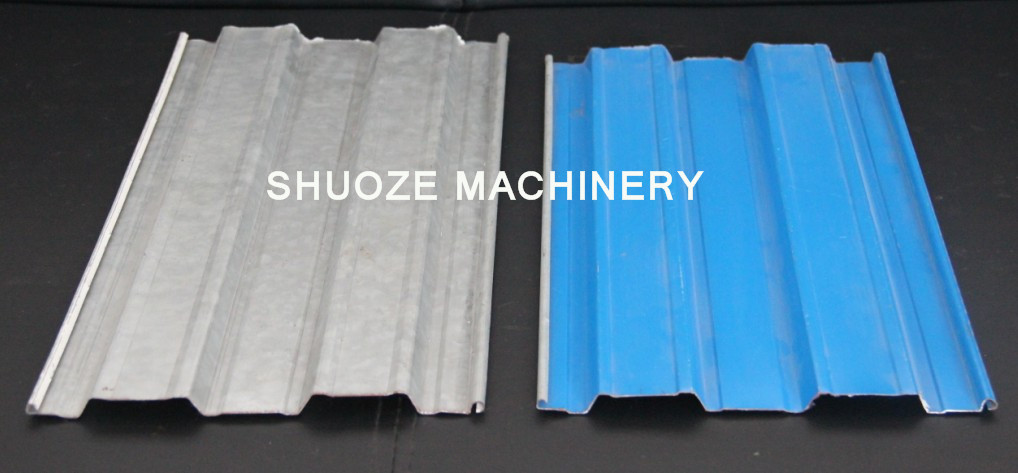

panel width after forming:200mm
material thickness:0.3-0.8mm
these sizes can be changed as your need.
|
Performances
|
Parameters
|
|
|
Suitable material
|
Zinc coated sheet or galvanized coil or colored coil
|
|
|
Suitable material
|
Feeding width 250 mm(raw material width can be changed as your need)
thickness 0.3-0.8mm( this can be changed also)
|
|
|
Productivity
|
6-10m/min
|
|
|
Roller forming steps
|
12 steps forming
|
|
|
Roller material
|
Bearing steel with quenched treatment 55-60°C
|
|
|
Diameter of active shaft
|
φ40mm
|
|
|
Main machine body
|
thick groove steel welded structure
|
|
|
Power
|
3KW motor +250 type reducer
|
|
|
Shear
|
Fly saw
|
|
|
Transmission
|
Gear and chain
|
|
|
Voltage
|
AC380V/50HZ/3 phase
|
|
|
Size(length*width*height)
|
3000*600*900MM
|
|
|
Component
|
Upgrade decoiler-forming part
|
|
