Barral spanish tile rollformer
Product Name:
Barral spanish tile rollformer
No. :
Product Description:
Barral spanish tile rollformer

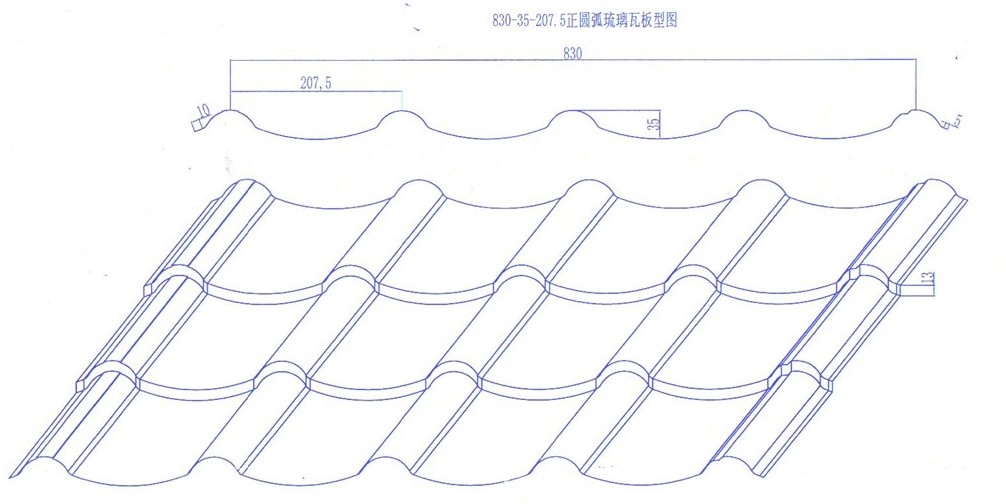

1. profile with detailed size
we are factory and are capable of designing machine as your size.
2. Detailed rollformer pameters:
.
|
Performances
|
Parameters
|
|
|
Suitable material
|
PPGI or galvanized coil
|
|
|
Suitable material
|
Raw material width:40.875''
thickness 26-29guage or 0.0142''
|
|
|
Productivity
|
12-15m/min
|
|
|
Roller forming steps
|
14 step
|
|
|
Roller material
|
45# after heating treatment and with chromium
|
|
|
Spacer, balance bar, screw
|
All do chromium to ensure beautiful appearance
|
|
|
Diameter of active shaft
|
Φ70mm
|
|
|
Main machine structure
|
350H
|
|
|
Wall plate
|
16mm
|
|
|
Power
|
5.5KW main motor,cycloidal reducer work stable and no noise
|
|
|
Shear
|
Hydraulic shear, blade material CR12
|
|
|
Transmission
|
1’’ gear chain
|
|
|
Control system
|
Delta PLC computer control system with Chrizi inverter to ensure precision; Winwen color touch screen.
Program is made by English, working mode: automatic and manual
|
|
|
Hydraulic system
|
4kw hydraulic motor
|
|
|
Voltage
|
AC380V/50HZ/3 phase
|
|
|
Upgrade manual decoiler
|
Max loading weight:5000kgs,Inner Diameter:508-610mm,max coil width:1250mm
|
|
|
Set off table
|
one pcs, 6 step roller, each is 3000mm long
|
|
|
Size(length*width*height)
|
8000*1500*1500MM
|
|
|
Weight
|
6500kgs
|
|
|
Component
|
Upgrade manual decoiler-guide feeding-forming part-shear blade device--hydraulic system-PLC computer control cabinet-set off table
|
|

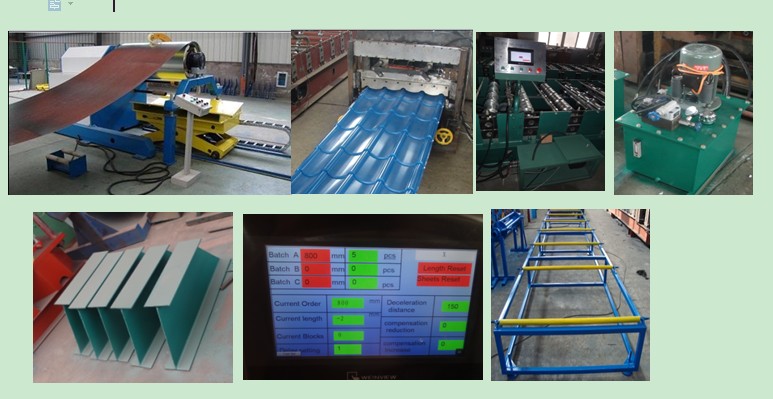

4. Rollformer main componnets.
