STANDARD RIDGE CAP 1954 Roll Forming machine
Product Name:
STANDARD RIDGE CAP 1954 Roll Forming machine
No. :
Product Description:
STANDARD RIDGE CAP 1954 ROLL FORMING MACHINE
we are factory and look for agent at whole world

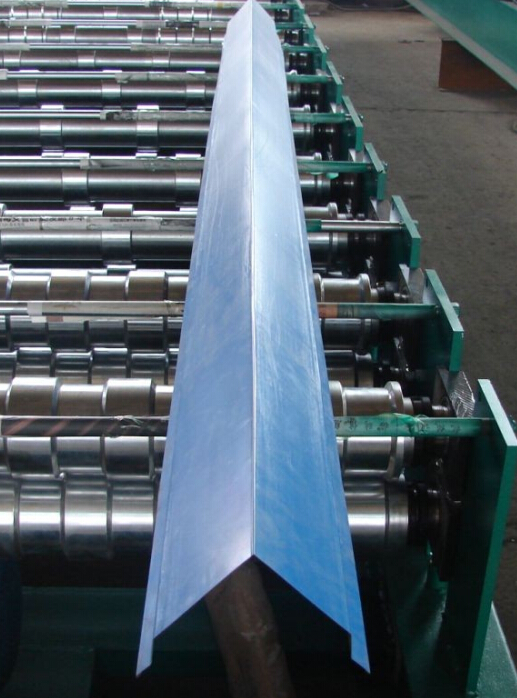

1 this Ridge Tile Forming Machine can roll forming metal panel which is mostly used with colorful roofing tile sheets.
After roll formed by this roll forming machine, the surface will be very smooth and beautiful without any scratch on surface.
2 we also can do a custom roll forming machine, We can design the machine according to your specification and profile drawing.
3 One Ridge Tile Forming Machine only can produce one profile. The following profile drawing are some examples for your reference.

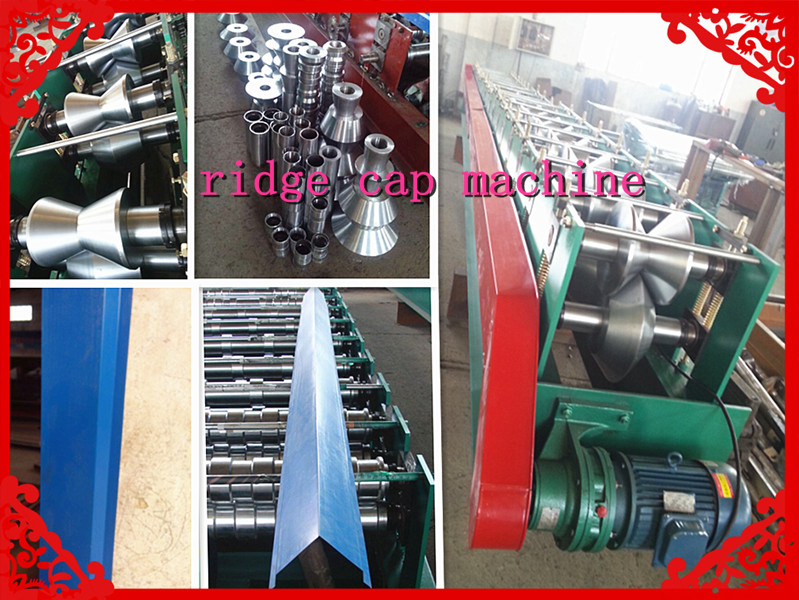

4. this ridge cap tile machine we designed into half automatic type without hydraulic mold cutting device. it operates very easily. you just open the machine switch, let machine rolling. put the right size panel into machine to get ridge cap panel.

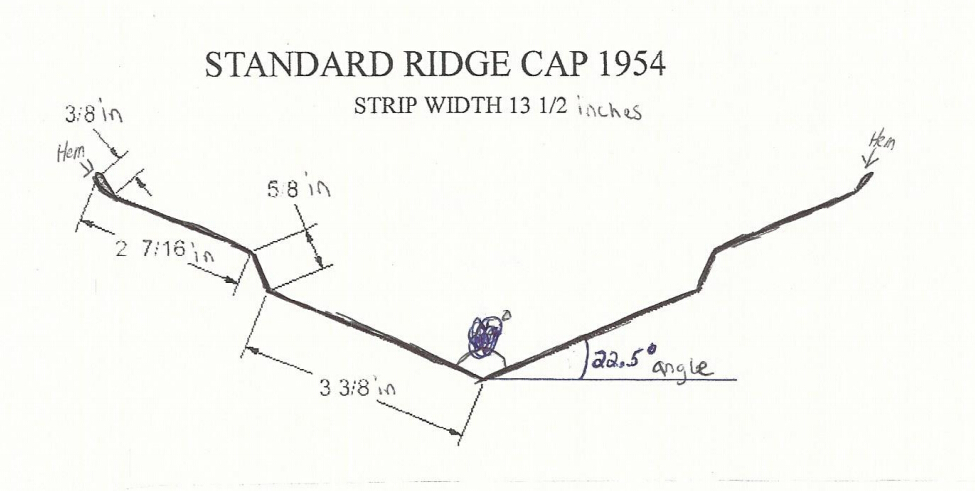

Ridge cap panel drawing
parameters
|
No.
|
main parameter
|
|
|
1
|
Suitable material
|
Color steel plate/galvanized coil
|
|
2
|
Width of the plate
|
14.5’’
|
|
3
|
Rollers
|
12 rows
|
|
4
|
Dimensions
|
6500mm*750mm*1200mm
|
|
5
|
Power
|
3kw
|
|
6
|
Thickness of the plate
|
0.3-0.8mm
|
|
7
|
Productivity
|
8-12m/min
|
|
8
|
Diameter of the roller
|
Φ70mm
|
|
9
|
Weight
|
About 3T
|
|
10
|
Voltage
|
220V 60Hz 3phases or single phase
|
|
11
|
Roller spacer balance bar screw
|
Do chrome
|
|
12
|
Machine for market
|
United States
|
other details:
|
No.
|
Name
|
Note
|
|
1
|
Delivery date
|
20-30 days after get deposit
|
|
2
|
Mini order
|
1 set
|
|
3
|
Loading container
|
20 or 40GP
|
|
4
|
Payment term
|
30% deposit by TT, balance finish before shipment
Fob, CNF, CIF all ok
|
|
5
|
Loading Port
|
Tianjin port ,China. (Other port optional)
|
|
6
|
Certification
|
CE,ISO,CIQ, C.O or other certification you need.
|
|
7
|
Exporting countries
|
Global
|
|
8
|
Exporting years
|
From 1998
|
