PLANOS PERFIL ANGULO Rollformer
Product Name:
PLANOS PERFIL ANGULO Rollformer
No. :
Product Description:

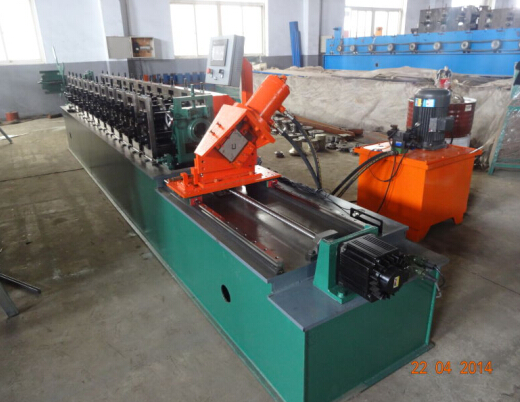

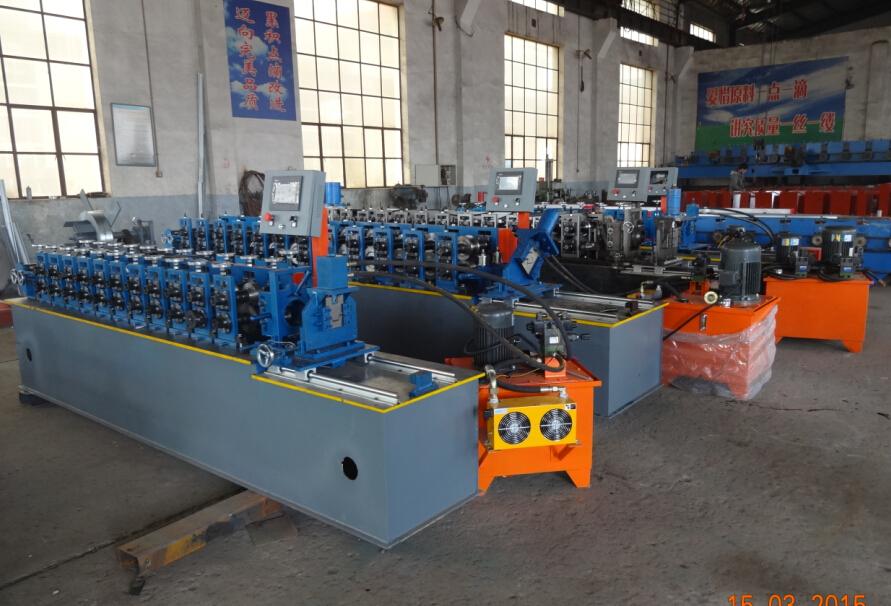

PLANOS PERFIL ANGULO ROLL FORMER

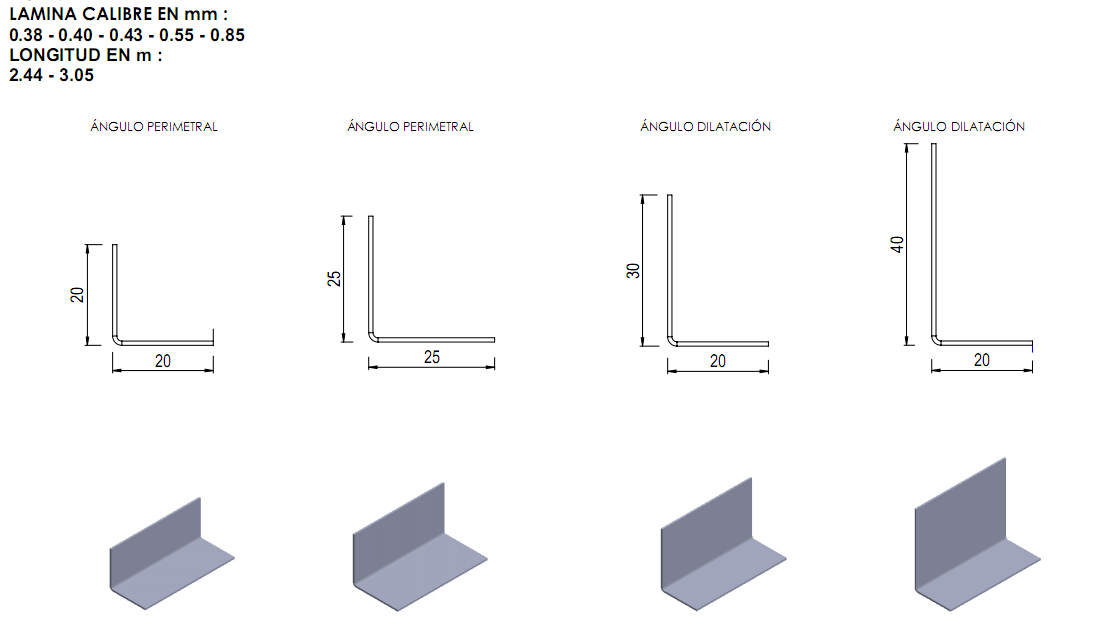

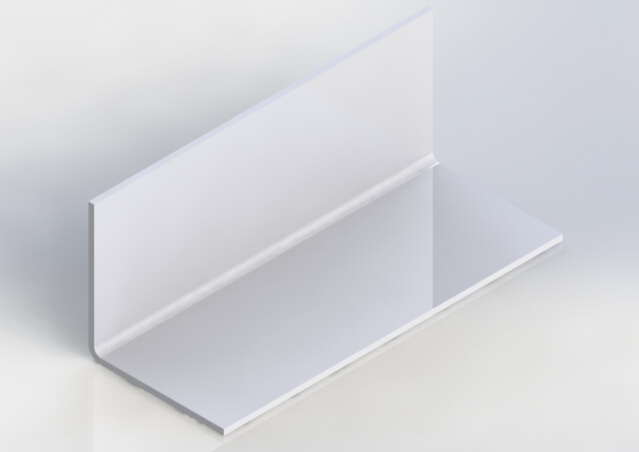

1.Profile size (we are factory and make any size rollformer as your need)
2. Rollformer detailed parameters
we use servo motor and not-stop cutting to ensure high working speed 40m/MIN
2. Rollformer detailed parameters
we use servo motor and not-stop cutting to ensure high working speed 40m/MIN
|
Performances
|
Parameters
|
|
|
Suitable material
|
galvanized coil ASTM A653
|
|
|
Material size and thickness
|
Size:20*20mm,25*25mm,
20*30mm,20*40mm
Thickness:0.35mm, 0.38mm, 0.40mm, 0,42mm
|
|
|
Productivity
|
40m/min
|
|
|
Roller forming steps
|
9 steps
|
|
|
Roller material
|
CR12
|
|
|
Diameter of active shaft
|
Φ40mm
|
|
|
Shaft material
|
High grade 45# steel, quenching and tempering treatment
|
|
|
Main machine structure
|
High grade steel sheet welding
|
|
|
Wall plate
|
16mm
|
|
|
Power
|
3KW main servo motor,cycloidal reducer work stable and no noise
|
|
|
Shear
|
Hydraulic shear cutting controlled by PLC,
blade material CR12
|
|
|
Transmission
|
Drive by gear.
|
|
|
Control system
|
Delta PLC computer control system with Delta inverter to ensure precision; color touch screen.
Program is made by English, working mode: automatic and manual
|
|
|
Hydraulic system
|
3kw hydraulic motor
|
|
|
Voltage
|
440V/3 phase/60hz
|
|
|
Set off table
|
yes
|
|
|
Size(length*width*height)
|
4500*600*1200MM
|
|
|
Weight
|
About 2500kgs
|
|
|
Component
|

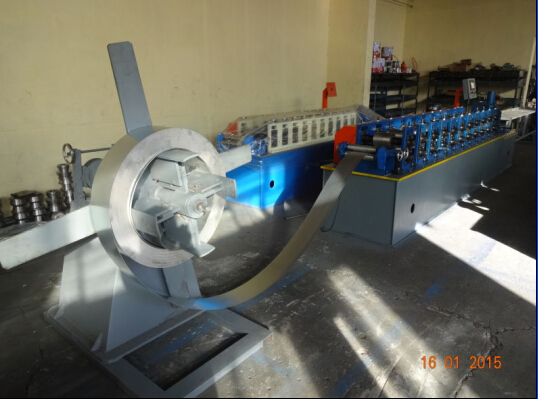

Upgrade manual decoiler-forming part-shear blade device--hydraulic system-PLC computer control cabinet-set off table
|
|
