Glazed Tile roll forming machine

Product Name:

Glazed Tile roll forming machine

No. :

Product Description:

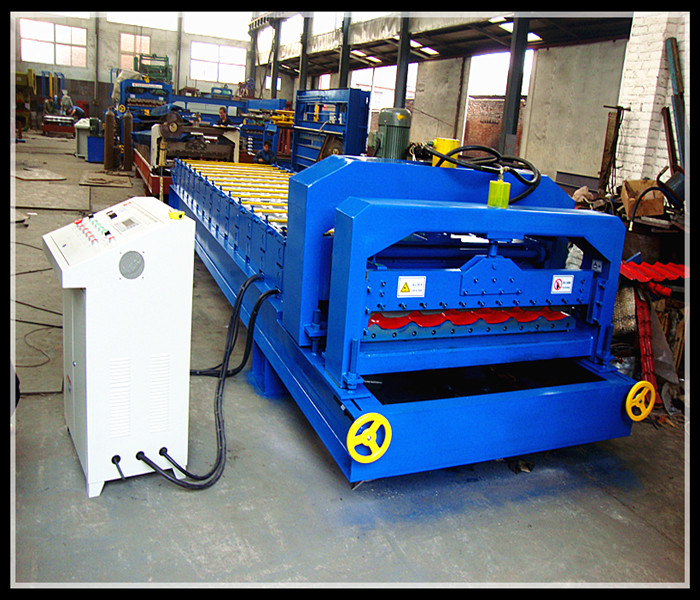

Glazed Tile roll forming machine

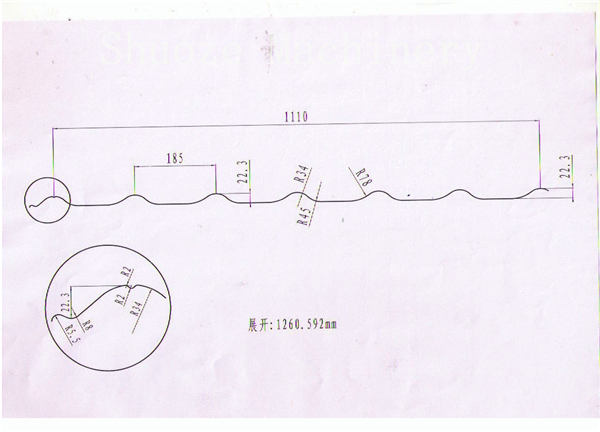

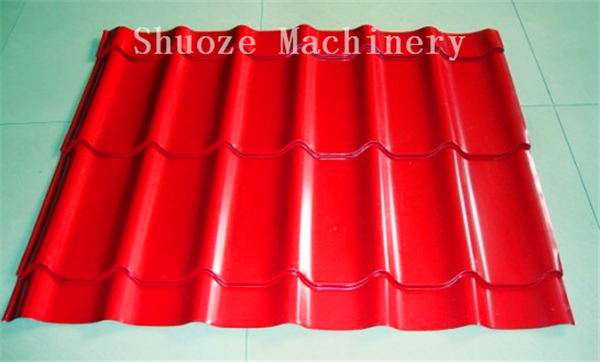

1. profile and size

2. Technical specification

1. Type and specification: 22.3-185-1110

2. Technique parameters of the processing line

(1) Suitable material: Aluminum sheet/Steel/galvanizes sheet/ colored coil

(2) Thickness of the plate :0.3-0.8mm

(3) Input width of the plate: 1250mm

(4) Effective width of the plate: 1110mm

(5) Productivity :1.5-2m/min

(6) Roller steps :14 rows

(7) Roller material: 45# steel Rolling chromium thickness:0.05 mm

(8) Diameter of active shaft: 80mm

(9) Wall thickness of the main forming machine: 16mm steel plate

(10)Main forming machine body : 300mmH steel

(11) Transmission chain is1’’

Reducer is 5.5kw Xingxing Cycloid which works stably and no noise

(12) Cutting hydraulic systerm adpats CDF-10 gear pump，the motor power is 4kw, no noise, work stably, long life expentance

(13) Taida PLC with inverter, easy to operate, high precision and work stably.

(14) Dimensions of major structure:7700mm*1500mm*1500mm

Note： the measurement is an approximation and that in reality there may be a slight diffenrce

（15）Weight: about 4.5 tons

3. Processing technique and deployment

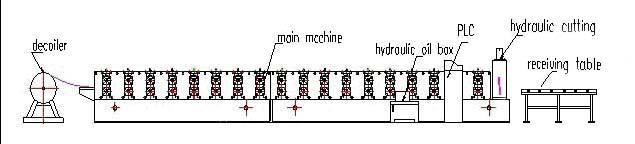

Processes: upgrade maunal decoiler--Roll forming machine—PLC system—Hydraulic system—Mould pressing-- Post cut—set off table

Components of line:

NO

Name

Unit

Qty

1

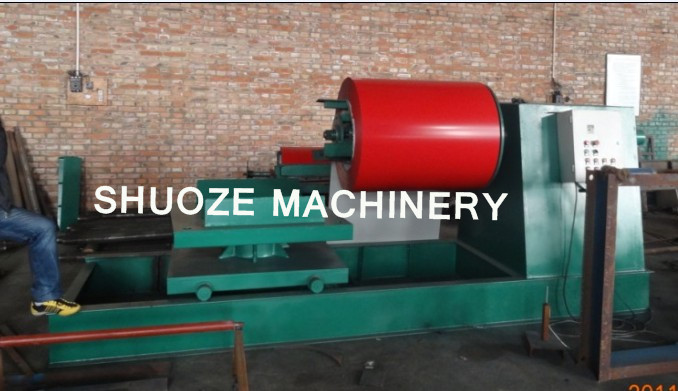

Upgrade manual decoiler

set

1

2

Main machine for roll forming

set

1

3

Control system

set

1

4

Hydraulic system

set

1

5

Mould pressing

set

1

6

Post cut

set

1

7

Set off table

set

4

5 ton auto decoiler with car for optional

Portugues

NO	Name	Unit	Qty
1	Upgrade manual decoiler	set	1
2	Main machine for roll forming	set	1
3	Control system	set	1
4	Hydraulic system	set	1
5	Mould pressing	set	1
6	Post cut	set	1
7	Set off table	set	4
