highway guardrail cold roll forming line
Product Name:
highway guardrail cold roll forming line
No. :
Product Description:

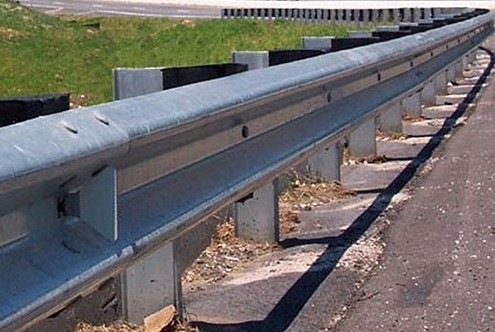

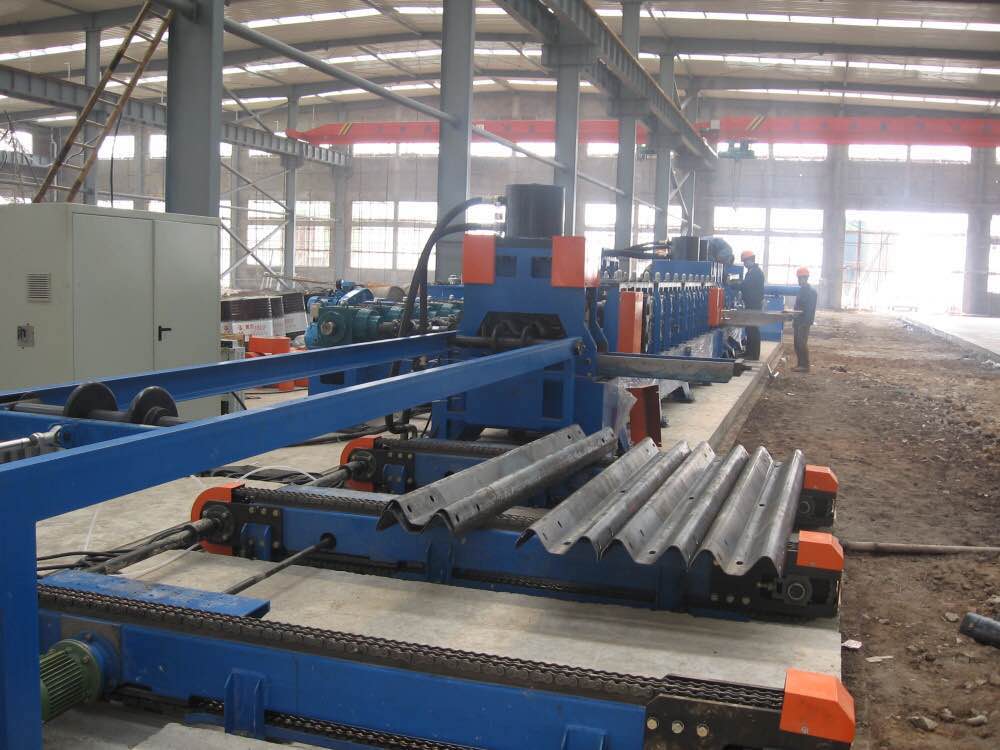

Highway guardrail cold roll forming line

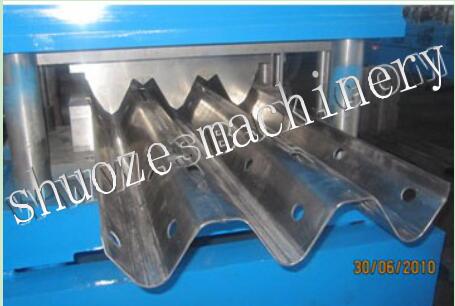

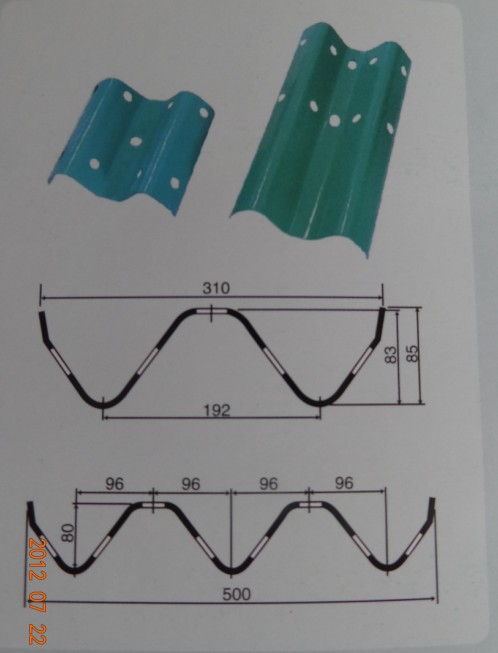

1. profile with size
2. highway guardrail machine line parameters
|
Performances
|
Parameters
|
|
|
Suitable material
|
Q235 or as your need
|
|
|
Material size and thickness
|
Material width:480mm or as your need
Thickness:3mm
|
|
|
Productivity
|
10-15m/min
|
|
|
Roller forming steps
|
15 steps
|
|
|
Roller material
|
Gcr15bearing steel after heating treatment, HRC58-62
|
|
|
Diameter of active shaft
|
Φ95mm
|
|
|
Shaft material
|
45# steel
|
|
|
Main structure
|
400H welded
|
|
|
Main forming Power
|
37KW
|
|
|
Flatten part motor
|
5.5KW
|
|
|
Shear
|
Hydraulic shear, blade material CR12
|
|
|
Hydraulic part
|
15kw, pressure 20MPA
|
|
|
Transmission
|
||
|
Punch
|
Yes. Hydraulic drived punch
|
|
|
Punch and shear material
|
CR12 quenching treatment HRC58-60
|
|
|
Control system
|
Delta PLC computer control system with Delta inverter to ensure precision; Winwen color touch screen.
Program is made by English, working mode: automatic and manual
|
|
|
Voltage
|
380V/3 phase/50hz or as your need
|
|
|
Set off table
|
Two pcs, 5 step roller and adjustable screw, each one is 3000mm long
|
|
|
Size(length*width*height)
|
13500x2700x1600MM
|
|
|
Weight
|
21,000kgs
|
|
|
Component
|
Upgrade manual decoiler-flattenning part-punching part-forming part-shear blade device--hydraulic system-PLC computer control cabinet-set off table
|
|

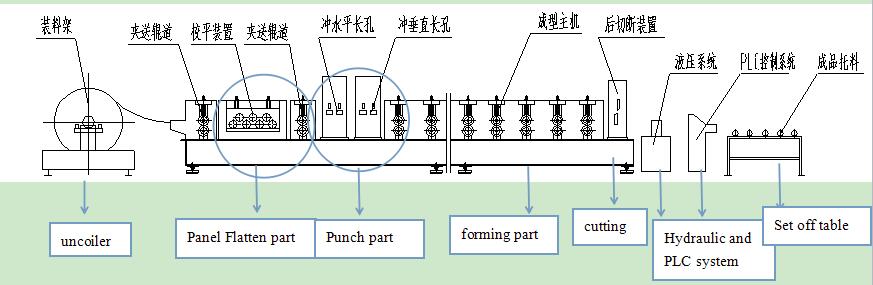

3. Work flow:
Upgrade manual decoiler-flattenning part-punching part-forming part-shear blade device
--hydraulic system-PLC computer control cabinet-set off table

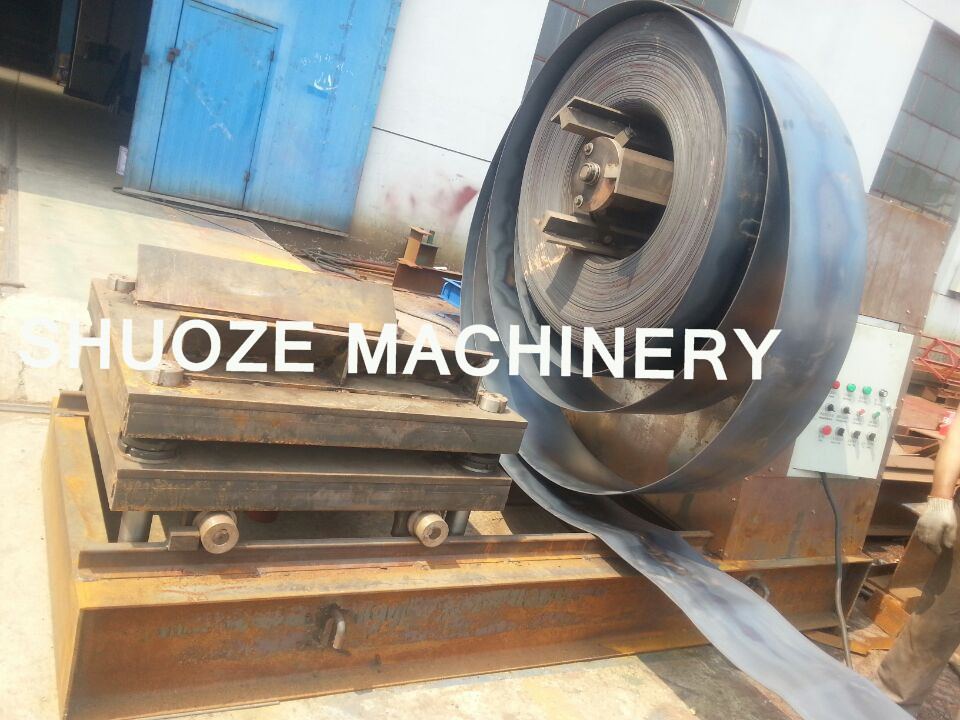

4. Decoiler
--hydraulic system-PLC computer control cabinet-set off table

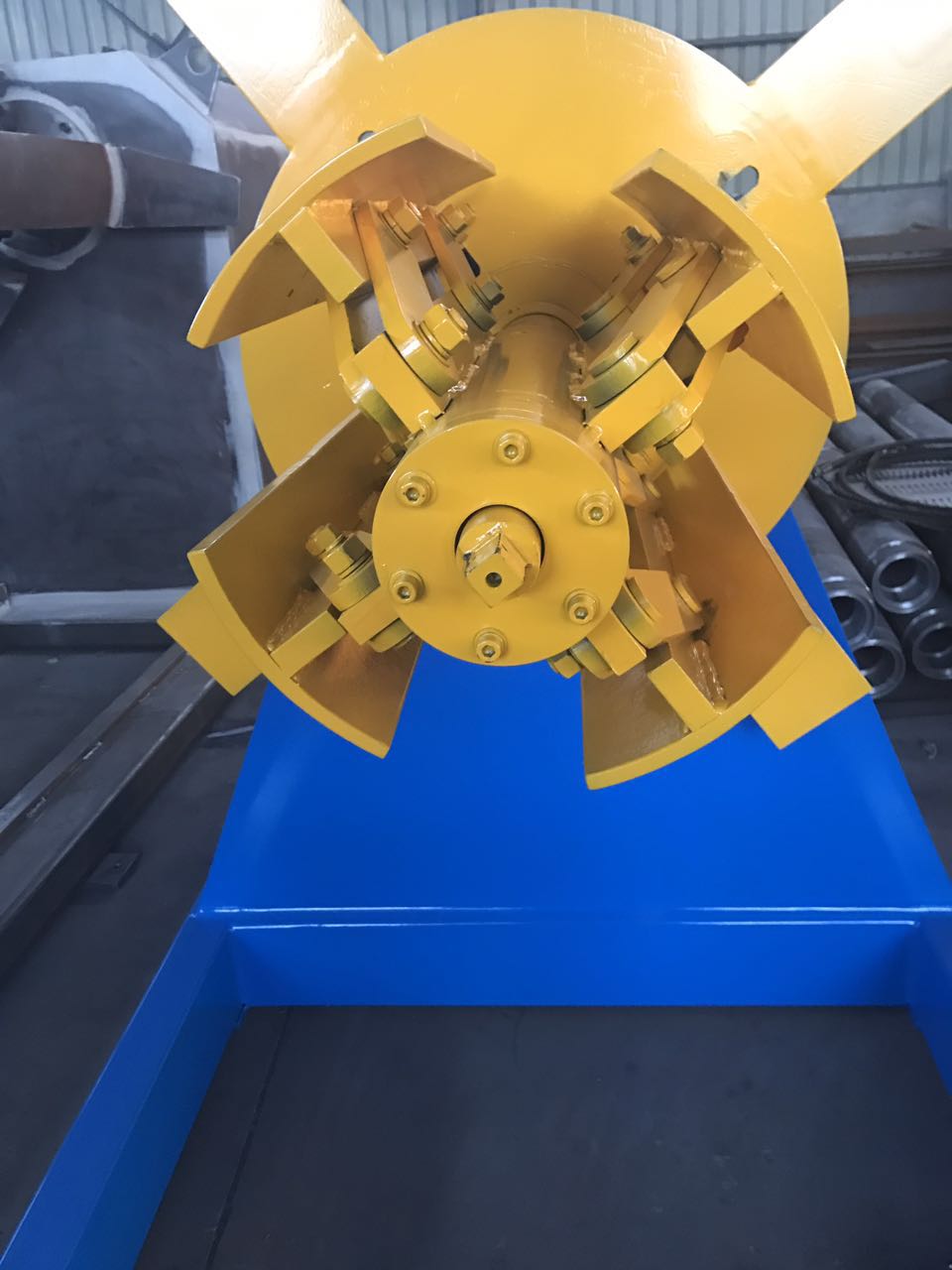

4. Decoiler
Function: support and develop steel coil.
Weight: ≦ 5T or max 10T
or hydraulic decoiler with car for optional
4. Spare parts we bring for you free
or hydraulic decoiler with car for optional
4. Spare parts we bring for you free
1. button, two 2. switch, two 3. relay, two 4. Travel switch: two
5. Contactor: two 6.air switch: two 7. machine paint: one small box
8 . Machine install and operation manual: one

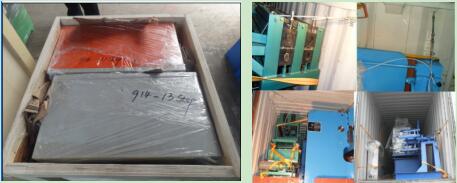

5.Machine package:
5.Machine package:
PLC box and hydraulic pump are put in plywood box
Machines fix well in container well escape any damage during shipment
Other details:
1. Payment term: 30% deposit by TT, balance finish before shipment
2. Warranty: 12 months,during warranty: parts are free but buyer pay for the shipping fee
3. Service: we could send technician to your country to fix the machine.The buyer should bear
all the cost including: visa , Roundtrip ticket and suitable accommodation, also buyer should pay the
salary 80USD/day.
all the cost including: visa , Roundtrip ticket and suitable accommodation, also buyer should pay the
salary 80USD/day.
