28-200-1000 Roll Forming machine
Product Name:
28-200-1000 Roll Forming machine
No. :
Product Description:

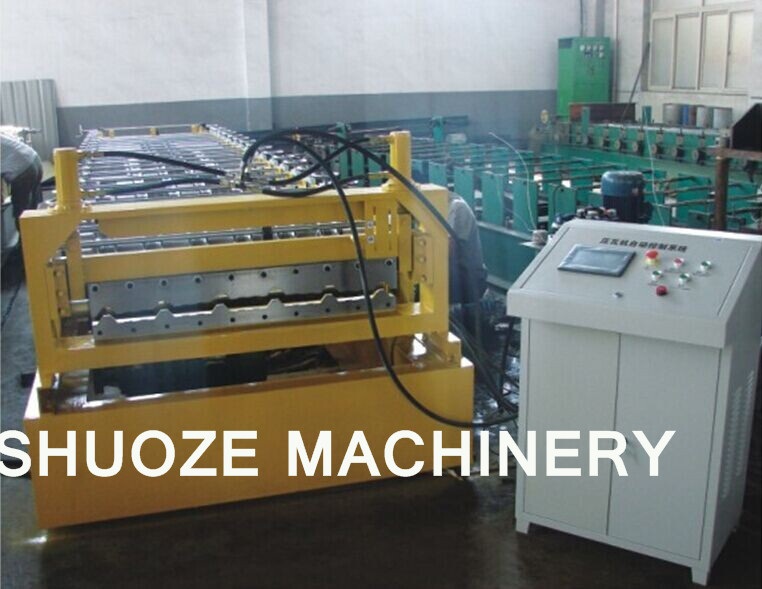

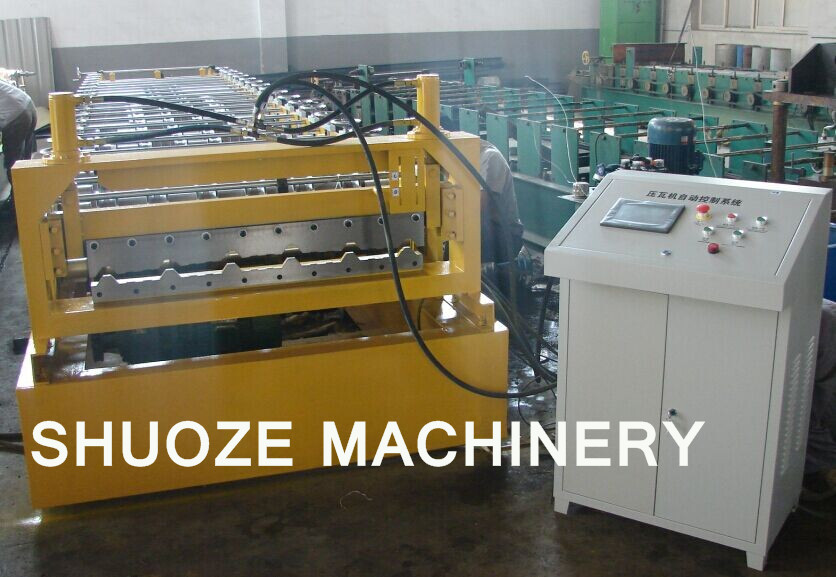

28-200-1000 Roll Forming machine
1. CE and ISO
2. 15 year experience
3. export to USA market
2. 15 year experience
3. export to USA market
1. Profile with size
2.28-200-1000 roll forming machine parameters
2.28-200-1000 roll forming machine parameters
|
Performances
|
Parameters
|
|
|
Suitable material
|
PPGI or galvanized coil
|
|
|
Suitable material
|
Raw material width:1220
thickness 0.3-0.8mm |
|
|
Productivity
|
12-15m/min or max 20m/min
|
|
|
Roller forming steps
|
16 step
|
|
|
Roller material
|
45# after heating treatment and with chromium
|
|
|
Spacer, balance bar, screw
|
All do chromium to ensure beautiful appearance
|
|
|
Diameter of active shaft
|
Φ70mm
|
|
|
Main machine structure
|
350H
|
|
|
Wall plate
|
16mm
|
|
|
Power
|
5.5KW main motor,cycloidal reducer work stable and no noise
|
|
|

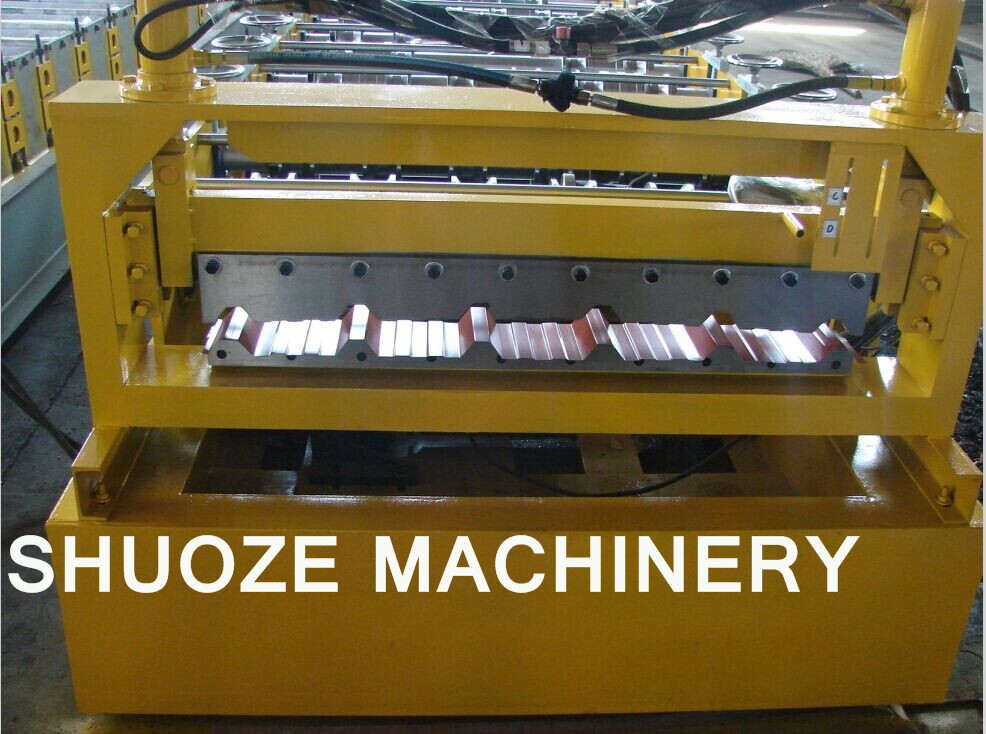

Shear
|
Hydraulic shear, blade material CR12
|
|
|
Transmission
|
1’’ gear chain
|
|
|
Control system
|
Delta PLC computer control system with Chrizi inverter to ensure precision; Winwen color touch screen.
Program is made by English, working mode: automatic and manual
|
|
|
Hydraulic system
|
4kw hydraulic motor
|
|
|
Voltage
|
AC380V/50HZ/3 phase
|
|
|
Upgrade manual decoiler
|
Max loading weight:5000kgs,Inner Diameter:508-610mm,max coil width:1250mm
|
|
|
Set off table
|
one pcs, 6 step roller, each is 3000mm long
|
|
|
Size(length*width*height)
|
8000*1500*1500MM
|
|
|
Weight
|
6500kgs
|
|
|
Component
|
Upgrade manual decoiler-guide feeding-forming part-shear blade device--hydraulic system-PLC computer control cabinet-set off table
|
|
