828 glazed tile roll forming machine
Product Name:
828 glazed tile roll forming machine
No. :
Product Description:
828 glazed tile roll forming machine
1. CE and ISO certification
2. Export to India
3. we are factory and manufacture customer need machine
4. 12 month warranty
1. Profile with size
2. machine parameters
3. machine components

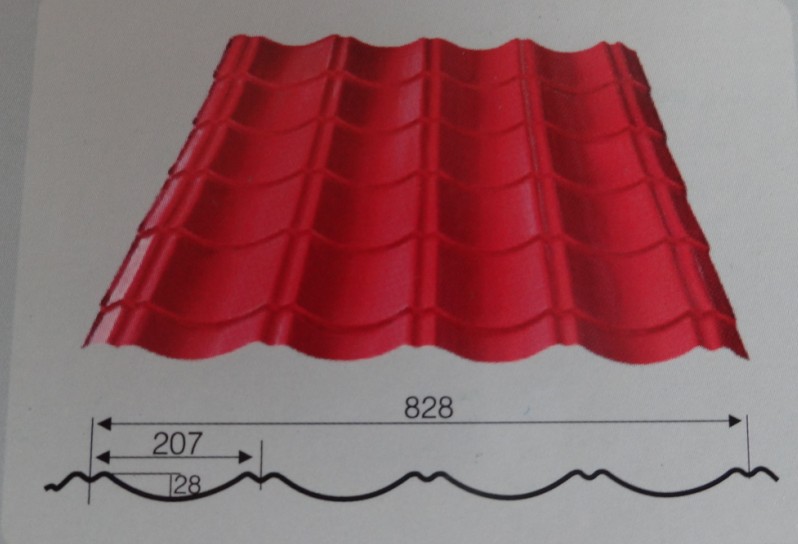

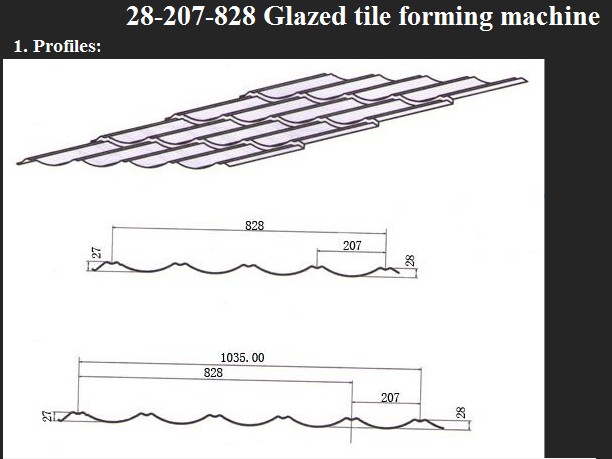

1. Profile with size
1 This roll forming machine can roll forming metal panel which is mostly used with colorful roofing tile sheets.
After roll formed by this roll forming machine, the surface will be very smooth and beautiful without any scratch on surface.
After roll formed by this roll forming machine, the surface will be very smooth and beautiful without any scratch on surface.
2 we also can do a custom roll forming machine, We can design the machine according to your specification and profile
drawing.
2. machine parameters
|
No.
|
main parameter of roll forming machine
|
|
|
1
|
Suitable to process
|
Color steel plate/PPGI/galvanized sheet
|
|
2
|
Width of the plate
|
1000/1200mm
|
|
3
|
Rollers
|
13 rows
|
|
4
|
Dimensions
|
7000mm*1550mm*1510mm
|
|
5
|
Power
|
3+3kw
|
|
6
|
Thickness of the plate
|
0.3-0.8mm
|
|
7
|
Productivity
|
8-12m/min
|
|
8
|
Diameter of the roller
|
Φ70mm
|
|
9
|
Weight
|
About 4000kgs
|
|
10
|
Voltage
|
220V 60Hz single phase/380v 50hz 3phase
|
|
11
|
Material of the cutting plate
|
Cr12
|
|
12
|
Hydraulic
|
40# oil
|
|
13
|
Processing precision
|
Within 1.00mm
|
|
14
|
Control system
|
Delta PLC control
|
|
15
|
Whole machine work line
|
Uncoiler-roll forming machine part-hydraulic press part-hydraulic cutting device-set off table
|
|
Machine components of Glazed Tile Roll Forming Machines
|
||||
|
No.
|
Name
|
Note
|
Set
|
|
|
1
|
Decoiler
|
Manual (Hydraulic for optional)
Loading weight: 5 -10 Ton
Max suitable coil width:1250mm
|
1
|
|
|
2
|
Feeding device
|
To guide coil into machine
|
1
|
|
|
3
|
Main roll forming
|
13 steps to form the desired profile
|
1
|
|
|
4
|
Hydraulic cut
|
Cut the desired length automatically
|
1
|
|
|
5
|
Hydraulic system
|
Provide power to cutting
|
1
|
|
|
6
|
PLC control box
|
All program is setted in it and it control the whole machine working automatically
|
1
|
|
|
7
|
Set off table
|
Get the formed panel which come out of the machine
|
6 meters
|
|
|
8
|
Machine legs
|
Added on machine to increase machine height for tall workers
|
4
|
|
