1. CE and ISO certification
2. Export from 19983. we are factory
Raw material used on this machine: galvanized coil, colored coil, aluminium coil
raw material thickness:26-29 guage
raw material width before forming:1000 and 1200mm

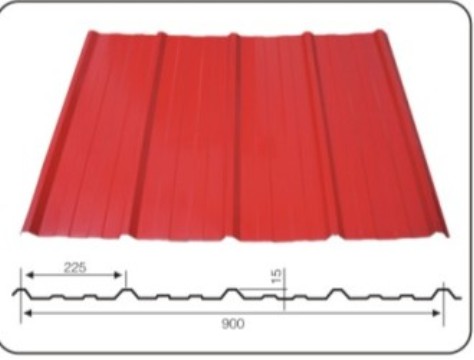

panel usage: all kinds of houes roof of farm or residential house.
machine parameters
|
No. |
main parameter |
|
|
1 |
working mode |
fully automatic |
|
2 |
Cutting type |
stop and go on |
|
3 |
Rollers |
13 rows |
|
4 |
Dimensions |
7000mm*1550mm*1510mm |
|
5 |
Power |
3+3kw |
|
6 |
Thickness of the plate |
0.3-0.8mm |
|
7 |
Productivity |
max speed is up to 20m/min |
|
8 |
Diameter of the roller |
Φ70mm |
|
9 |
Weight |
About 4000kgs |
|
10 |
Voltage |
220V 60Hz single phase or 380V,50HZ,3 phase |
|
11 |
Material of the cutting plate |
Cr12 |
|
12 |
Hydraulic |
40# oil |
|
13 |
Processing precision |
Within 1.00mm |
|
14 |
Control system |
Delta PLC computer control system |
|
Machine components |
|||
|
No. |
Name |
Note |
Set |
|
1 |
Decoiler |
Manual (Hydraulic for optional) Loading weight: 5 -10 Ton Max suitable coil width:1250mm |
1 |
|
2 |
Feeding device |
To guide coil into machine |
1 |
|
3 |
Main roll forming |
13 steps to form the desired profile |
1 |
|
4 |
Hydraulic cut |
Cut the desired length automatically |
1 |
|
5 |
Hydraulic system |
Provide power to cutting |
1 |
|
6 |
PLC control box |
All program is setted in it and it control the whole machine working automatically |
1 |
|
7 |
Set off table |
Get the formed panel which come out of the machine |
6 meters |
|
8 |
Machine legs |
Added on machine to increase machine height for tall workers |
4 |
Machine package and loading:
before machine loading into container, we package it well and fix stronger enough to ensure machine no damage during shipment at sea.
