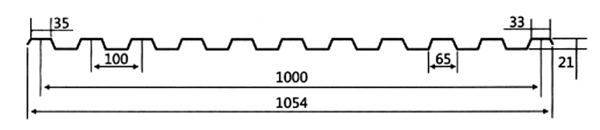

profile with size:
Raw material is 1250mm
material thickness:0.3-0.8mm
machine parameters
|
Performances |
Parameters |
|
|
Suitable material |
PPGI or galvanized coil |
|
|
Suitable material |
Raw material width:1250mm thickness 0.3-0.8mm |
|
|
Productivity |
12-15m/min |
|
|
Roller forming steps |
17 steps forming |
|
|
Roller material |
45# after heating treatment and with chromium |
|
|
Spacer, balance bar, screw |
All do chromium to ensure beautiful appearance |
|
|
Diameter of active shaft |
Φ70mm |
|
|
Main machine structure |
350H |
|
|
Wall plate |
16mm |
|
|
Power |
5.5KW main motor,cycloidal reducer work stable and no noise |
|
|
Shear |
Hydraulic shear, blade material CR12 |
|
|
Transmission |
1’’ gear chain |
|
|
Control system |
Delta PLC computer control system with Chrizi inverter to ensure precision; Winwen color touch screen. Program is made by English, working mode: automatic and manual |
|
|
Hydraulic system |
4kw hydraulic motor |
|
|
Voltage |
AC380V/50HZ/3 phase |
|
|
Upgrade manual decoiler |
Max loading weight:5000kgs,Inner Diameter:508-610mm,max coil width:1250mm |
|
|
Set off table |
one pcs, 6 step roller, each is 3000mm long |
|
|
Size(length*width*height) |
8000*1500*1500MM |
|
|
Weight |
6500kgs |
|
|
Component |
Upgrade manual decoiler-guide feeding-forming part-shear blade device--hydraulic system-PLC computer control cabinet-set off table |
|
