1. CE and ISO
2. 15 years exporting experience
3. fully automatic working

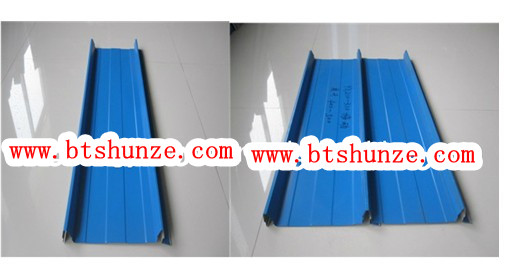

1. This self lock roll forming machine can roll forming metal panel which is mostly used with colorful roofing tile sheets.
After roll formed by this roll forming machine,the surface will be very smooth and beautiful without any scratch on surface.
2 .we also can do a custom roll forming machine, We can design the machine according to your specification and profile drawing.
3. One roll forming machine only can produce one profile. The following profile drawing are some examples for your reference.

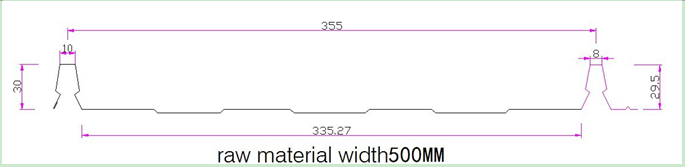

A profile with size
all the sizes can be changed and we design machine totally as your panel drawing.
|
Wave height |
30mm |
|
Wave length |
355mm |
|
Cover width |
335mm |
|
Coil width |
500mm |
|
Thickness of material plate |
0.3-0.8mm |
B parameters of self lock Roof panel making machine
|
No. |
main parameter of self lock roll forming machine |
|
|
1 |
Suitable to process |
Color steel plate |
|
2 |
Width of raw material |
500mm |
|
3 |
Rollers |
18-20rows |
|
4 |
Dimensions |
7000mm*1550mm*1510mm |
|
5 |
Power |
4+3kw |
|
6 |
Thickness of the plate |
0.3-0.8mm |
|
7 |
Productivity |
8-12m/min |
|
8 |
Diameter of the roller |
Φ65mm |
|
9 |
Weight |
About 4000kgs |
|
10 |
Voltage |
380V 50Hz 3 phase or as your need |
|
11 |
Material of the cutting plate |
Cr12 |
|
12 |
Hydraulic |
40# oil |
|
13 |
Processing precision |
Within 1.00mm |
|
14 |
Control system |
Delta PLC computer control system with Chrizi inverter to ensure precision; Winwen color touch screen. Program is made by English, working mode: automatic and manual |
|
15 |
Component |
Uncoiler--Entry Feed up Scissor table--Rear cutter--Entry Guide--Roll forming machine--stop and go hydraulic shearing device--hydaulic system-PLC computer control system--set off table
|
