Performances |
Parameters |
Best quality, best price |
|
Suitable material |
galvanized coil/ colored coil |
|
|
Material size and thickness |
Raw material width:1220mm or as your need Thickness:0.35-0.7mm |
|
|
Productivity |
15-20m/min |
|
|

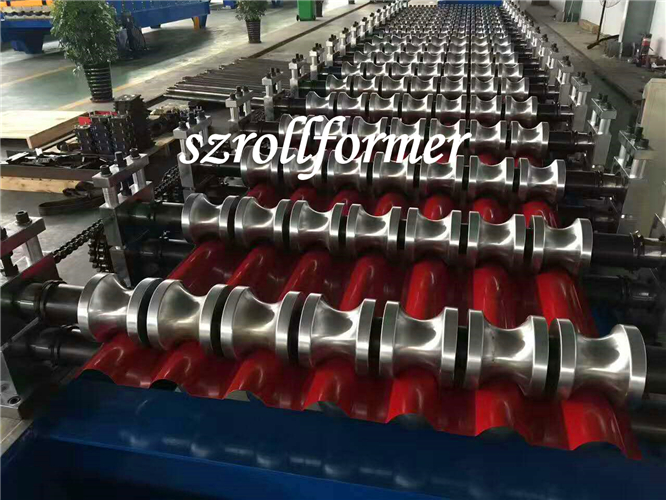

Roller forming steps |
14 steps |
|
|
Roller material |
45# after heating treatment and with chromium |
|
|
Diameter of active shaft |
Φ70mm |
|
|
Main machine structure |
350H |
|
|
Wall plate |
16mm |
|
|
Power |
5.5KW main motor,cycloidal reducer work stable and no noise |
|
|

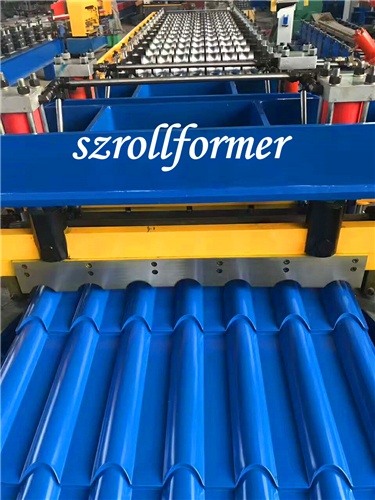

Shear |
Hydraulic shear, blade material CR12 |
|
|
Transmission |
1’’ chain hanging inside of main structure |
|
|
Control system |
Delta PLC computer control system with Delta inverter to ensure precision; Winwen color touch screen. Program is made by English, working mode: automatic and manual |
|
|
Hydraulic system |
3kw hydraulic motor and large oil pump |
|
|
Voltage |
440V/3 phase/60hz |
|
|
Set off table |
Two pcs, 5 step roller and adjustable screw, each is 3000mm long |
|
|
Size(length*width*height) |
7500*1400*1500MM |
|
|
Weight |
4000kgs |
|
|
Component |
Upgrade manual decoiler-forming part-shear blade device--hydraulic system-PLC computer control cabinet-set off table |
|
